Electrical Characteristics—MAX6007. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. Electrical Characteristics—MAX6008
Modelllinie für dieses Datenblatt
Textversion des Dokuments

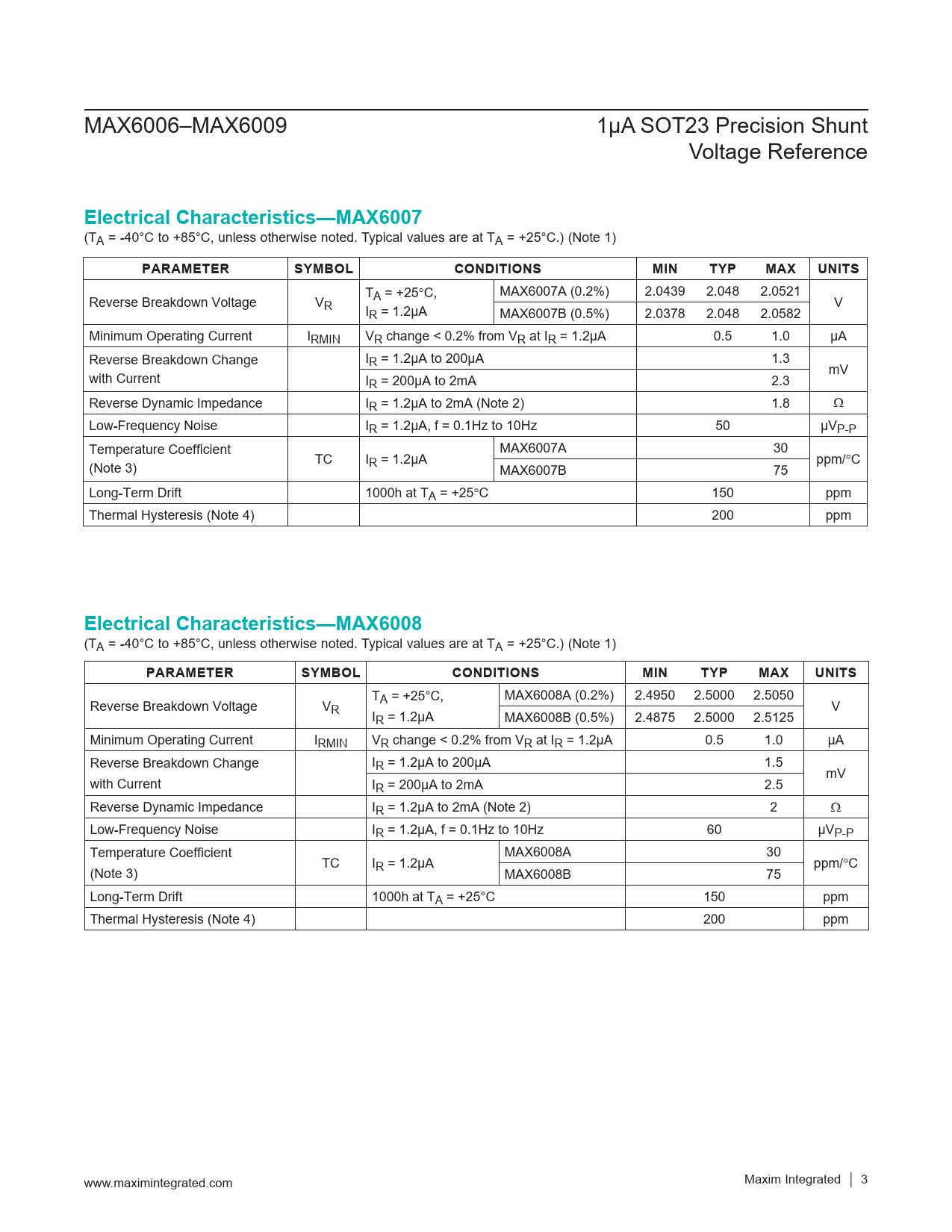

MAX6006–MAX6009 1µA SOT23 Precision Shunt Voltage Reference
Electrical Characteristics—MAX6007
(TA = -40°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
T MAX6007A (0.2%) 2.0439 2.048 2.0521 Reverse Breakdown Voltage V A = +25°C, R V IR = 1.2µA MAX6007B (0.5%) 2.0378 2.048 2.0582 Minimum Operating Current IRMIN VR change < 0.2% from VR at IR = 1.2µA 0.5 1.0 µA Reverse Breakdown Change IR = 1.2µA to 200µA 1.3 mV with Current IR = 200µA to 2mA 2.3 Reverse Dynamic Impedance IR = 1.2µA to 2mA (Note 2) 1.8 W Low-Frequency Noise IR = 1.2µA, f = 0.1Hz to 10Hz 50 µVP-P Temperature Coefficient MAX6007A 30 TC I ppm/°C (Note 3) R = 1.2µA MAX6007B 75 Long-Term Drift 1000h at TA = +25°C 150 ppm Thermal Hysteresis (Note 4) 200 ppm
Electrical Characteristics—MAX6008
(TA = -40°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
T MAX6008A (0.2%) 2.4950 2.5000 2.5050 Reverse Breakdown Voltage V A = +25°C, R V IR = 1.2µA MAX6008B (0.5%) 2.4875 2.5000 2.5125 Minimum Operating Current IRMIN VR change < 0.2% from VR at IR = 1.2µA 0.5 1.0 µA Reverse Breakdown Change IR = 1.2µA to 200µA 1.5 mV with Current IR = 200µA to 2mA 2.5 Reverse Dynamic Impedance IR = 1.2µA to 2mA (Note 2) 2 W Low-Frequency Noise IR = 1.2µA, f = 0.1Hz to 10Hz 60 µVP-P Temperature Coefficient MAX6008A 30 TC I ppm/°C (Note 3) R = 1.2µA MAX6008B 75 Long-Term Drift 1000h at TA = +25°C 150 ppm Thermal Hysteresis (Note 4) 200 ppm www.maximintegrated.com Maxim Integrated │ 3
Electrical Characteristics—MAX6007
(TA = -40°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
T MAX6007A (0.2%) 2.0439 2.048 2.0521 Reverse Breakdown Voltage V A = +25°C, R V IR = 1.2µA MAX6007B (0.5%) 2.0378 2.048 2.0582 Minimum Operating Current IRMIN VR change < 0.2% from VR at IR = 1.2µA 0.5 1.0 µA Reverse Breakdown Change IR = 1.2µA to 200µA 1.3 mV with Current IR = 200µA to 2mA 2.3 Reverse Dynamic Impedance IR = 1.2µA to 2mA (Note 2) 1.8 W Low-Frequency Noise IR = 1.2µA, f = 0.1Hz to 10Hz 50 µVP-P Temperature Coefficient MAX6007A 30 TC I ppm/°C (Note 3) R = 1.2µA MAX6007B 75 Long-Term Drift 1000h at TA = +25°C 150 ppm Thermal Hysteresis (Note 4) 200 ppm
Electrical Characteristics—MAX6008
(TA = -40°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
T MAX6008A (0.2%) 2.4950 2.5000 2.5050 Reverse Breakdown Voltage V A = +25°C, R V IR = 1.2µA MAX6008B (0.5%) 2.4875 2.5000 2.5125 Minimum Operating Current IRMIN VR change < 0.2% from VR at IR = 1.2µA 0.5 1.0 µA Reverse Breakdown Change IR = 1.2µA to 200µA 1.5 mV with Current IR = 200µA to 2mA 2.5 Reverse Dynamic Impedance IR = 1.2µA to 2mA (Note 2) 2 W Low-Frequency Noise IR = 1.2µA, f = 0.1Hz to 10Hz 60 µVP-P Temperature Coefficient MAX6008A 30 TC I ppm/°C (Note 3) R = 1.2µA MAX6008B 75 Long-Term Drift 1000h at TA = +25°C 150 ppm Thermal Hysteresis (Note 4) 200 ppm www.maximintegrated.com Maxim Integrated │ 3
