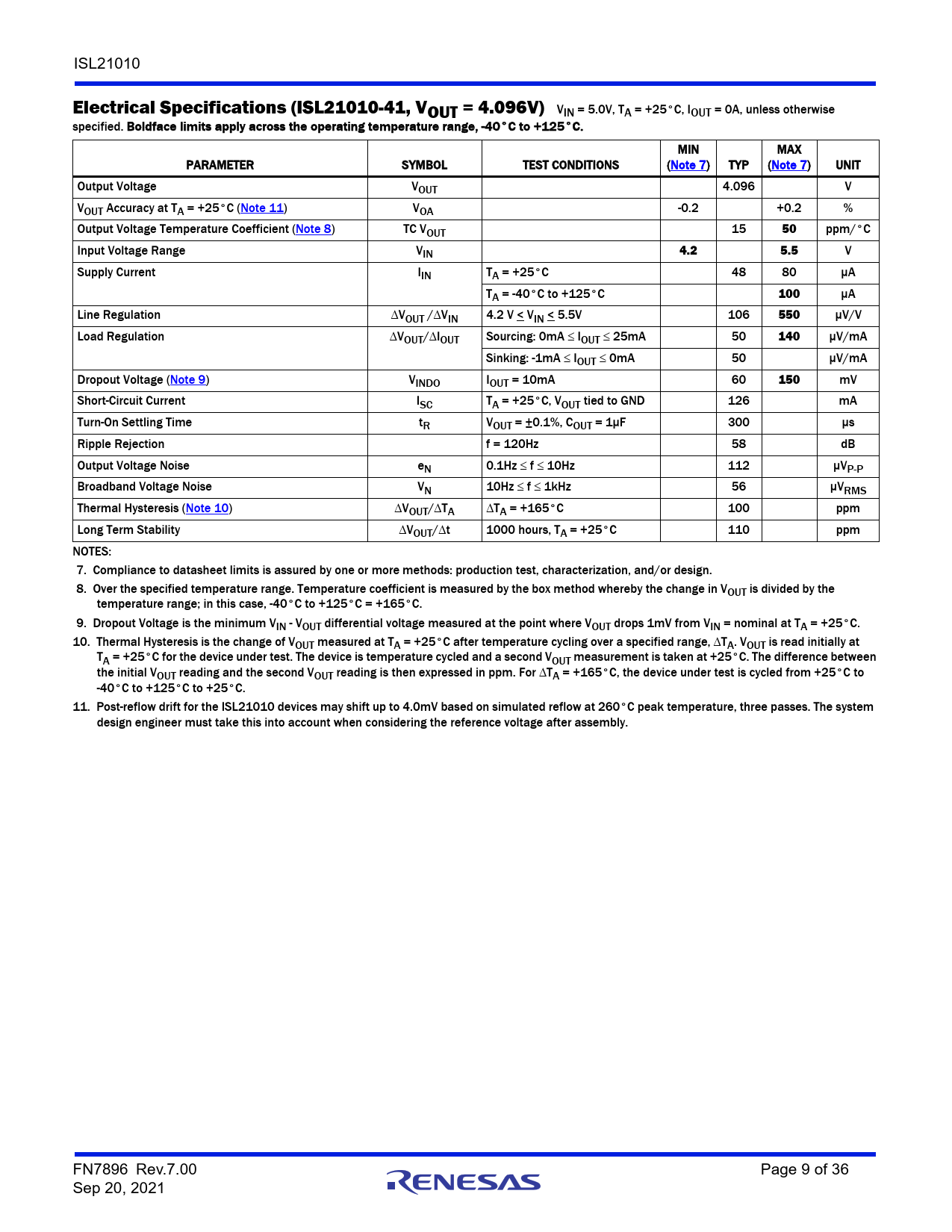

link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 link to page 9 ISL21010 Electrical Specifications (ISL21010-41, VOUT = 4.096V) VIN = 5.0V, TA = +25°C, IOUT = 0A, unless otherwise specified. Boldface limits apply across the operating temperature range, -40°C to +125°C. MIN MAX PARAMETER SYMBOL TEST CONDITIONS (Note 7) TYP (Note 7) UNIT Output Voltage VOUT 4.096 V VOUT Accuracy at TA = +25°C (Note 11) VOA -0.2 +0.2 % Output Voltage Temperature Coefficient (Note 8) TC VOUT 15 50 ppm/°C Input Voltage Range VIN 4.2 5.5 V Supply Current IIN TA = +25°C 48 80 µA TA = -40°C to +125°C 100 µA Line Regulation VOUT /VIN 4.2 V < VIN < 5.5V 106 550 µV/V Load Regulation VOUT/IOUT Sourcing: 0mA  IOUT  25mA 50 140 µV/mA Sinking: -1mA  IOUT 0mA 50 µV/mA Dropout Voltage (Note 9) VINDO IOUT = 10mA 60 150 mV Short-Circuit Current ISC TA = +25°C, VOUT tied to GND 126 mA Turn-On Settling Time tR VOUT = ±0.1%, COUT = 1μF 300 µs Ripple Rejection f = 120Hz 58 dB Output Voltage Noise eN 0.1Hz  f 10Hz 112 µVP-P Broadband Voltage Noise VN 10Hz  f 1kHz 56 µVRMS Thermal Hysteresis (Note 10) VOUT/TA TA = +165°C 100 ppm Long Term Stability VOUT/t 1000 hours, TA = +25°C 110 ppm NOTES: 7. Compliance to datasheet limits is assured by one or more methods: production test, characterization, and/or design. 8. Over the specified temperature range. Temperature coefficient is measured by the box method whereby the change in VOUT is divided by the temperature range; in this case, -40°C to +125°C = +165°C. 9. Dropout Voltage is the minimum VIN - VOUT differential voltage measured at the point where VOUT drops 1mV from VIN = nominal at TA = +25°C. 10. Thermal Hysteresis is the change of VOUT measured at TA = +25°C after temperature cycling over a specified range, TA. VOUT is read initially at TA = +25°C for the device under test. The device is temperature cycled and a second VOUT measurement is taken at +25°C. The difference between the initial VOUT reading and the second VOUT reading is then expressed in ppm. For TA = +165°C, the device under test is cycled from +25°C to -40°C to +125°C to +25°C. 11. Post-reflow drift for the ISL21010 devices may shift up to 4.0mV based on simulated reflow at 260°C peak temperature, three passes. The system design engineer must take this into account when considering the reference voltage after assembly. FN7896 Rev.7.00 Page 9 of 36 Sep 20, 2021 Document Outline Applications Features Related Literature Typical Application Circuit Pin Configuration Pin Descriptions Ordering Information Absolute Maximum Ratings Thermal Information Recommended Operating Conditions Electrical Specifications (ISL21010-10, VOUT = 1.024V) Electrical Specifications (ISL21010-12, VOUT = 1.25V) Electrical Specifications (ISL21010-15, VOUT = 1.5V) Electrical Specifications (ISL21010-20, VOUT = 2.048V) Electrical Specifications (ISL21010-25, VOUT = 2.5V) Electrical Specifications (ISL21010-30, VOUT = 3.0V) Electrical Specifications (ISL21010-33, VOUT = 3.3V) Electrical Specifications (ISL21010-41, VOUT = 4.096V) Typical Performance Characteristics Curves (VOUT = 1.024V) Typical Performance Characteristics Curves (VOUT = 1.25V) Typical Performance Characteristics Curves (VOUT = 1.5V) Typical Performance Characteristics Curves (VOUT = 2.048V) Typical Performance Characteristics Curves (VOUT = 2.5V) Typical Performance Characteristics Curves (VOUT = 3.0V) Typical Performance Characteristics Curves (VOUT = 3.3V) Typical Performance Characteristics Curves (VOUT = 4.096V) Applications Information Micropower Operation Board Mounting Considerations Board Assembly Considerations Noise Performance and Reduction Revision History Package Outline Drawing
