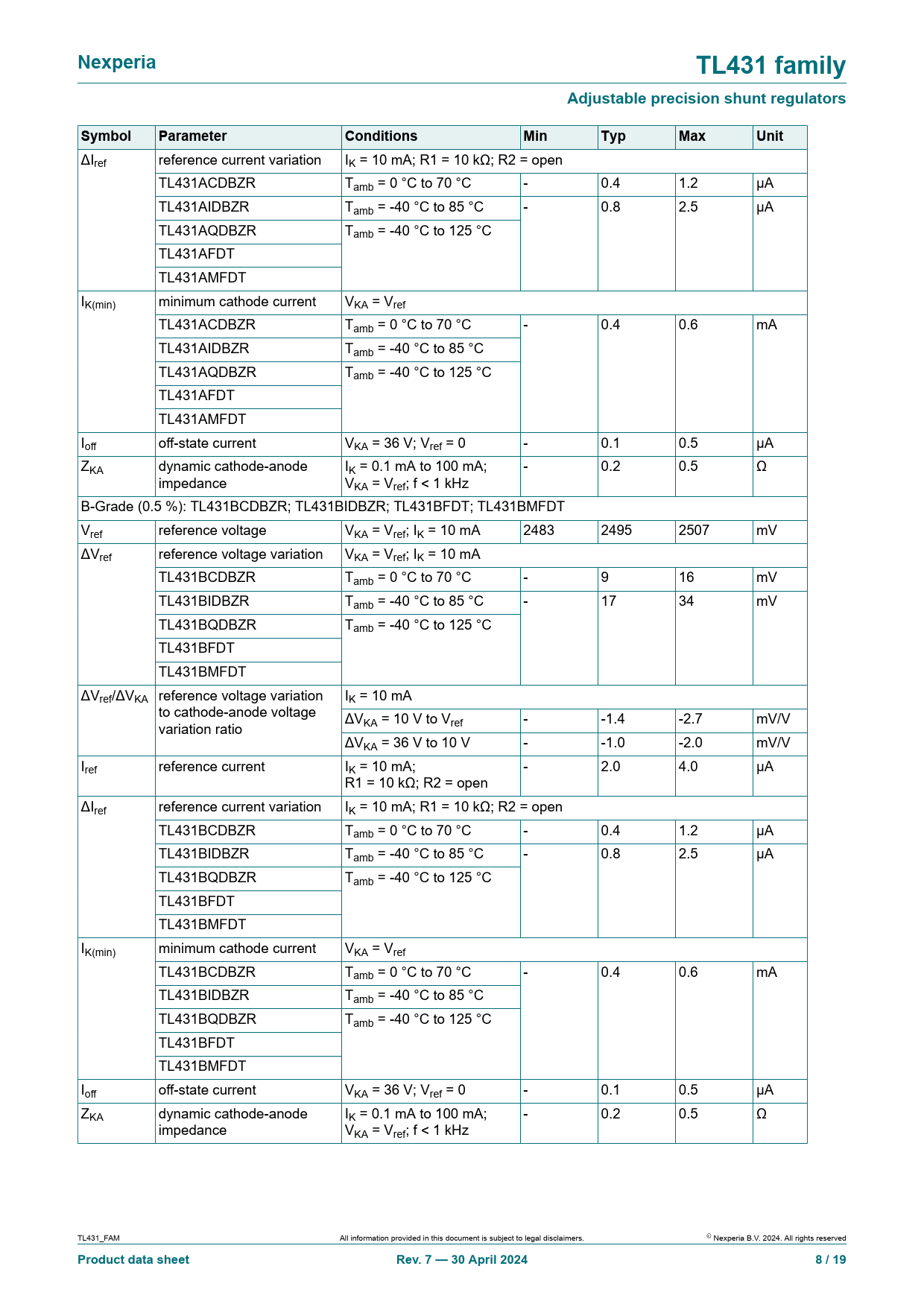

Nexperia TL431 family Adjustable precision shunt regulators Symbol Parameter Conditions Min Typ Max Unit
ΔIref reference current variation IK = 10 mA; R1 = 10 kΩ; R2 = open TL431ACDBZR Tamb = 0 °C to 70 °C - 0.4 1.2 μA TL431AIDBZR Tamb = -40 °C to 85 °C - 0.8 2.5 μA TL431AQDBZR Tamb = -40 °C to 125 °C TL431AFDT TL431AMFDT IK(min) minimum cathode current VKA = Vref TL431ACDBZR Tamb = 0 °C to 70 °C - 0.4 0.6 mA TL431AIDBZR Tamb = -40 °C to 85 °C TL431AQDBZR Tamb = -40 °C to 125 °C TL431AFDT TL431AMFDT Iof of -state current VKA = 36 V; Vref = 0 - 0.1 0.5 μA ZKA dynamic cathode-anode IK = 0.1 mA to 100 mA; - 0.2 0.5 Ω impedance VKA = Vref; f < 1 kHz B-Grade (0.5 %): TL431BCDBZR; TL431BIDBZR; TL431BFDT; TL431BMFDT Vref reference voltage VKA = Vref; IK = 10 mA 2483 2495 2507 mV ΔVref reference voltage variation VKA = Vref; IK = 10 mA TL431BCDBZR Tamb = 0 °C to 70 °C - 9 16 mV TL431BIDBZR Tamb = -40 °C to 85 °C - 17 34 mV TL431BQDBZR Tamb = -40 °C to 125 °C TL431BFDT TL431BMFDT ΔVref/ΔVKA reference voltage variation IK = 10 mA to cathode-anode voltage ΔVKA = 10 V to Vref - -1.4 -2.7 mV/V variation ratio ΔVKA = 36 V to 10 V - -1.0 -2.0 mV/V Iref reference current IK = 10 mA; - 2.0 4.0 μA R1 = 10 kΩ; R2 = open ΔIref reference current variation IK = 10 mA; R1 = 10 kΩ; R2 = open TL431BCDBZR Tamb = 0 °C to 70 °C - 0.4 1.2 μA TL431BIDBZR Tamb = -40 °C to 85 °C - 0.8 2.5 μA TL431BQDBZR Tamb = -40 °C to 125 °C TL431BFDT TL431BMFDT IK(min) minimum cathode current VKA = Vref TL431BCDBZR Tamb = 0 °C to 70 °C - 0.4 0.6 mA TL431BIDBZR Tamb = -40 °C to 85 °C TL431BQDBZR Tamb = -40 °C to 125 °C TL431BFDT TL431BMFDT Iof of -state current VKA = 36 V; Vref = 0 - 0.1 0.5 μA ZKA dynamic cathode-anode IK = 0.1 mA to 100 mA; - 0.2 0.5 Ω impedance VKA = Vref; f < 1 kHz TL431_FAM All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2024. Al rights reserved
Product data sheet Rev. 7 — 30 April 2024 8 / 19
