Datasheet TL431ACDBZR (Nexperia) - 4

HerstellerNexperia
BeschreibungAdjustable precision shunt regulator in SOT23 package
Seiten / Seite19 / 4 — Nexperia. TL431 family. Adjustable precision shunt regulators. 8. …
Dateiformat / GrößePDF / 368 Kb
DokumentenspracheEnglisch

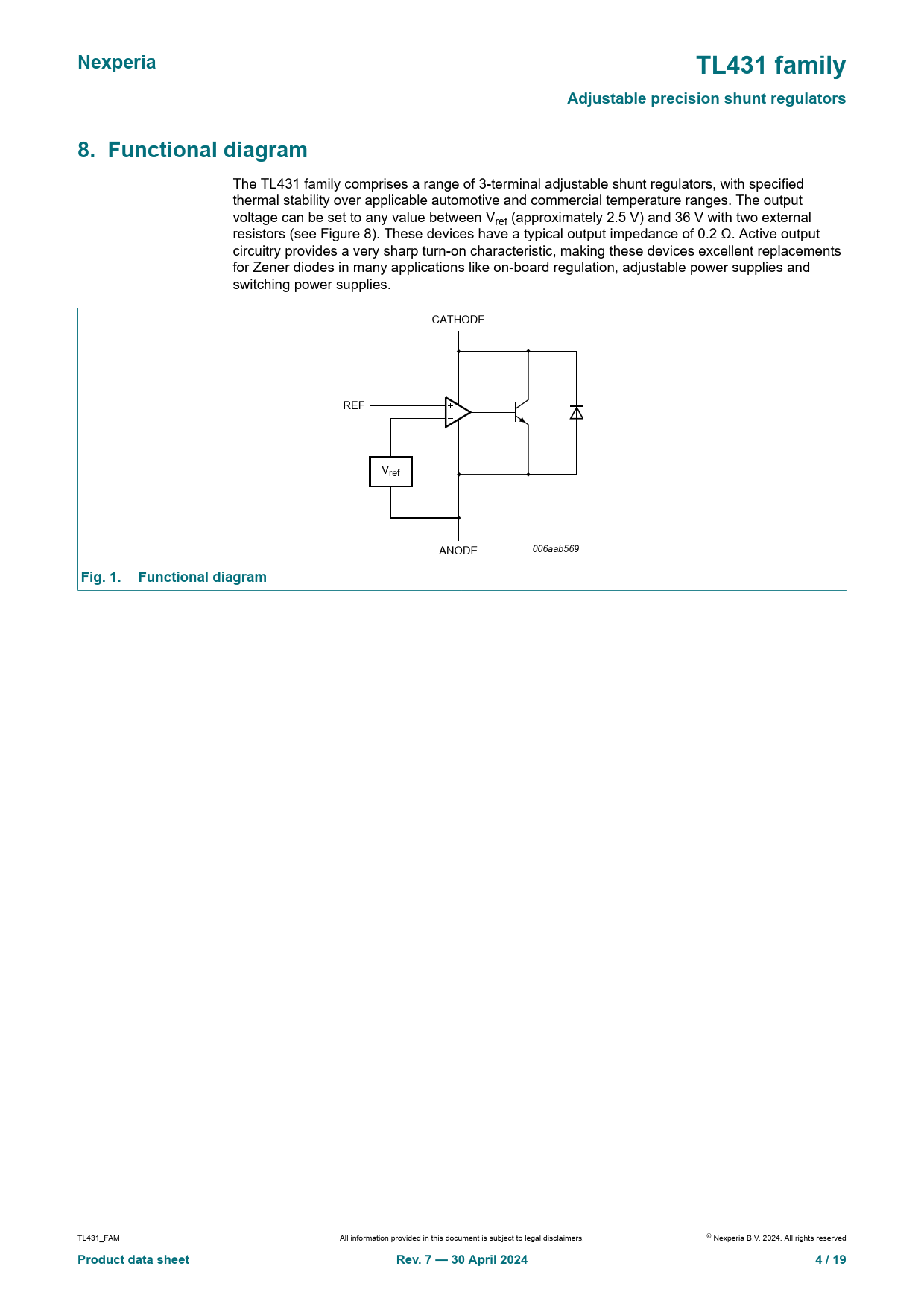

Nexperia. TL431 family. Adjustable precision shunt regulators. 8. Functional diagram. Fig. 1. Functional diagram

Nexperia TL431 family Adjustable precision shunt regulators 8 Functional diagram Fig 1 Functional diagram

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Nexperia TL431 family Adjustable precision shunt regulators 8. Functional diagram
The TL431 family comprises a range of 3-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive and commercial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V with two external resistors (see Figure 8). These devices have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications like on-board regulation, adjustable power supplies and switching power supplies. CATHODE REF Vref ANODE 006aab569
Fig. 1. Functional diagram
