Datasheet IKCM15F60GA (Infineon) - 9

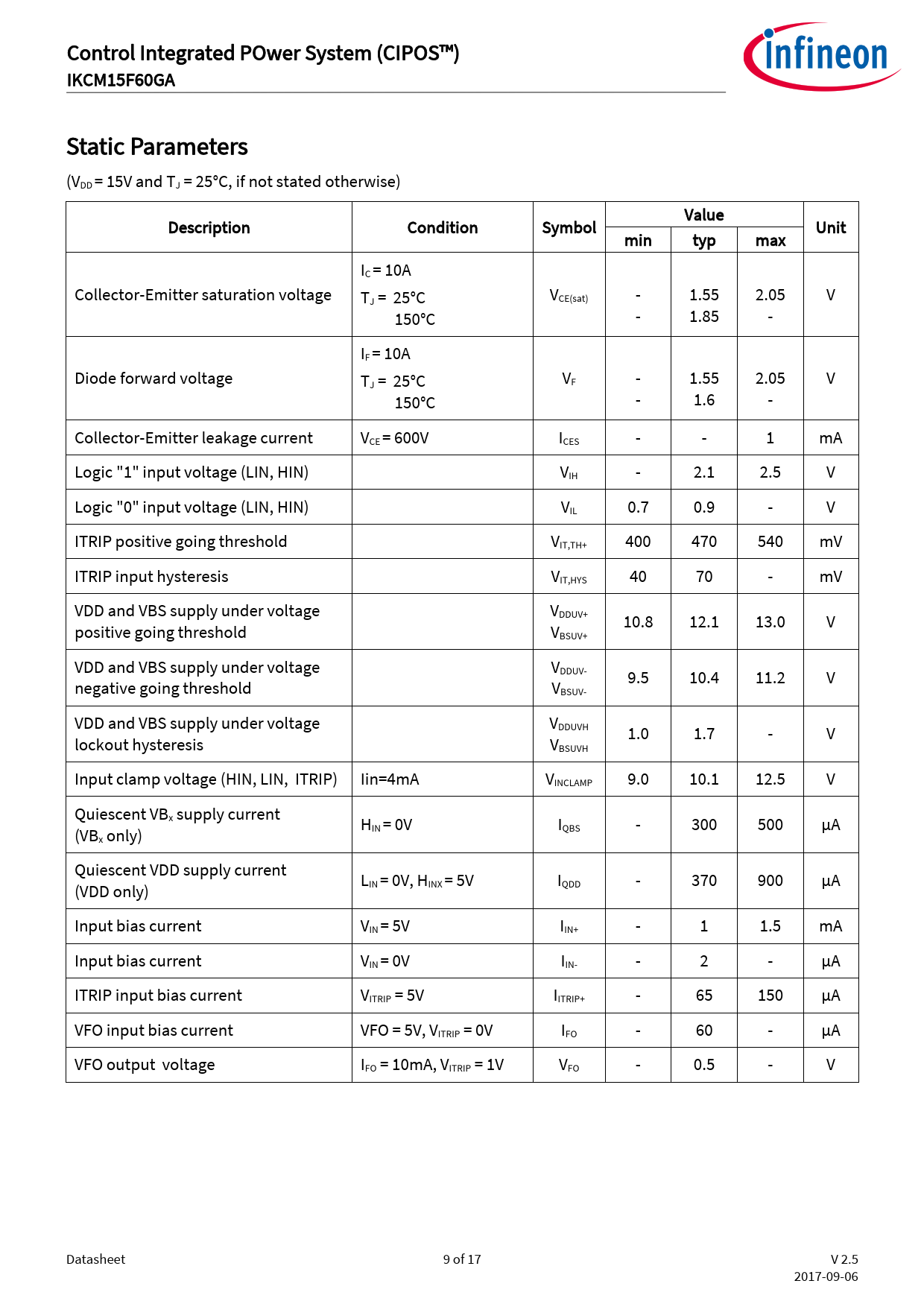

Control Integrated POwer System (CIPOS™) IKCM15F60GA Static Parameters (VDD = 15V and TJ = 25°C, if not stated otherwise) Value Description Condition Symbol Unit min typ max IC = 10A Collector-Emitter saturation voltage T V - 1.55 2.05 V J = 25°C CE(sat) 150°C - 1.85 - IF = 10A Diode forward voltage T V - 1.55 2.05 V J = 25°C F 150°C - 1.6 - Collector-Emitter leakage current VCE = 600V ICES - - 1 mA Logic "1" input voltage (LIN, HIN) VIH - 2.1 2.5 V Logic "0" input voltage (LIN, HIN) VIL 0.7 0.9 - V ITRIP positive going threshold VIT,TH+ 400 470 540 mV ITRIP input hysteresis VIT,HYS 40 70 - mV VDD and VBS supply under voltage V DDUV+ 10.8 12.1 13.0 V positive going threshold VBSUV+ VDD and VBS supply under voltage V DDUV- 9.5 10.4 11.2 V negative going threshold VBSUV- VDD and VBS supply under voltage V DDUVH 1.0 1.7 - V lockout hysteresis VBSUVH Input clamp voltage (HIN, LIN, ITRIP) Iin=4mA VINCLAMP 9.0 10.1 12.5 V Quiescent VBx supply current H (VB IN = 0V IQBS - 300 500 µA x only) Quiescent VDD supply current L (VDD only) IN = 0V, HINX = 5V IQDD - 370 900 µA Input bias current VIN = 5V IIN+ - 1 1.5 mA Input bias current VIN = 0V IIN- - 2 - µA ITRIP input bias current VITRIP = 5V IITRIP+ - 65 150 µA VFO input bias current VFO = 5V, VITRIP = 0V IFO - 60 - µA VFO output voltage IFO = 10mA, VITRIP = 1V VFO - 0.5 - V Datasheet 9 of 17 V 2.5 2017-09-06 Document Outline Table of contents CIPOS™ Control Integrated POwer System Features Target Applications Description System Configuration Pin Configuration Internal Electrical Schematic Pin Assignment Pin Description HIN(U, V, W) and LIN(U, V, W) (Low side and high side control pins, Pin 7 - 12) VFO (Fault-output and NTC, Pin 14) ITRIP (Over current detection function, Pin 15) VDD, VSS (Low side control supply and reference, Pin 13, 16) VB(U, V, W) and VS(U, V, W) (High side supplies, Pin 1 - 6) NW, NV, NU (Low side emitter, Pin 17 - 19) W, V, U (High side emitter and low side collector, Pin 20 - 22) P (Positive bus input voltage, Pin 23) Absolute Maximum Ratings Module Section Inverter Section Control Section Recommended Operation Conditions Static Parameters Dynamic Parameters Bootstrap Parameters Thermistor Mechanical Characteristics and Ratings Circuit of a Typical Application Switching Times Definition Electrical characteristic Package Outline Revision history
