Datasheet MM74C925, MM74C926, MM74C927, MM74C928 (Fairchild) - 4
| Hersteller | Fairchild |
| Beschreibung | 4-Digit Counters with Multiplexed 7-Segment Output Drivers |
| Seiten / Seite | 9 / 4 — Absolute Maximum Ratings. 74C928. • M. Note 1:. • MM. DC Electrical … |
| Dateiformat / Größe | PDF / 112 Kb |
| Dokumentensprache | Englisch |
Absolute Maximum Ratings. 74C928. • M. Note 1:. • MM. DC Electrical Characteristics. Symbol. Parameter. Conditions. Min. Typ. Max. Units
Modelllinie für dieses Datenblatt
Textversion des Dokuments

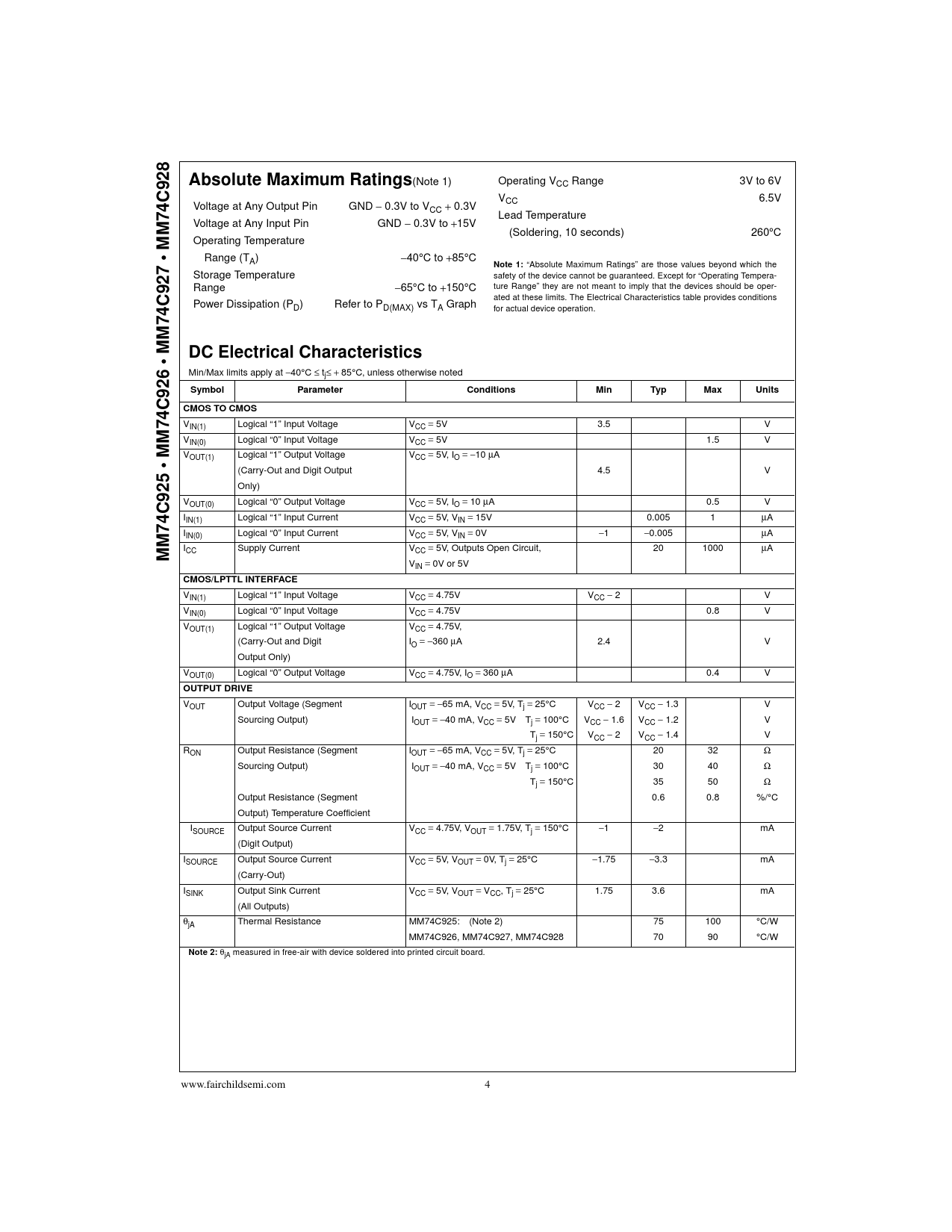

Absolute Maximum Ratings
(Note 1) Operating VCC Range 3V to 6V VCC 6.5V Voltage at Any Output Pin GND − 0.3V to V
74C928
CC + 0.3V Lead Temperature
M
Voltage at Any Input Pin GND − 0.3V to +15V (Soldering, 10 seconds) 260°C Operating Temperature
• M
Range (TA) −40°C to +85°C
7 Note 1:
“Absolute Maximum Ratings” are those values beyond which the
2
Storage Temperature safety of the device cannot be guaranteed. Except for “Operating Tempera-
9
ture Range” they are not meant to imply that the devices should be oper- Range −65°C to +150°C
C
ated at these limits. The Electrical Characteristics table provides conditions Power Dissipation (PD) Refer to PD(MAX) vs TA Graph for actual device operation.
74 • MM DC Electrical Characteristics
Min/Max limits apply at −40°C ≤ t ≤ j + 85°C, unless otherwise noted
Symbol Parameter Conditions Min Typ Max Units C926 4 CMOS TO CMOS 7
VIN(1) Logical “1” Input Voltage VCC = 5V 3.5 V VIN(0) Logical “0” Input Voltage VCC = 5V 1.5 V V
• MM
OUT(1) Logical “1” Output Voltage VCC = 5V, IO = −10 µA (Carry-Out and Digit Output 4.5 V Only) VOUT(0) Logical “0” Output Voltage VCC = 5V, IO = 10 µA 0.5 V IIN(1) Logical “1” Input Current VCC = 5V, VIN = 15V 0.005 1 µA IIN(0) Logical “0” Input Current VCC = 5V, VIN = 0V −1 −0.005 µA I
MM74C925
CC Supply Current VCC = 5V, Outputs Open Circuit, 20 1000 µA VIN = 0V or 5V
CMOS/LPTTL INTERFACE
VIN(1) Logical “1” Input Voltage VCC = 4.75V VCC − 2 V VIN(0) Logical “0” Input Voltage VCC = 4.75V 0.8 V VOUT(1) Logical “1” Output Voltage VCC = 4.75V, (Carry-Out and Digit IO = −360 µA 2.4 V Output Only) VOUT(0) Logical “0” Output Voltage VCC = 4.75V, IO = 360 µA 0.4 V
OUTPUT DRIVE
VOUT Output Voltage (Segment IOUT = −65 mA, VCC = 5V, Tj = 25°C VCC − 2 VCC − 1.3 V Sourcing Output) IOUT = −40 mA, VCC = 5V Tj = 100°C VCC − 1.6 VCC − 1.2 V Tj = 150°C VCC − 2 VCC − 1.4 V RON Output Resistance (Segment IOUT = −65 mA, VCC = 5V, Tj = 25°C 20 32 Ω Sourcing Output) IOUT = −40 mA, VCC = 5V Tj = 100°C 30 40 Ω Tj = 150°C 35 50 Ω Output Resistance (Segment 0.6 0.8 %/°C Output) Temperature Coefficient ISOURCE Output Source Current VCC = 4.75V, VOUT = 1.75V, Tj = 150°C −1 −2 mA (Digit Output) ISOURCE Output Source Current VCC = 5V, VOUT = 0V, Tj = 25°C −1.75 −3.3 mA (Carry-Out) ISINK Output Sink Current VCC = 5V, VOUT = VCC, Tj = 25°C 1.75 3.6 mA (All Outputs) θjA Thermal Resistance MM74C925: (Note 2) 75 100 °C/W MM74C926, MM74C927, MM74C928 70 90 °C/W
Note 2:
θjA measured in free-air with device soldered into printed circuit board. www.fairchildsemi.com 4
