Datasheet AN431 (Diodes) - 6
| Hersteller | Diodes |
| Beschreibung | Adjustable Precision Shunt Regulators |
| Seiten / Seite | 13 / 6 — A Product Line of. Diodes Incorporated. AN431. Electrical … |
| Dateiformat / Größe | PDF / 364 Kb |
| Dokumentensprache | Englisch |
A Product Line of. Diodes Incorporated. AN431. Electrical Characteristics. www.diodes.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments
A Product Line of Diodes Incorporated AN431 Electrical Characteristics
(Cont.)

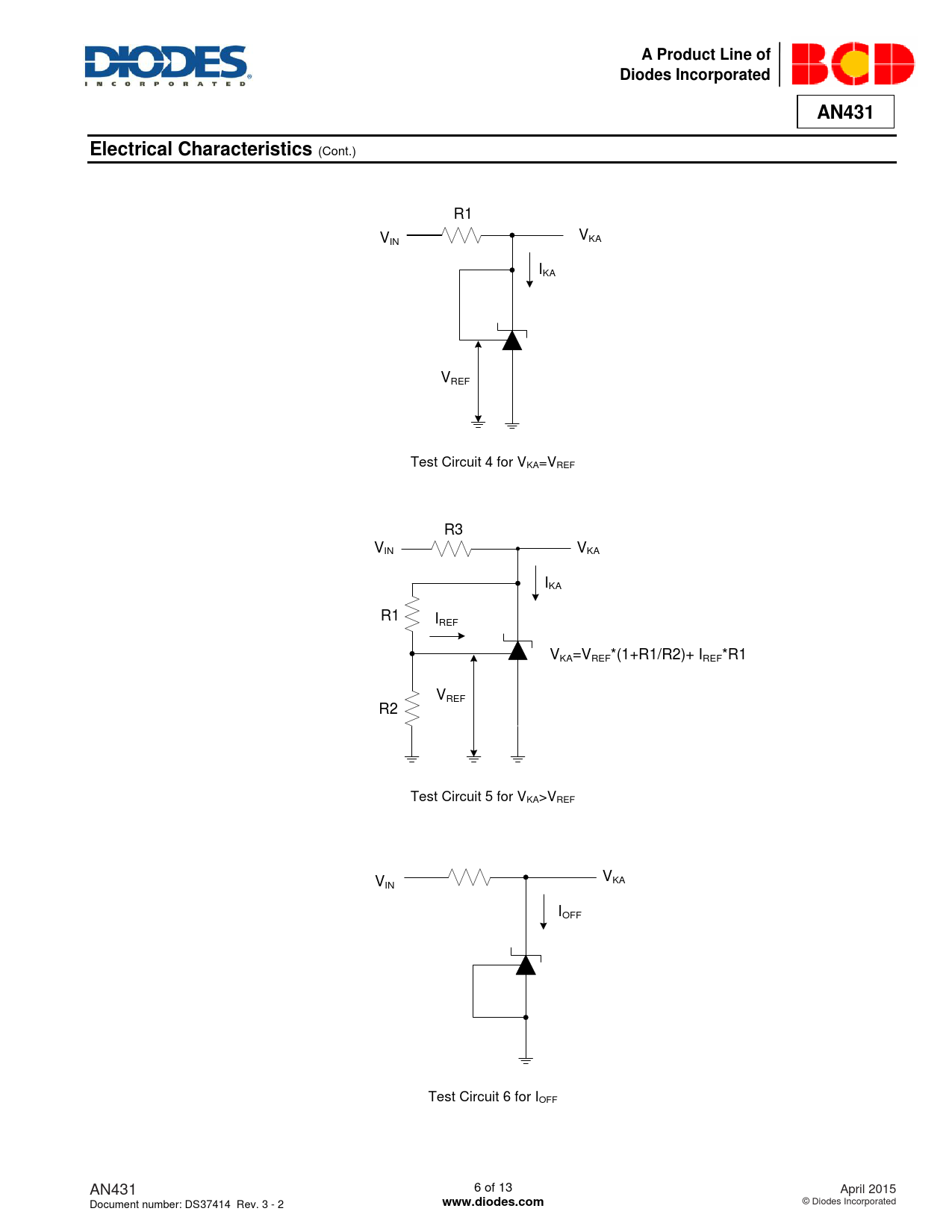

R1 V V IN KA IKA VREF Test Circuit 4 for VKA=VREF R3 VIN VKA IKA R1 IREF VKA=VREF*(1+R1/R2)+ IREF*R1 VREF R2 Test Circuit 5 for VKA>VREF V VKA IN IOFF Test Circuit 6 for IOFF AN431 6 of 13 April 2015 Document number: DS37414 Rev. 3 - 2
