Datasheet MP8765 (Monolithic Power Systems) - 7
| Hersteller | Monolithic Power Systems |
| Beschreibung | 24V, 6A High Efficiency Synchronous Step-down Converter |
| Seiten / Seite | 21 / 7 — MP8765 ─ 24V, HIGH CURRENT SYNCHRONOUS STEP-DOWN CONVERTER. TYPICAL … |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
MP8765 ─ 24V, HIGH CURRENT SYNCHRONOUS STEP-DOWN CONVERTER. TYPICAL PERFORMANCE CHARACTERISTICS (continued)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

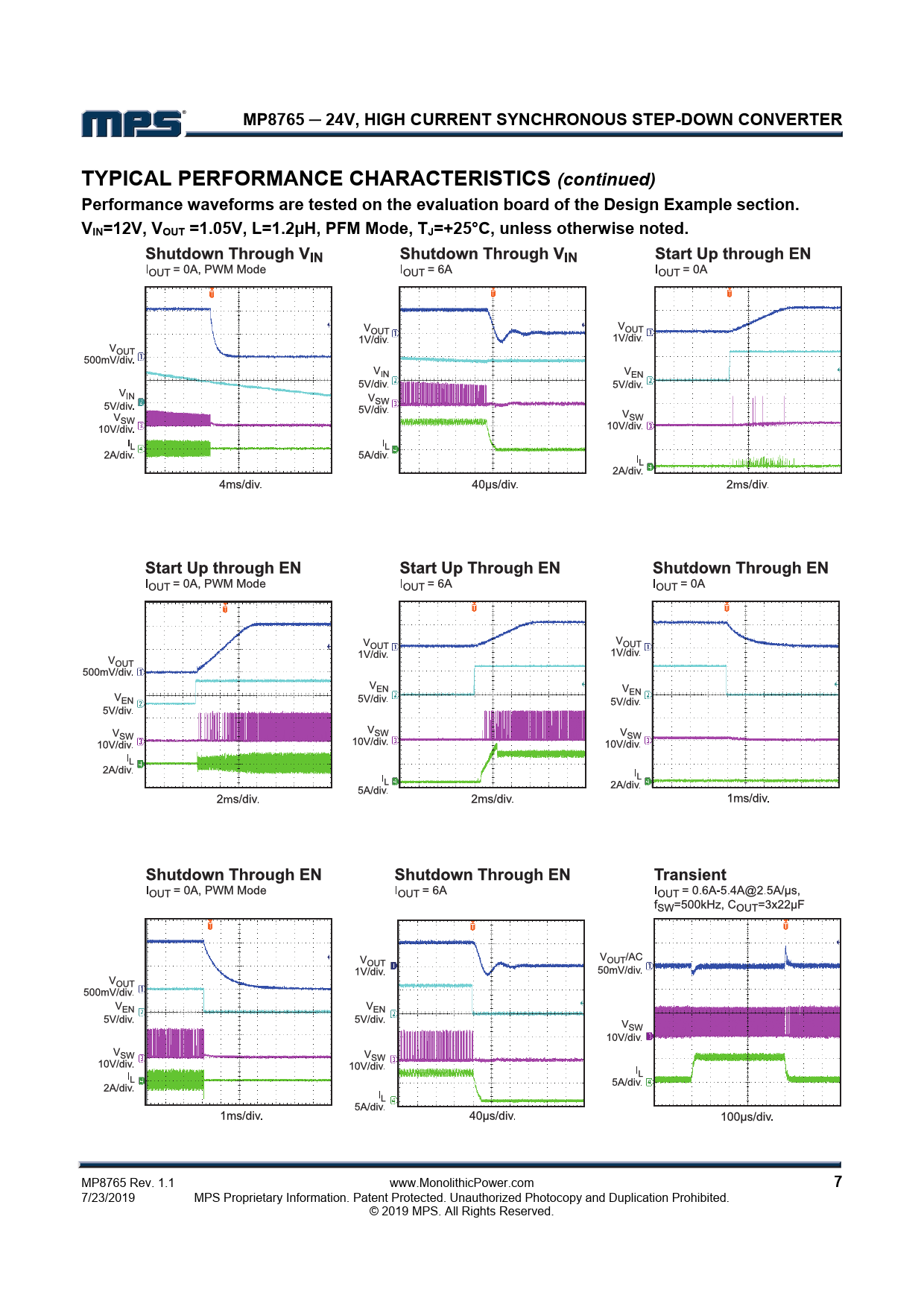

MP8765 ─ 24V, HIGH CURRENT SYNCHRONOUS STEP-DOWN CONVERTER TYPICAL PERFORMANCE CHARACTERISTICS (continued) Performance waveforms are tested on the evaluation board of the Design Example section. VIN=12V, VOUT =1.05V, L=1.2µH, PFM Mode, TJ=+25°C, unless otherwise noted.
