Datasheet AT89S53 (Microchip) - 3

HerstellerMicrochip
Beschreibung8-bit Microcontroller with 12K Bytes Flash
Seiten / Seite35 / 3 — AT89S53. Block Diagram
Dateiformat / GrößePDF / 892 Kb
DokumentenspracheEnglisch

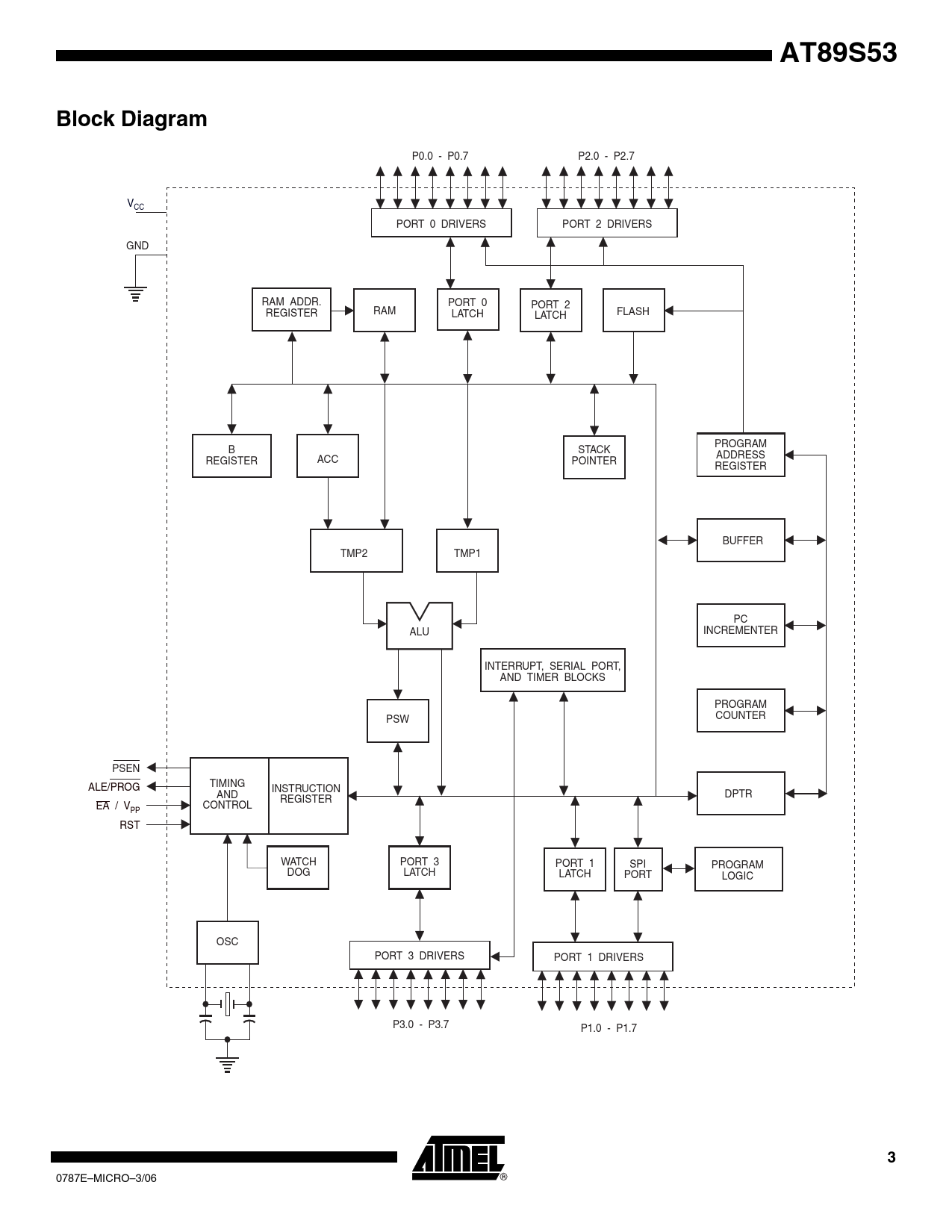

AT89S53. Block Diagram

AT89S53 Block Diagram

Modelllinie für dieses Datenblatt

Textversion des Dokuments

AT89S53 Block Diagram
P0.0 - P0.7 P2.0 - P2.7 VCC PORT 0 DRIVERS PORT 2 DRIVERS GND RAM ADDR. PORT 0 PORT 2 RAM REGISTER LATCH LATCH FLASH PROGRAM B STACK ADDRESS REGISTER ACC POINTER REGISTER BUFFER TMP2 TMP1 PC ALU INCREMENTER INTERRUPT, SERIAL PORT, AND TIMER BLOCKS PROGRAM COUNTER PSW PSEN TIMING ALE/PROG INSTRUCTION AND DPTR REGISTER EA / V CONTROL PP RST WATCH PORT 3 PORT 1 SPI PROGRAM DOG LATCH LATCH PORT LOGIC OSC PORT 3 DRIVERS PORT 1 DRIVERS P3.0 - P3.7 P1.0 - P1.7
