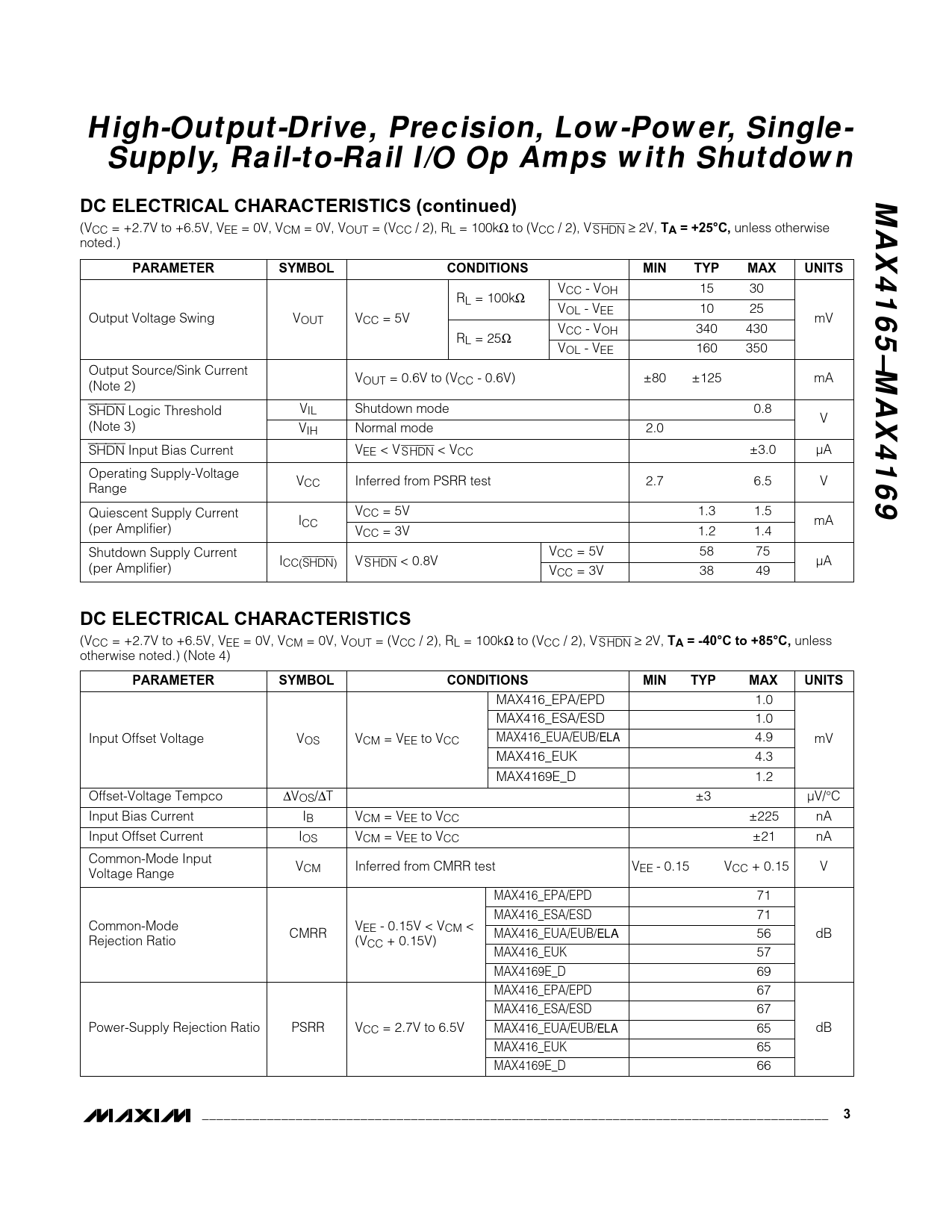

Datasheet MAX4165 (Analog Devices) - 3

High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown MAX4165–MAX416 DC ELECTRICAL CHARACTERISTICS (continued)
(VCC = +2.7V to +6.5V, VEE = 0V, VCM = 0V, VOUT = (VCC / 2), RL = 100kΩ to (VCC / 2), VSHDN ≥ 2V,
TA = +25°C,
unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
V R CC - VOH 15 30 L = 100kΩ V Output Voltage Swing V OL - VEE 10 25 OUT VCC = 5V mV V R CC - VOH 340 430 L = 25Ω VOL - VEE 160 350 Output Source/Sink Current V (Note 2) OUT = 0.6V to (VCC - 0.6V) ±80 ±125 mA SHDN Logic Threshold VIL Shutdown mode 0.8 V (Note 3) VIH Normal mode 2.0 SHDN Input Bias Current VEE < VSHDN < VCC ±3.0 µA Operating Supply-Voltage V Range CC Inferred from PSRR test 2.7 6.5 V
9
Quiescent Supply Current V I CC = 5V 1.3 1.5 CC mA (per Amplifier) VCC = 3V 1.2 1.4 Shutdown Supply Current V ICC(SHDN) V CC = 5V 58 75 S HDN < 0.8V µA (per Amplifier) VCC = 3V 38 49
DC ELECTRICAL CHARACTERISTICS
(VCC = +2.7V to +6.5V, VEE = 0V, VCM = 0V, VOUT = (VCC / 2), RL = 100kΩ to (VCC / 2), VSHDN ≥ 2V,
TA = -40°C to +85°C,
unless otherwise noted.) (Note 4)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX416_EPA/EPD 1.0 MAX416_ESA/ESD 1.0 Input Offset Voltage VOS VCM = VEE to VCC MAX416_EUA/EUB/ELA 4.9 mV MAX416_EUK 4.3 MAX4169E_D 1.2 Offset-Voltage Tempco ΔVOS/ΔT ±3 µV/°C Input Bias Current IB VCM = VEE to VCC ±225 nA Input Offset Current IOS VCM = VEE to VCC ±21 nA Common-Mode Input V Voltage Range CM Inferred from CMRR test VEE - 0.15 VCC + 0.15 V MAX416_EPA/EPD 71 MAX416_ESA/ESD 71 Common-Mode V CMRR EE - 0.15V < VCM < MAX416_EUA/EUB/ELA 56 dB Rejection Ratio (VCC + 0.15V) MAX416_EUK 57 MAX4169E_D 69 MAX416_EPA/EPD 67 MAX416_ESA/ESD 67 Power-Supply Rejection Ratio PSRR VCC = 2.7V to 6.5V MAX416_EUA/EUB/ELA 65 dB MAX416_EUK 65 MAX4169E_D 66
_______________________________________________________________________________________ 3
