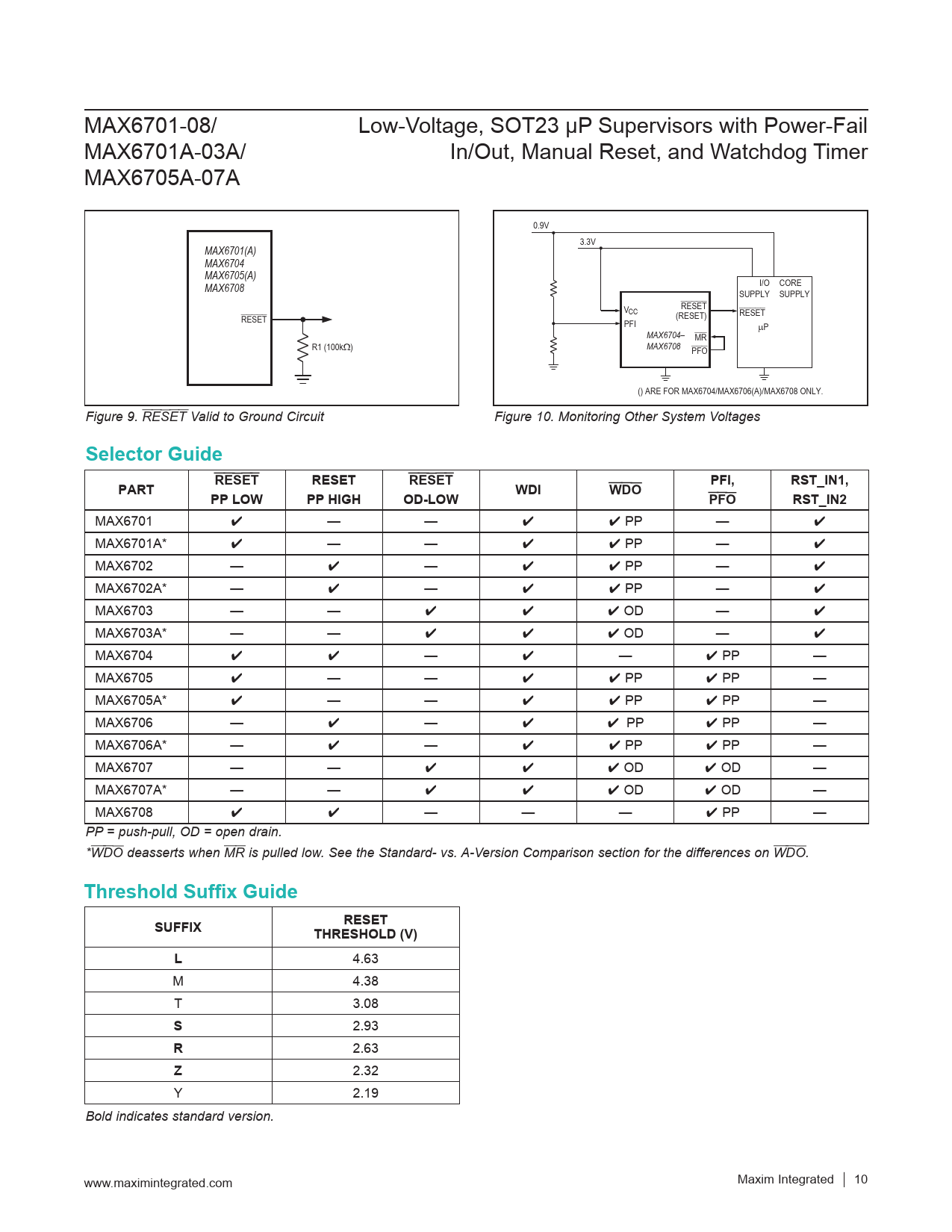

MAX6701-08/ Low-Voltage, SOT23 µP Supervisors with Power-Fail MAX6701A-03A/ In/Out, Manual Reset, and Watchdog Timer MAX6705A-07A 0.9V 3.3V MAX6701(A) MAX6704 MAX6705(A) I/O CORE MAX6708 SUPPLY SUPPLY V RESET CC RESET (RESET) RESET PFI µP MAX6704– MR R1 (100kΩ) MAX6708 PFO () ARE FOR MAX6704/MAX6706(A)/MAX6708 ONLY. Figure 9. RESET Valid to Ground Circuit Figure 10. Monitoring Other System Voltages
Selector Guide RESET RESET RESET RST_IN1, PART WDI WDO PFI, PP LOW PP HIGH OD-LOW PFO RST_IN2
MAX6701 ✔ — — ✔ ✔ PP — ✔ MAX6701A* ✔ — — ✔ ✔ PP — ✔ MAX6702 — ✔ — ✔ ✔ PP — ✔ MAX6702A* — ✔ — ✔ ✔ PP — ✔ MAX6703 — — ✔ ✔ ✔ OD — ✔ MAX6703A* — — ✔ ✔ ✔ OD — ✔ MAX6704 ✔ ✔ — ✔ — ✔ PP — MAX6705 ✔ — — ✔ ✔ PP ✔ PP — MAX6705A* ✔ — — ✔ ✔ PP ✔ PP — MAX6706 — ✔ — ✔ ✔ PP ✔ PP — MAX6706A* — ✔ — ✔ ✔ PP ✔ PP — MAX6707 — — ✔ ✔ ✔ OD ✔ OD — MAX6707A* — — ✔ ✔ ✔ OD ✔ OD — MAX6708 ✔ ✔ — — — ✔ PP — PP = push-pull, OD = open drain. *WDO deasserts when MR is pulled low. See the Standard- vs. A-Version Comparison section for the differences on WDO.
Threshold Suffix Guide SUFFIX RESET THRESHOLD (V) L
4.63 M 4.38 T 3.08
S
2.93
R
2.63
Z
2.32 Y 2.19 Bold indicates standard version. www.maximintegrated.com Maxim Integrated │

10
