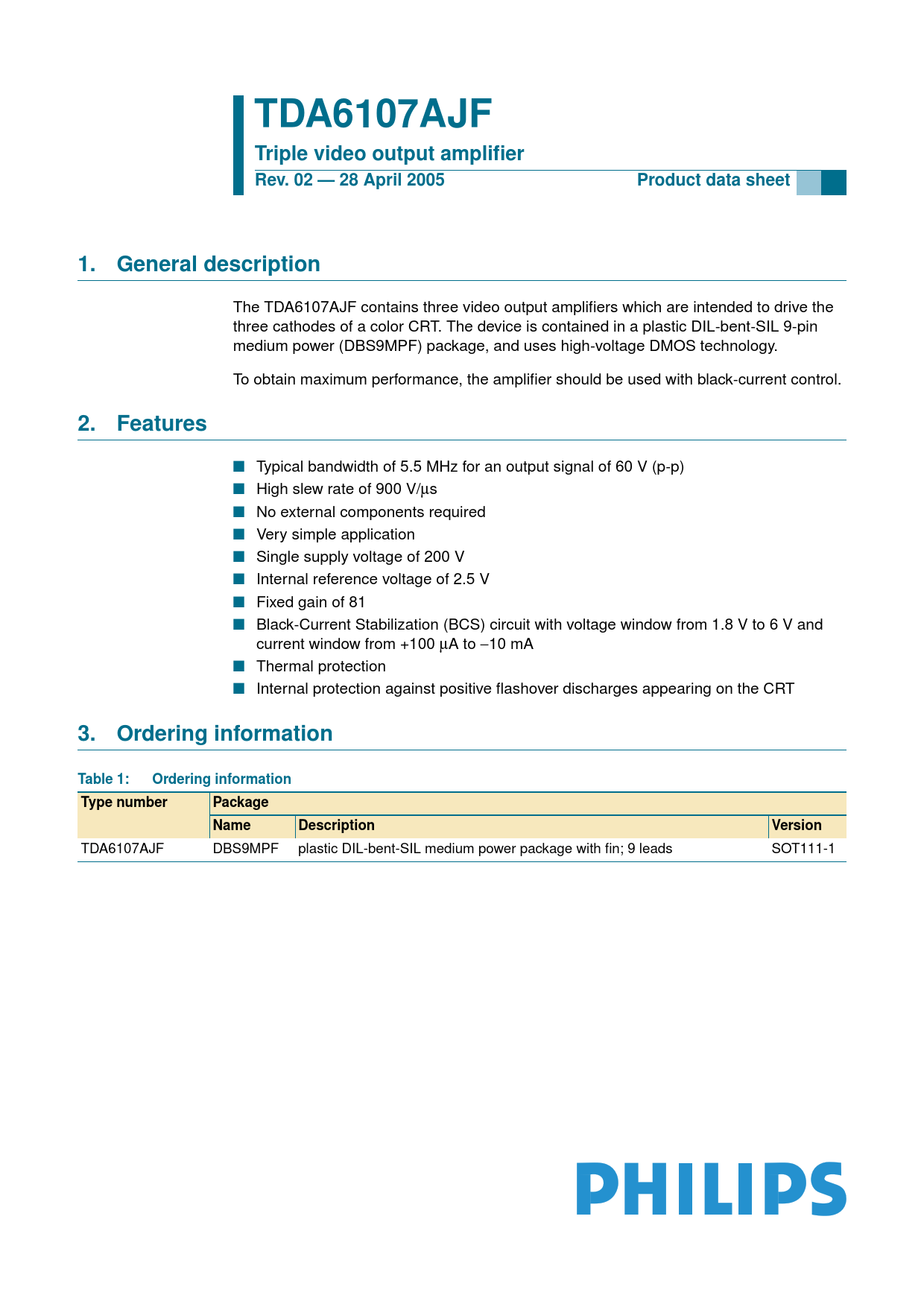

TDA6107AJF Triple video output amplifier Rev. 02 — 28 April 2005 Product data sheet 1. General description
The TDA6107AJF contains three video output amplifiers which are intended to drive the three cathodes of a color CRT. The device is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology. To obtain maximum performance, the amplifier should be used with black-current control.
2. Features
■ Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p) ■ High slew rate of 900 V/µs ■ No external components required ■ Very simple application ■ Single supply voltage of 200 V ■ Internal reference voltage of 2.5 V ■ Fixed gain of 81 ■ Black-Current Stabilization (BCS) circuit with voltage window from 1.8 V to 6 V and current window from +100 µA to −10 mA ■ Thermal protection ■ Internal protection against positive flashover discharges appearing on the CRT
3. Ordering information Table 1: Ordering information Type number Package Name Description Version
TDA6107AJF DBS9MPF plastic DIL-bent-SIL medium power package with fin; 9 leads SOT111-1 Document Outline 1. General description 2. Features 3. Ordering information 4. Block diagram 5. Pinning information 5.1 Pinning 5.2 Pin description 6. Internal circuitry 7. Limiting values 8. Thermal characteristics 8.1 Thermal protection 9. Characteristics 10. Application information 10.1 Cathode output 10.2 Flashover protection 10.3 Switch-off behavior 10.4 Bandwidth 10.5 Dissipation 11. Test information 11.1 Quality information 12. Package outline 13. Handling information 14. Soldering 14.1 Introduction to soldering through-hole mount packages 14.2 Soldering by dipping or by solder wave 14.3 Manual soldering 14.4 Package related soldering information 15. Revision history 16. Data sheet status 17. Definitions 18. Disclaimers 19. Contact information 20. Contents
