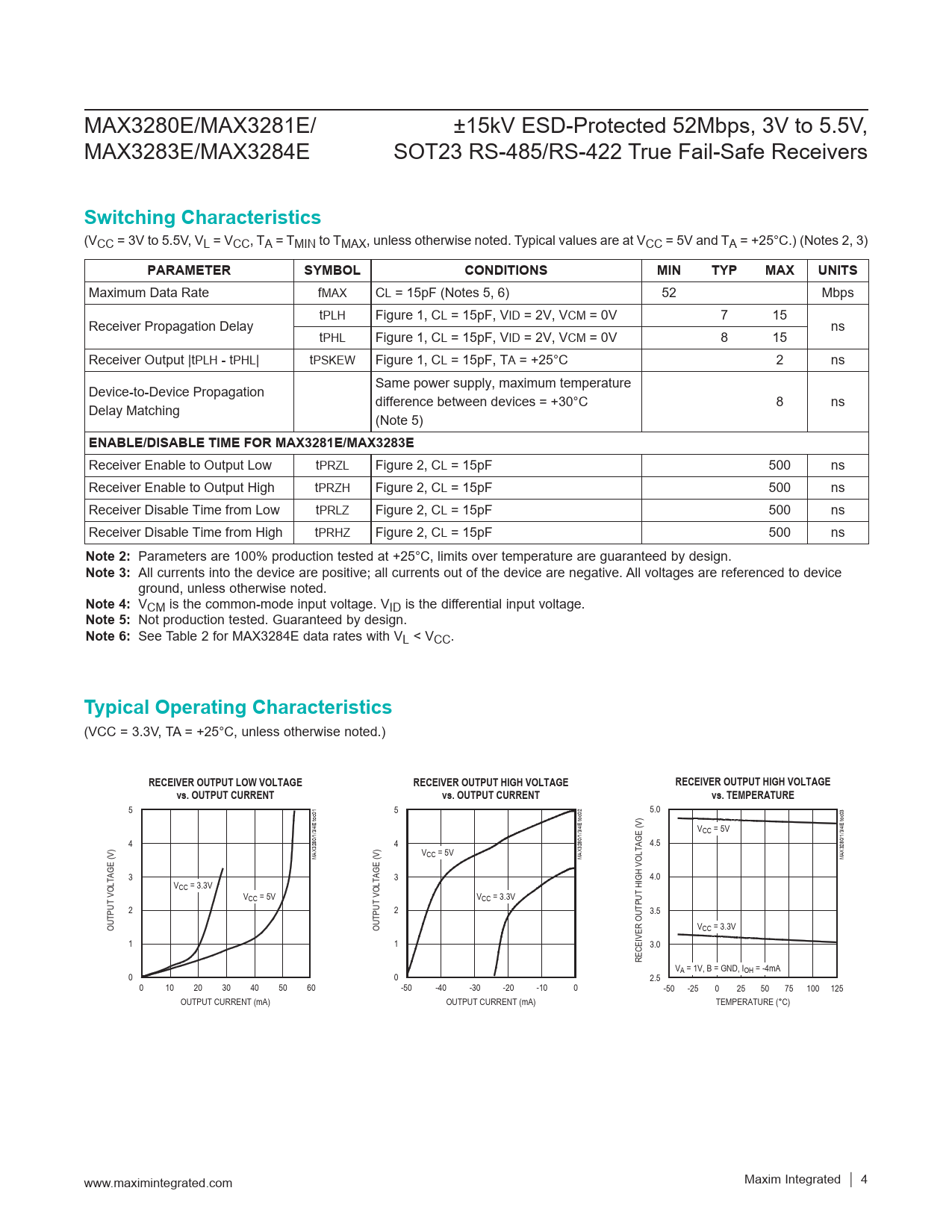

MAX3280E/MAX3281E/ ±15kV ESD-Protected 52Mbps, 3V to 5.5V, MAX3283E/MAX3284E SOT23 RS-485/RS-422 True Fail-Safe Receivers
Switching Characteristics
(VCC = 3V to 5.5V, VL = VCC, TA = TMIN to TMAX, unless otherwise noted. Typical values are at VCC = 5V and TA = +25°C.) (Notes 2, 3)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Maximum Data Rate fMAX CL = 15pF (Notes 5, 6) 52 Mbps tPLH Figure 1, CL = 15pF, VID = 2V, VCM = 0V 7 15 Receiver Propagation Delay ns tPHL Figure 1, CL = 15pF, VID = 2V, VCM = 0V 8 15 Receiver Output |tPLH - tPHL| tPSKEW Figure 1, CL = 15pF, TA = +25°C 2 ns Same power supply, maximum temperature Device-to-Device Propagation difference between devices = +30°C 8 ns Delay Matching (Note 5)
ENABLE/DISABLE TIME FOR MAX3281E/MAX3283E
Receiver Enable to Output Low tPRZL Figure 2, CL = 15pF 500 ns Receiver Enable to Output High tPRZH Figure 2, CL = 15pF 500 ns Receiver Disable Time from Low tPRLZ Figure 2, CL = 15pF 500 ns Receiver Disable Time from High tPRHZ Figure 2, CL = 15pF 500 ns
Note 2:
Parameters are 100% production tested at +25°C, limits over temperature are guaranteed by design.
Note 3:
All currents into the device are positive; all currents out of the device are negative. All voltages are referenced to device ground, unless otherwise noted.
Note 4:
VCM is the common-mode input voltage. VID is the differential input voltage.
Note 5:
Not production tested. Guaranteed by design.
Note 6:
See Table 2 for MAX3284E data rates with VL < VCC.
Typical Operating Characteristics
(VCC = 3.3V, TA = +25°C, unless otherwise noted.)
RECEIVER OUTPUT LOW VOLTAGE RECEIVER OUTPUT HIGH VOLTAGE RECEIVER OUTPUT HIGH VOLTAGE vs. OUTPUT CURRENT vs. OUTPUT CURRENT vs. TEMPERATURE
5 5 5.0 VCC = 5V 4 4 4.5 VCC = 5V MAX3280/1/3/4E toc01 MAX3280/1/3/4E toc02 MAX3280/1/3/4E toc03 3 3 4.0 VCC = 3.3V VCC = 5V VCC = 3.3V 2 2 3.5 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE (V) VCC = 3.3V 1 1 3.0 RECEIVER OUTPUT HIGH VOLTAGE (V) VA = 1V, B = GND, IOH = -4mA 0 0 2.5 0 10 20 30 40 50 60 -50 -40 -30 -20 -10 0 -50 -25 0 25 50 75 100 125 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) TEMPERATURE (°C) www.maximintegrated.com Maxim Integrated │
4
