Datasheet DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S (Diodes) - 4
| Hersteller | Diodes |
| Beschreibung | 1.5A Surface Mount Glass Passivated Bridge Rectifier |
| Seiten / Seite | 5 / 4 — DF15005S – DF1510S. Package Outline Dimensions. DF-S. Dim. Min. Max. All … |
| Dateiformat / Größe | PDF / 365 Kb |
| Dokumentensprache | Englisch |
DF15005S – DF1510S. Package Outline Dimensions. DF-S. Dim. Min. Max. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

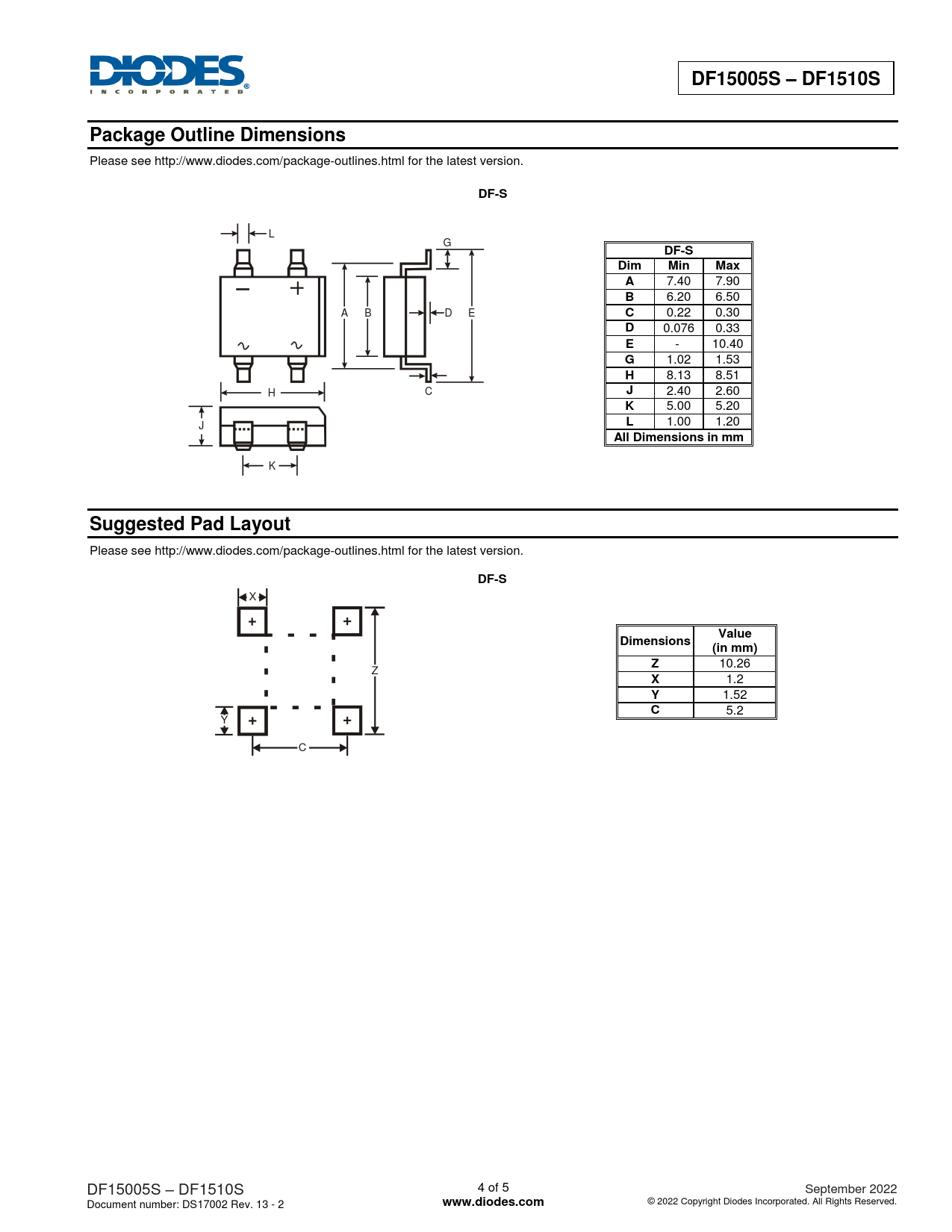

DF15005S – DF1510S Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
L G
DF-S Dim Min Max A
7.40 7.90
B
6.20 6.50 A B D E
C
0.22 0.30
D
0.076 0.33
E
- 10.40
G
1.02 1.53
H
8.13 8.51 H C
J
2.40 2.60
K
5.00 5.20
L
1.00 1.20 J
All Dimensions in mm
K
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
DF-S
X
Value Dimensions (in mm) Z
10.26 Z
X
1.2
Y
1.52
C
5.2 Y C DF15005S – DF1510S 4 of 5 September 2022 Document number: DS17002 Rev. 13 - 2
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
