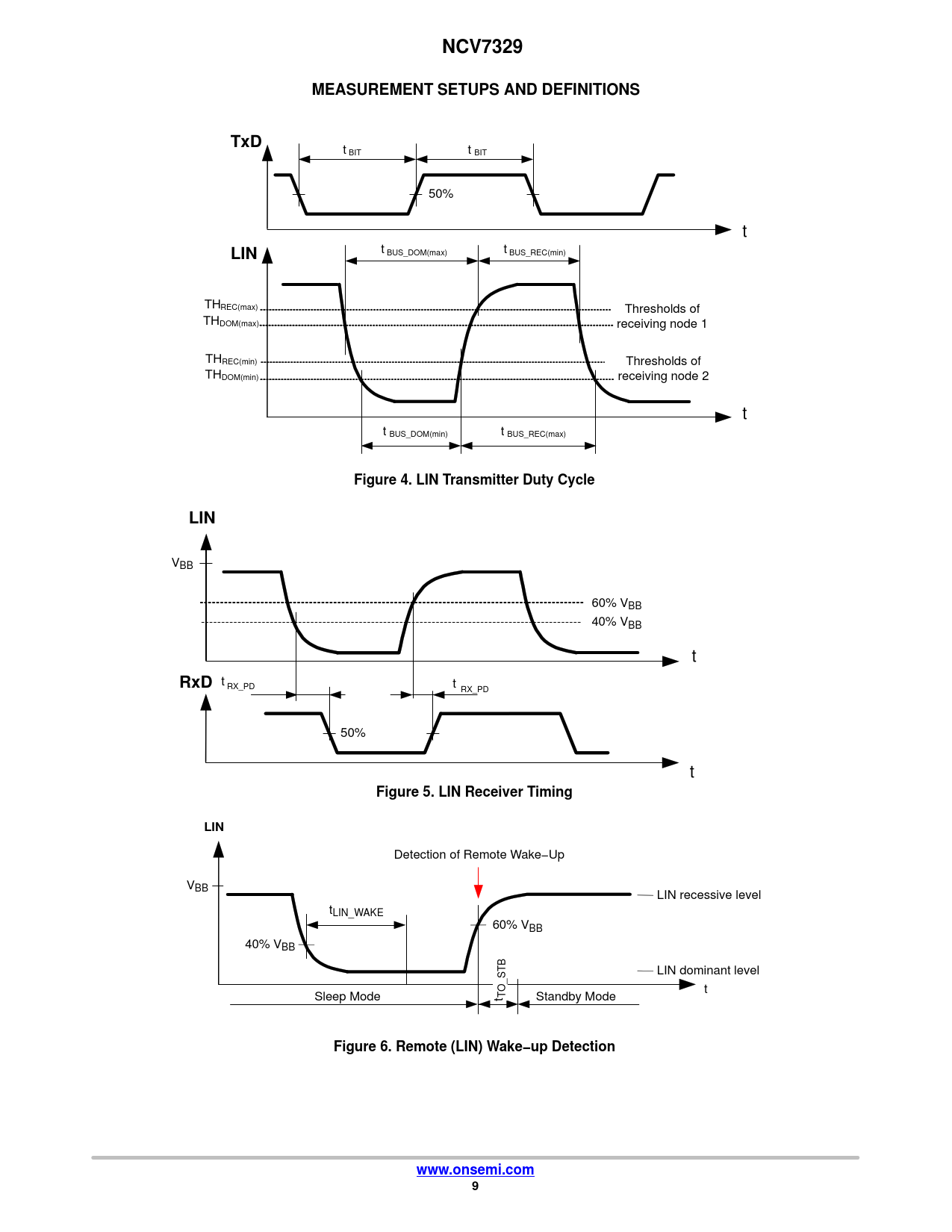

NCV7329. MEASUREMENT SETUPS AND DEFINITIONS. TxD. LIN. Figure 4. LIN Transmitter Duty Cycle. RxD. Figure 5. LIN Receiver Timing
Modelllinie für dieses Datenblatt
Textversion des Dokuments
NCV7329 MEASUREMENT SETUPS AND DEFINITIONS TxD
t BIT t BIT 50% t
LIN
t BUS_DOM(max) t BUS_REC(min) THREC(max) Thresholds of THDOM(max) receiving node 1 THREC(min) Thresholds of THDOM(min) receiving node 2 t t BUS_DOM(min) t BUS_REC(max)
Figure 4. LIN Transmitter Duty Cycle LIN
VBB 60% VBB 40% VBB t
RxD
t RX_PD t RX_PD 50% t
Figure 5. LIN Receiver Timing LIN
Detection of Remote Wake−Up VBB LIN recessive level tLIN_WAKE 60% VBB 40% VBB B T LIN dominant level S _ t Sleep Mode t TO Standby Mode
Figure 6. Remote (LIN) Wake−up Detection www.onsemi.com 9
