Datasheet RE11 (Switch Channel)
Hersteller | Switch Channel |
Beschreibung | Soltem Encoder |
Seiten / Seite | 1 / 1 — SOLTEAM ENCODER SPECIFICATION SERIES NUMBER: RE11 ENCODER. Rating: 5VDC … |
Dateiformat / Größe | PDF / 264 Kb |
Dokumentensprache | Englisch |
SOLTEAM ENCODER SPECIFICATION SERIES NUMBER: RE11 ENCODER. Rating: 5VDC 10mA (1mA minimum)

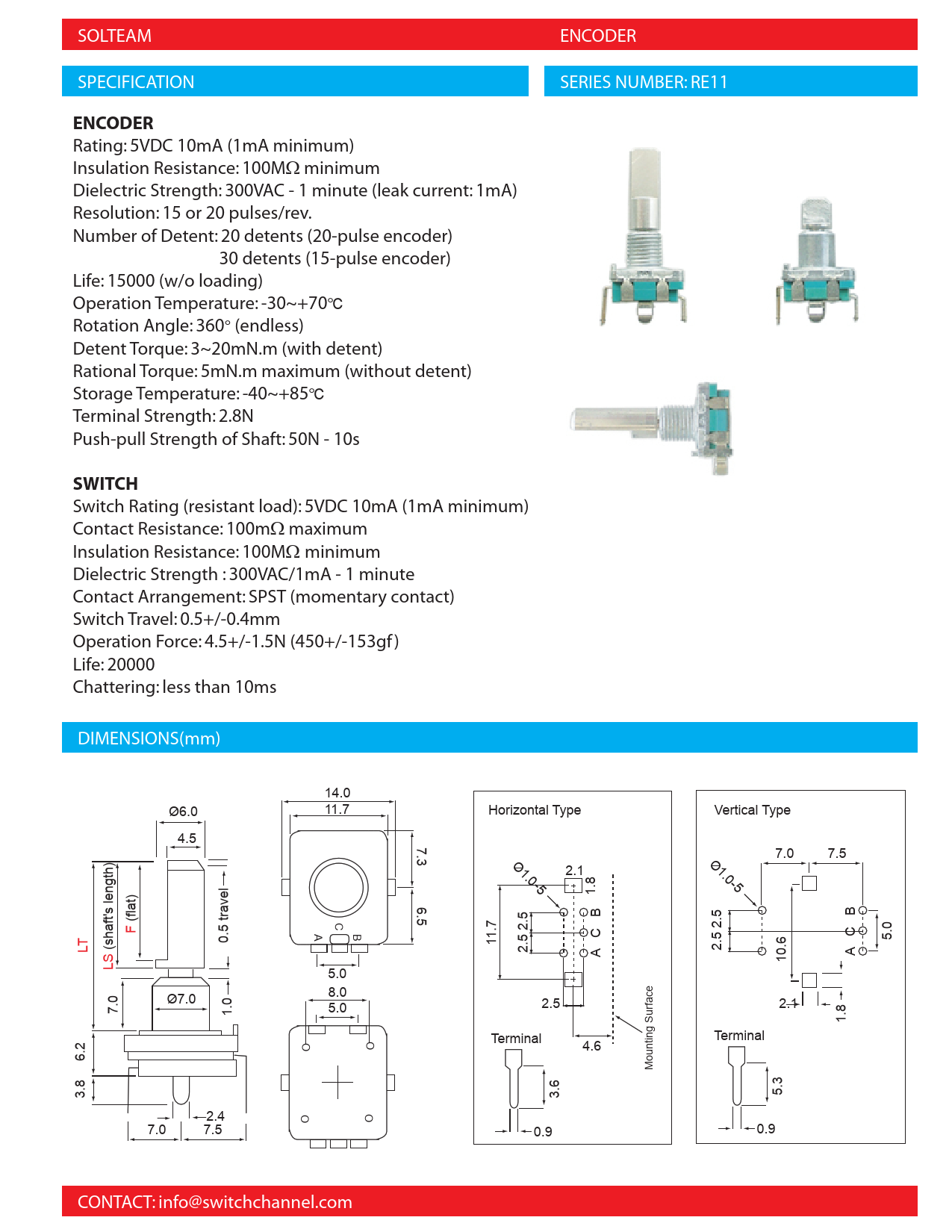

![Datasheet RE11 Switch Channel](https://www.rlocman.ru/datasheet/img.php?di=181069)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SOLTEAM ENCODER SPECIFICATION SERIES NUMBER: RE11 ENCODER
Rating: 5VDC 10mA (1mA minimum)
Insulation Resistance: 100MW minimum
Dielectric Strength: 300VAC -1 minute (leak current: 1mA)
Resolution: 15 or 20 pulses/rev.
Number of Detent: 20 detents (20-pulse encoder)
30 detents (15-pulse encoder)
Life: 15000 (w/o loading)
Operation Temperature: -30~+70w
Rotation Angle: 360v (endless)
Detent Torque: 3~20mN.m (with detent)
Rational Torque: 5mN.m maximum (without detent)
Storage Temperature: -40~+85w
Terminal Strength: 2.8N
Push-pull Strength of Shaft: 50N -10s
SWITCH
Switch Rating (resistant load): 5VDC 10mA (1mA minimum)
Contact Resistance: 100mW maximum
Insulation Resistance: 100MW minimum
Dielectric Strength : 300VAC/1mA -1 minute
Contact Arrangement: SPST (momentary contact)
Switch Travel: 0.5+/-0.4mm
Operation Force: 4.5+/-1.5N (450+/-153gf )
Life: 20000
Chattering: less than 10ms
DIMENSIONS(mm) Horizontal Type 4.6 3.8 2.4
7.5 CONTACT: info@switchchannel.com 0.9 2.1
Terminal 0.9 5.0 A C B
1.8 10.6 2.5 2.5
Mounting Surface O Terminal
3.6 O O 7.0 A C B 1.8 2.5 2.5 11.7 0.5 travel F (flat) LS (shaft's length) LT 7.0 1.0 O 6.2 B 2.5 7.5 5 5
01.
O 6.5 C
A O7.0 5.0
8.0
5.0 7.0 2.1 01.
O 7.3 4.5 Vertical Type 5.3 14.0
11.7 O6.0
