Datasheet MOC8101, MOC8102, MOC8103, MOC8104 (Vishay)
| Hersteller | Vishay |
| Beschreibung | Optocoupler, Phototransistor Output, no Base Connection |
| Seiten / Seite | 7 / 1 — MOC8101, MOC8102, MOC8103, MOC8104. Optocoupler, Phototransistor Output, … |
| Dateiformat / Größe | PDF / 168 Kb |
| Dokumentensprache | Englisch |
MOC8101, MOC8102, MOC8103, MOC8104. Optocoupler, Phototransistor Output, no Base Connection. FEATURES
Modelllinie für dieses Datenblatt
Textversion des Dokuments

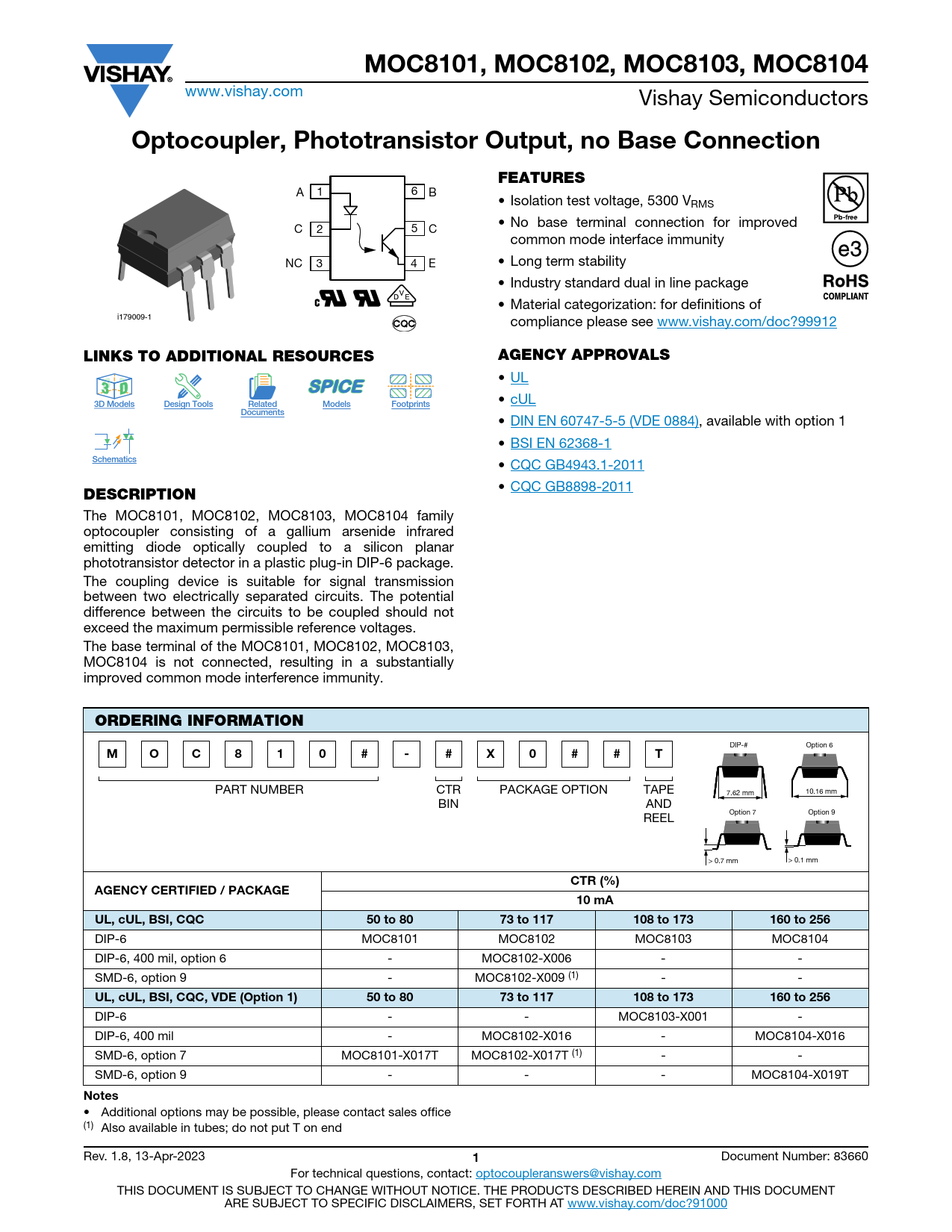

MOC8101, MOC8102, MOC8103, MOC8104
www.vishay.com Vishay Semiconductors
Optocoupler, Phototransistor Output, no Base Connection FEATURES
A 1 6 B • Isolation test voltage, 5300 VRMS • No base terminal connection for improved C 2 5 C common mode interface immunity NC 3 4 E • Long term stability • Industry standard dual in line package • Material categorization: for definitions of i179009-1 compliance please see www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES AGENCY APPROVALS
• UL
D 3 3 D 3D Models Design Tools Related Models Footprints
• cUL
Documents
• DIN EN 60747-5-5 (VDE 0884), available with option 1 • BSI EN 62368-1
Schematics
• CQC GB4943.1-2011
DESCRIPTION
• CQC GB8898-2011 The MOC8101, MOC8102, MOC8103, MOC8104 family optocoupler consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon planar phototransistor detector in a plastic plug-in DIP-6 package. The coupling device is suitable for signal transmission between two electrically separated circuits. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. The base terminal of the MOC8101, MOC8102, MOC8103, MOC8104 is not connected, resulting in a substantially improved common mode interference immunity.
ORDERING INFORMATION
Option 6
M O C 8 1 0 # - # X 0 # # T
DIP-# PART NUMBER CTR PACKAGE OPTION TAPE 7.62 mm 10.16 mm BIN AND REEL Option 7 Option 9 > 0.7 mm > 0.1 mm
CTR (%) AGENCY CERTIFIED / PACKAGE 10 mA UL, cUL, BSI, CQC 50 to 80 73 to 117 108 to 173 160 to 256
DIP-6 MOC8101 MOC8102 MOC8103 MOC8104 DIP-6, 400 mil, option 6 - MOC8102-X006 - - SMD-6, option 9 - MOC8102-X009 (1) - -
UL, cUL, BSI, CQC, VDE (Option 1) 50 to 80 73 to 117 108 to 173 160 to 256
DIP-6 - - MOC8103-X001 - DIP-6, 400 mil - MOC8102-X016 - MOC8104-X016 SMD-6, option 7 MOC8101-X017T MOC8102-X017T (1) - - SMD-6, option 9 - - - MOC8104-X019T
Notes
• Additional options may be possible, please contact sales office (1) Also available in tubes; do not put T on end Rev. 1.8, 13-Apr-2023
1
Document Number: 83660 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
