Datasheet MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M (ON Semiconductor) - 7
| Hersteller | ON Semiconductor |
| Beschreibung | 6-Pin DIP Zero-Cross Triac Driver Optocoupler (600 Volt Peak) |
| Seiten / Seite | 12 / 7 — MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M. Figure 11. Reflow … |
| Dateiformat / Größe | PDF / 276 Kb |
| Dokumentensprache | Englisch |

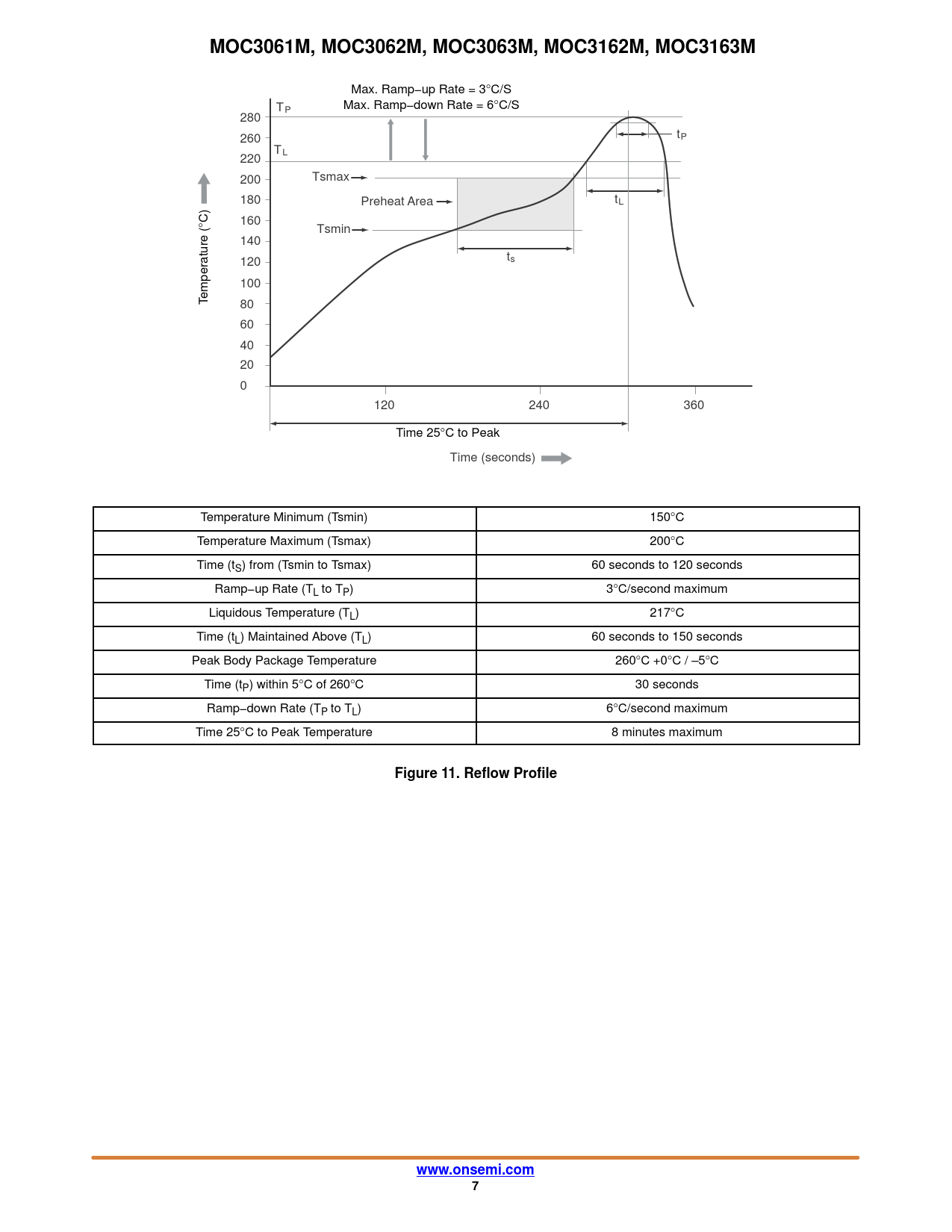

MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M. Figure 11. Reflow Profile. www.onsemi.com
Modelllinie für dieses Datenblatt
Textversion des Dokuments
MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M
Max. Ramp−up Rate = 3°C/S T Max. Ramp−down Rate = 6°C/S P 280 tP 260 TL 220 Tsmax 200 180 Preheat Area tL °C) 160 ( Tsmin 140 ts 120 100 emperature T 80 60 40 20 0 120 240 360 Time 25°C to Peak Time (seconds) Temperature Minimum (Tsmin) 150°C Temperature Maximum (Tsmax) 200°C Time (tS) from (Tsmin to Tsmax) 60 seconds to 120 seconds Ramp−up Rate (TL to TP) 3°C/second maximum Liquidous Temperature (TL) 217°C Time (tL) Maintained Above (TL) 60 seconds to 150 seconds Peak Body Package Temperature 260°C +0°C / –5°C Time (tP) within 5°C of 260°C 30 seconds Ramp−down Rate (TP to TL) 6°C/second maximum Time 25°C to Peak Temperature 8 minutes maximum
Figure 11. Reflow Profile www.onsemi.com 7
Max. Ramp−up Rate = 3°C/S T Max. Ramp−down Rate = 6°C/S P 280 tP 260 TL 220 Tsmax 200 180 Preheat Area tL °C) 160 ( Tsmin 140 ts 120 100 emperature T 80 60 40 20 0 120 240 360 Time 25°C to Peak Time (seconds) Temperature Minimum (Tsmin) 150°C Temperature Maximum (Tsmax) 200°C Time (tS) from (Tsmin to Tsmax) 60 seconds to 120 seconds Ramp−up Rate (TL to TP) 3°C/second maximum Liquidous Temperature (TL) 217°C Time (tL) Maintained Above (TL) 60 seconds to 150 seconds Peak Body Package Temperature 260°C +0°C / –5°C Time (tP) within 5°C of 260°C 30 seconds Ramp−down Rate (TP to TL) 6°C/second maximum Time 25°C to Peak Temperature 8 minutes maximum
Figure 11. Reflow Profile www.onsemi.com 7
