Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps. 4 ELECTRICAL CHARACTERISTICS (continued). PARAMETER. SYMBOL
Modelllinie für dieses Datenblatt
Textversion des Dokuments

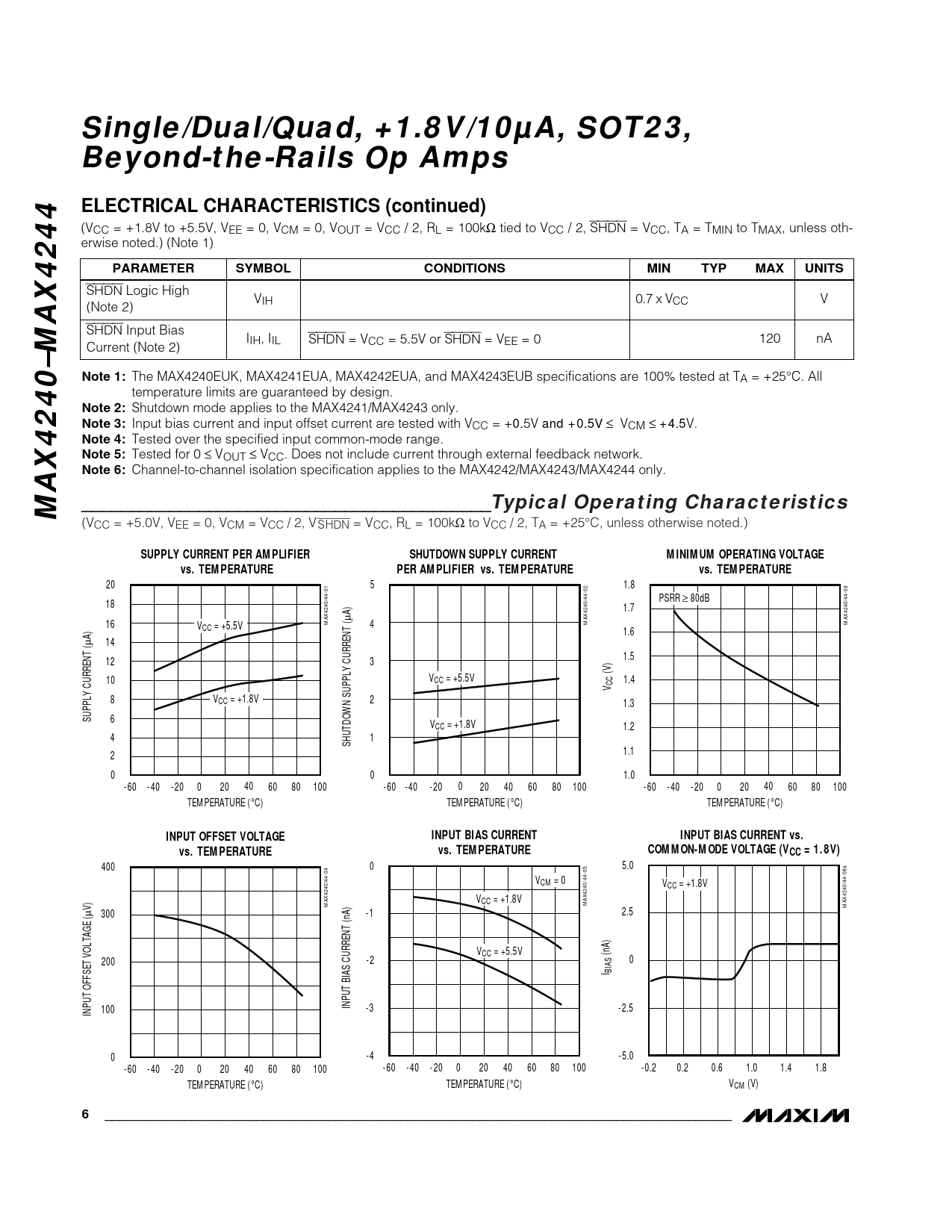

Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps 4 ELECTRICAL CHARACTERISTICS (continued)
(VCC = +1.8V to +5.5V, VEE = 0, VCM = 0, VOUT = VCC / 2, RL = 100kΩ tied to VCC / 2, SHDN = VCC, TA = TMIN to TMAX, unless oth- erwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
SHDN Logic High V (Note 2) IH 0.7 x VCC V SHDN Input Bias I Current (Note 2) IH, IIL SHDN = VCC = 5.5V or SHDN = VEE = 0 120 nA
Note 1:
The MAX4240EUK, MAX4241EUA, MAX4242EUA, and MAX4243EUB specifications are 100% tested at TA = +25°C. All temperature limits are guaranteed by design.
Note 2:
Shutdown mode applies to the MAX4241/MAX4243 only.
Note 3:
Input bias current and input offset current are tested with VCC = +0.5V and +0.5V ≤ VCM ≤ +4.5V.
Note 4:
Tested over the specified input common-mode range.
Note 5:
Tested for 0 ≤ VOUT ≤ VCC. Does not include current through external feedback network.
Note 6:
Channel-to-channel isolation specification applies to the MAX4242/MAX4243/MAX4244 only.
MAX4240–MAX424 __________________________________________Typical Operating Characteristics
(VCC = +5.0V, VEE = 0, VCM = VCC / 2, VSHDN = VCC, RL = 100kΩ to VCC / 2, TA = +25°C, unless otherwise noted.)
SUPPLY CURRENT PER AMPLIFIER SHUTDOWN SUPPLY CURRENT MINIMUM OPERATING VOLTAGE vs. TEMPERATURE PER AMPLIFIER vs. TEMPERATURE vs. TEMPERATURE
20 5 1.8 PSRR ≥ 80dB 18 1.7 µA) MAX4240/44-01 MAX4240/44-02 16 V MAX4240/44-03 CC = +5.5V 4 1.6 µA) 14 1.5 12 3 (V) V 10 CC = +5.5V 1.4 V CC 8 VCC = +1.8V 2 1.3 SUPPLY CURRENT ( 6 VCC = +1.8V 1.2 4 1 SHUTDOWN SUPPLY CURRENT ( 1.1 2 0 0 1.0 -60 -40 -20 0 20 40 60 80 100 -60 -40 -20 0 20 40 60 80 100 -60 -40 -20 0 20 40 60 80 100 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C)
INPUT OFFSET VOLTAGE INPUT BIAS CURRENT INPUT BIAS CURRENT vs. vs. TEMPERATURE vs. TEMPERATURE COMMON-MODE VOLTAGE (VCC = 1.8V)
400 0 5.0 VCM = 0 VCC = +1.8V VCC = +1.8V MAX4240/44-05 µV) MAX4240/44-04 MAX4240/44-06a 300 -1 2.5 VCC = +5.5V (nA) 200 -2 0 I BIAS INPUT BIAS CURRENT (nA) INPUT OFFSET VOLTAGE ( 100 -3 -2.5 0 -4 -5.0 -60 -40 -20 0 20 40 60 80 100 -60 -40 -20 0 20 40 60 80 100 -0.2 0.2 0.6 1.0 1.4 1.8 TEMPERATURE (°C) TEMPERATURE (°C) VCM (V)
6 _______________________________________________________________________________________
