Datasheet MAX4240, MAX4241, MAX4242, MAX4243, MAX4244 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps |
| Seiten / Seite | 16 / 2 — Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps. 4 ABSOLUTE … |
| Dateiformat / Größe | PDF / 2.8 Mb |
| Dokumentensprache | Englisch |
Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps. 4 ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

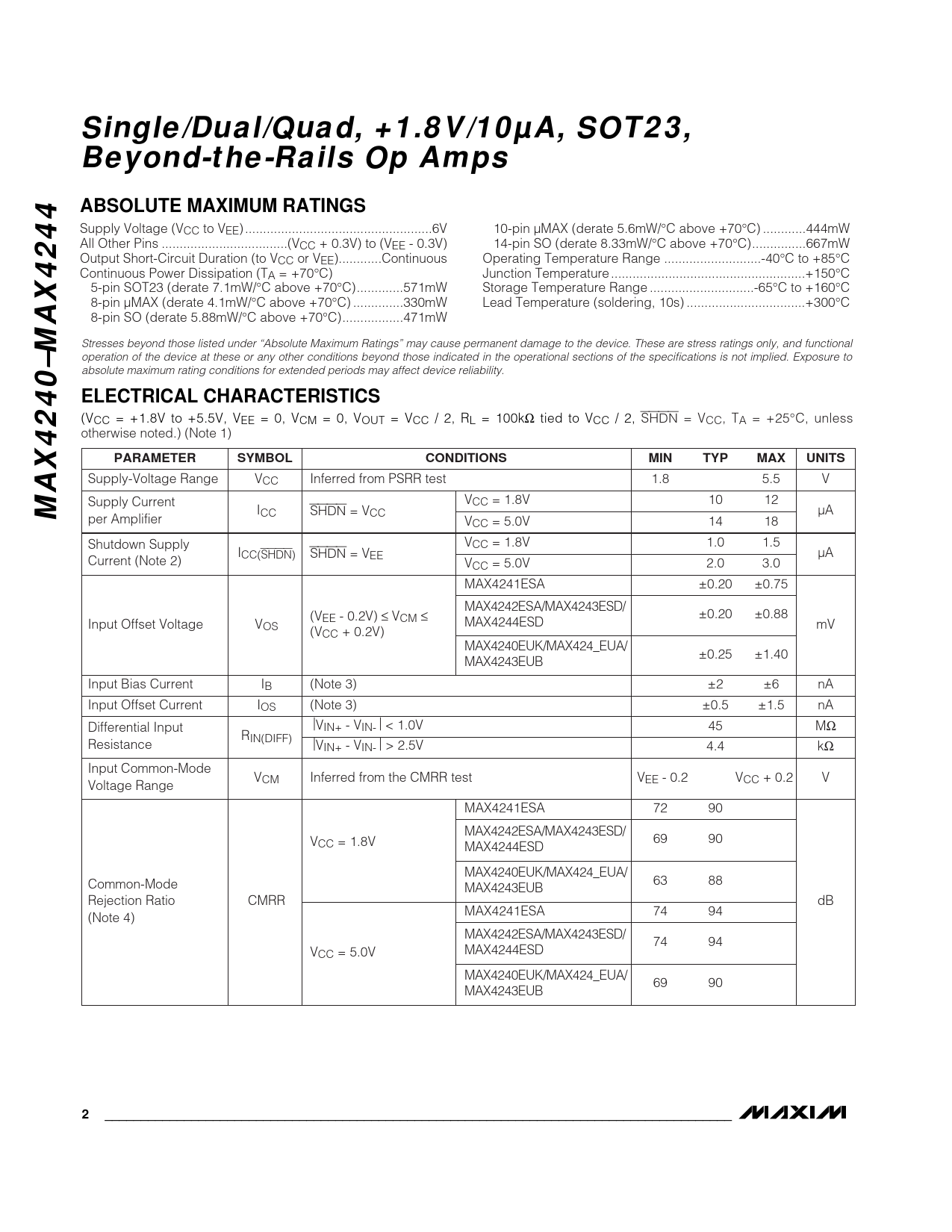

Single/Dual/Quad, +1.8V/10µA, SOT23, Beyond-the-Rails Op Amps 4 ABSOLUTE MAXIMUM RATINGS
Supply Voltage (VCC to VEE)..6V 10-pin µMAX (derate 5.6mW/°C above +70°C) ..444mW All Other Pins ...(VCC + 0.3V) to (VEE - 0.3V) 14-pin SO (derate 8.33mW/°C above +70°C)...667mW Output Short-Circuit Duration (to VCC or VEE)..Continuous Operating Temperature Range ...-40°C to +85°C Continuous Power Dissipation (TA = +70°C) Junction Temperature..+150°C 5-pin SOT23 (derate 7.1mW/°C above +70°C)...571mW Storage Temperature Range ...-65°C to +160°C 8-pin µMAX (derate 4.1mW/°C above +70°C) ..330mW Lead Temperature (soldering, 10s) ...+300°C 8-pin SO (derate 5.88mW/°C above +70°C)...471mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VCC = +1.8V to +5.5V, VEE = 0, VCM = 0, VOUT = VCC / 2, RL = 100kΩ tied to VCC / 2, SHDN = VCC, TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply-Voltage Range VCC Inferred from PSRR test 1.8 5.5 V V
MAX4240–MAX424
Supply Current CC = 1.8V 10 12 ICC SHDN = VCC µA per Amplifier VCC = 5.0V 14 18 Shutdown Supply VCC = 1.8V 1.0 1.5 ICC(SHDN) SHDN = VEE µA Current (Note 2) VCC = 5.0V 2.0 3.0 MAX4241ESA ±0.20 ±0.75 MAX4242ESA/MAX4243ESD/ (V ±0.20 ±0.88 Input Offset Voltage V EE - 0.2V) ≤ VCM ≤ OS MAX4244ESD mV (VCC + 0.2V) MAX4240EUK/MAX424_EUA/ ±0.25 ±1.40 MAX4243EUB Input Bias Current IB (Note 3) ±2 ±6 nA Input Offset Current IOS (Note 3) ±0.5 ±1.5 nA Differential Input ⎥ VIN+ - VIN-⎥ < 1.0V 45 MΩ R Resistance IN(DIFF) ⎥ VIN+ - VIN-⎥ > 2.5V 4.4 kΩ Input Common-Mode VCM Inferred from the CMRR test VEE - 0.2 VCC + 0.2 V Voltage Range MAX4241ESA 72 90 MAX4242ESA/MAX4243ESD/ VCC = 1.8V 69 90 MAX4244ESD MAX4240EUK/MAX424_EUA/ Common-Mode 63 88 MAX4243EUB Rejection Ratio CMRR dB (Note 4) MAX4241ESA 74 94 MAX4242ESA/MAX4243ESD/ 74 94 VCC = 5.0V MAX4244ESD MAX4240EUK/MAX424_EUA/ 69 90 MAX4243EUB
