Datasheet SiC931 (Vishay) - 3
| Hersteller | Vishay |
| Beschreibung | 4.5 V to 18 V Input, 20 A MicroBRICK DC/DC Regulator Module |
| Seiten / Seite | 22 / 3 — SiC931. ORDERING INFORMATION. OPERATION. MINIMUM. PART. LIGHT LOAD. PART … |
| Dateiformat / Größe | PDF / 3.6 Mb |
| Dokumentensprache | Englisch |
SiC931. ORDERING INFORMATION. OPERATION. MINIMUM. PART. LIGHT LOAD. PART NUMBER. DD,. JUNCTION. PACKAGE. PACKAGING. ORDER. MARKING. VDRV. MODE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SiC931
www.vishay.com Vishay Siliconix

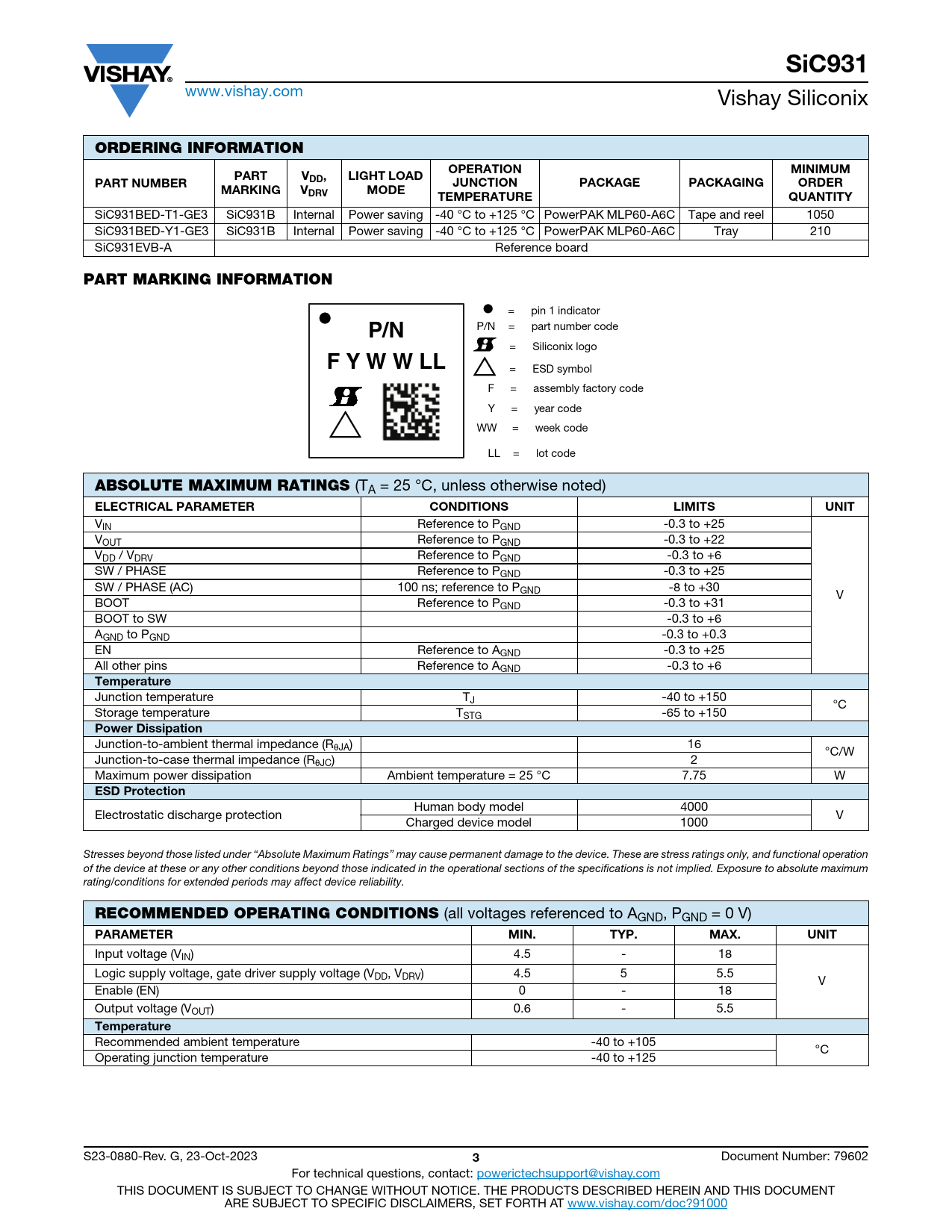

ORDERING INFORMATION OPERATION MINIMUM PART V LIGHT LOAD PART NUMBER DD, JUNCTION PACKAGE PACKAGING ORDER MARKING VDRV MODE TEMPERATURE QUANTITY
SiC931BED-T1-GE3 SiC931B Internal Power saving -40 °C to +125 °C PowerPAK MLP60-A6C Tape and reel 1050 SiC931BED-Y1-GE3 SiC931B Internal Power saving -40 °C to +125 °C PowerPAK MLP60-A6C Tray 210 SiC931EVB-A Reference board
PART MARKING INFORMATION
= pin 1 indicator P/N = part number code
P/N
= Siliconix logo
F Y W W LL
= ESD symbol F = assembly factory code Y = year code WW = week code LL = lot code
ABSOLUTE MAXIMUM RATINGS
(TA = 25 °C, unless otherwise noted)
ELECTRICAL PARAMETER CONDITIONS LIMITS UNIT
VIN Reference to PGND -0.3 to +25 VOUT Reference to PGND -0.3 to +22 VDD / VDRV Reference to PGND -0.3 to +6 SW / PHASE Reference to PGND -0.3 to +25 SW / PHASE (AC) 100 ns; reference to PGND -8 to +30 V BOOT Reference to PGND -0.3 to +31 BOOT to SW -0.3 to +6 AGND to PGND -0.3 to +0.3 EN Reference to AGND -0.3 to +25 All other pins Reference to AGND -0.3 to +6
Temperature
Junction temperature TJ -40 to +150 °C Storage temperature TSTG -65 to +150
Power Dissipation
Junction-to-ambient thermal impedance (RJA) 16 °C/W Junction-to-case thermal impedance (RJC) 2 Maximum power dissipation Ambient temperature = 25 °C 7.75 W
ESD Protection
Human body model 4000 Electrostatic discharge protection V Charged device model 1000 Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating/conditions for extended periods may affect device reliability.
RECOMMENDED OPERATING CONDITIONS
(all voltages referenced to AGND, PGND = 0 V)
PARAMETER MIN. TYP. MAX. UNIT
Input voltage (VIN) 4.5 - 18 Logic supply voltage, gate driver supply voltage (VDD, VDRV) 4.5 5 5.5 V Enable (EN) 0 - 18 Output voltage (VOUT) 0.6 - 5.5
Temperature
Recommended ambient temperature -40 to +105 °C Operating junction temperature -40 to +125 S23-0880-Rev. G, 23-Oct-2023
