Datasheet 74HC595 (Diodes) - 4
| Hersteller | Diodes |
| Beschreibung | 8-bit Shift Register With 8-bit Output Register |
| Seiten / Seite | 11 / 4 — 74HC595. Absolute Maximum Ratings. Symbol. Description. Rating. Unit. … |
| Dateiformat / Größe | PDF / 608 Kb |
| Dokumentensprache | Englisch |

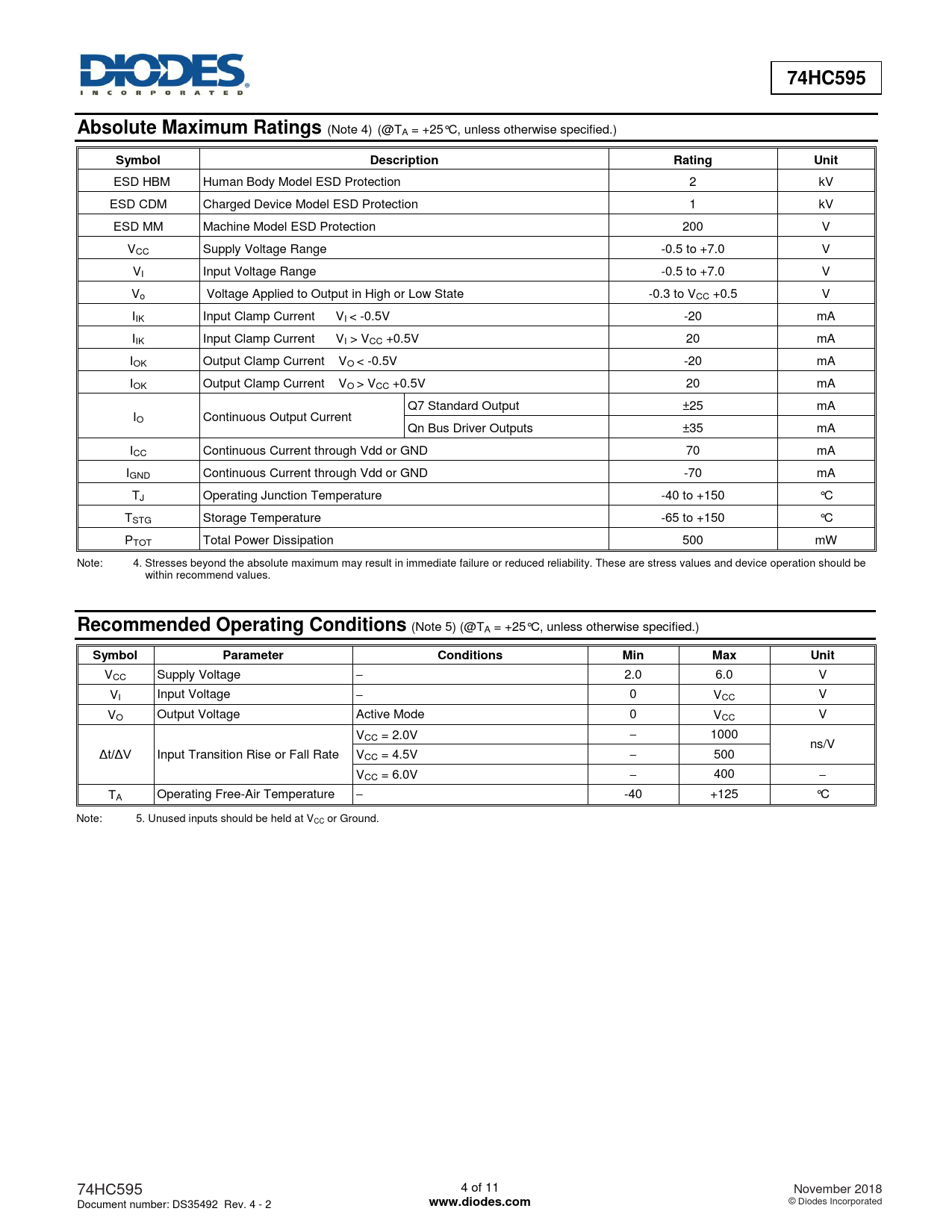

74HC595. Absolute Maximum Ratings. Symbol. Description. Rating. Unit. Recommended Operating Conditions. Parameter. Conditions. Min. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments
74HC595 Absolute Maximum Ratings
(Note 4) (@TA = +25°C, unless otherwise specified.)
Symbol Description Rating Unit
ESD HBM Human Body Model ESD Protection 2 kV ESD CDM Charged Device Model ESD Protection 1 kV ESD MM Machine Model ESD Protection 200 V VCC Supply Voltage Range -0.5 to +7.0 V VI Input Voltage Range -0.5 to +7.0 V Vo Voltage Applied to Output in High or Low State -0.3 to VCC +0.5 V IIK Input Clamp Current VI < -0.5V -20 mA IIK Input Clamp Current VI > VCC +0.5V 20 mA IOK Output Clamp Current VO < -0.5V -20 mA IOK Output Clamp Current VO > VCC +0.5V 20 mA Q7 Standard Output ±25 mA IO Continuous Output Current Qn Bus Driver Outputs ±35 mA ICC Continuous Current through Vdd or GND 70 mA IGND Continuous Current through Vdd or GND -70 mA TJ Operating Junction Temperature -40 to +150 °C TSTG Storage Temperature -65 to +150 °C PTOT Total Power Dissipation 500 mW Note: 4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should be within recommend values.
Recommended Operating Conditions
(Note 5) (@TA = +25°C, unless otherwise specified.)
Symbol Parameter Conditions Min Max Unit
VCC Supply Voltage 2.0 6.0 V VI Input Voltage 0 VCC V VO Output Voltage Active Mode 0 VCC V VCC = 2.0V 1000 ns/V Δt/ΔV Input Transition Rise or Fall Rate VCC = 4.5V 500 VCC = 6.0V 400 TA Operating Free-Air Temperature -40 +125 °C Note: 5. Unused inputs should be held at VCC or Ground. 74HC595 4 of 11 November 2018 Document number: DS35492 Rev. 4 - 2
