Datasheet NSI50350AD (ON Semiconductor) - 8
| Hersteller | ON Semiconductor |
| Beschreibung | Constant Current Regulator & LED Driver 50 V, 350 mA +- 10%, 11 W Package |
| Seiten / Seite | 9 / 8 — PACKAGE DIMENSIONS. DPAK (SINGLE GAUGE). SCALE 1:1. GENERIC. MARKING … |
| Dateiformat / Größe | PDF / 255 Kb |
| Dokumentensprache | Englisch |
PACKAGE DIMENSIONS. DPAK (SINGLE GAUGE). SCALE 1:1. GENERIC. MARKING DIAGRAM*. Discrete. DOCUMENT NUMBER: 98AON10527D. DESCRIPTION:
Modelllinie für dieses Datenblatt
Textversion des Dokuments

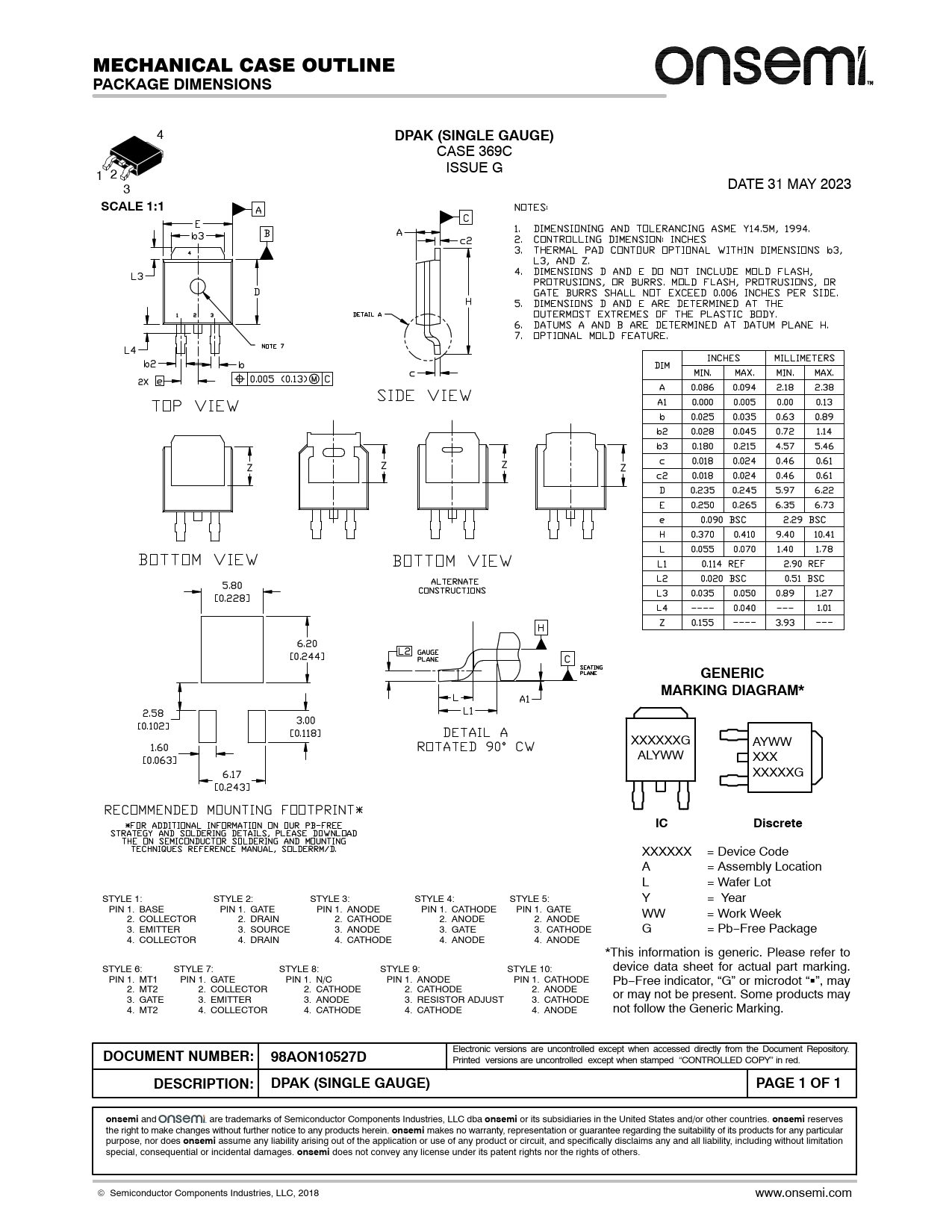

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
4
DPAK (SINGLE GAUGE)
CASE 369C ISSUE G 1 2 DATE 31 MAY 2023 3
SCALE 1:1 GENERIC MARKING DIAGRAM*
XXXXXXG AYWW ALYWW XXX XXXXXG
IC Discrete
XXXXXX = Device Code A = Assembly Location L = Wafer Lot STYLE 1: STYLE 2: STYLE 3: STYLE 4: STYLE 5: Y = Year PIN 1. BASE PIN 1. GATE PIN 1. ANODE PIN 1. CATHODE PIN 1. GATE WW = Work Week 2. COLLECTOR 2. DRAIN 2. CATHODE 2. ANODE 2. ANODE 3. EMITTER 3. SOURCE 3. ANODE 3. GATE 3. CATHODE G = Pb−Free Package 4. COLLECTOR 4. DRAIN 4. CATHODE 4. ANODE 4. ANODE *This information is generic. Please refer to STYLE 6: STYLE 7: STYLE 8: STYLE 9: STYLE 10: device data sheet for actual part marking. PIN 1. MT1 PIN 1. GATE PIN 1. N/C PIN 1. ANODE PIN 1. CATHODE Pb−Free indicator, “G” or microdot “G”, may 2. MT2 2. COLLECTOR 2. CATHODE 2. CATHODE 2. ANODE 3. GATE 3. EMITTER 3. ANODE 3. RESISTOR ADJUST 3. CATHODE or may not be present. Some products may 4. MT2 4. COLLECTOR 4. CATHODE 4. CATHODE 4. ANODE not follow the Generic Marking.
DOCUMENT NUMBER: 98AON10527D
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: DPAK (SINGLE GAUGE) PAGE 1 OF 1 onsemi
and are trademarks of Semiconductor Components Industries, LLC dba
onsemi
or its subsidiaries in the United States and/or other countries.
onsemi
reserves the right to make changes without further notice to any products herein.
onsemi
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does
onsemi
assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
onsemi
does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com
