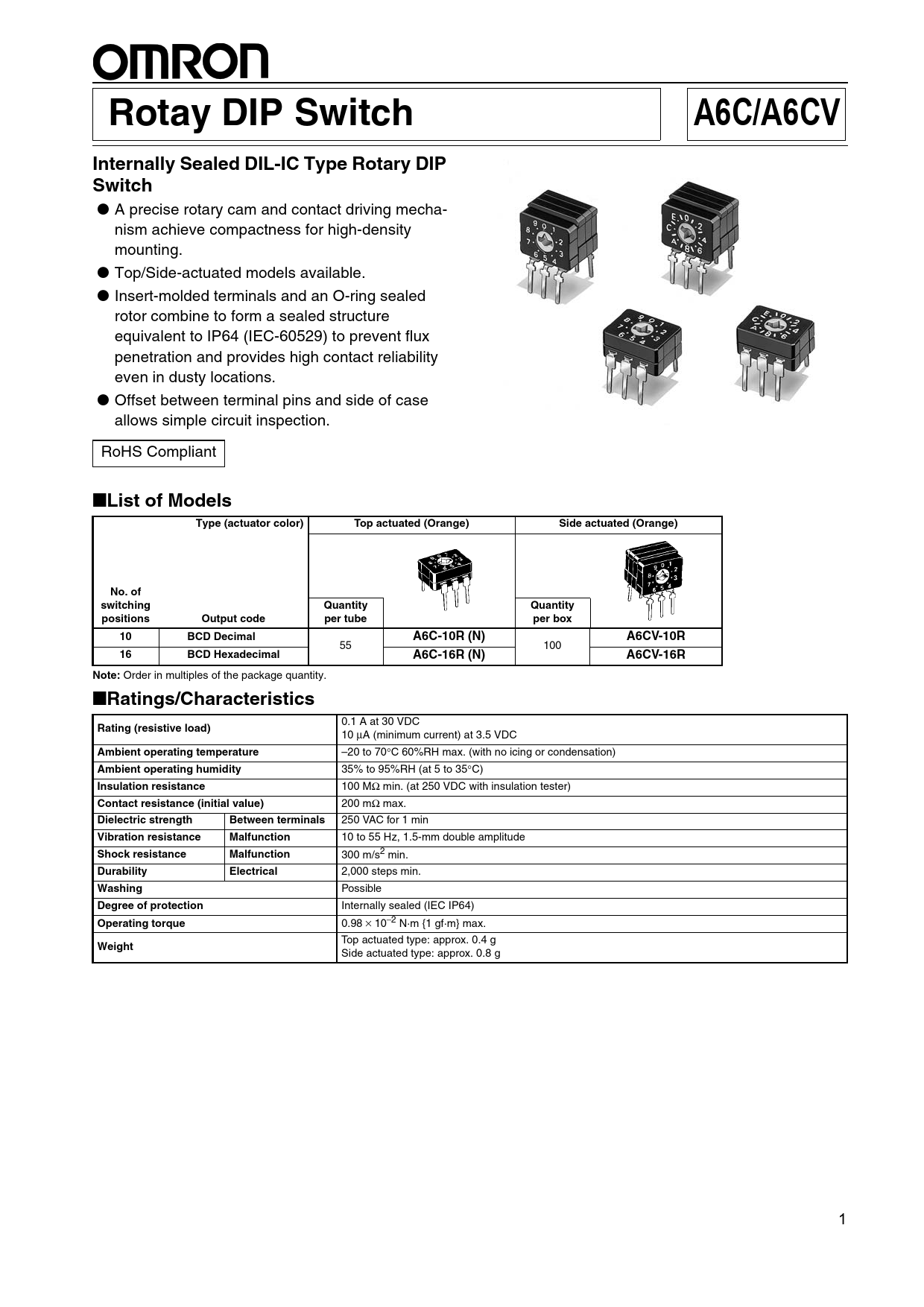

Datasheet A6C, A6CV (Omron)

Rotay DIP Switch A6C/A6CV Internally Sealed DIL-IC Type Rotary DIP Switch
● A precise rotary cam and contact driving mecha- nism achieve compactness for high-density mounting. ● Top/Side-actuated models available. ● Insert-molded terminals and an O-ring sealed rotor combine to form a sealed structure equivalent to IP64 (IEC-60529) to prevent flux penetration and provides high contact reliability even in dusty locations. ● Offset between terminal pins and side of case allows simple circuit inspection. RoHS Compliant ■
List of Models Type (actuator color) Top actuated (Orange) Side actuated (Orange) No. of switching Quantity Quantity positions Output code per tube per box 10 BCD Decimal A6C-10R (N) A6CV-10R
55 100
16 BCD Hexadecimal A6C-16R (N) A6CV-16R Note:
Order in multiples of the package quantity. ■
Ratings/Characteristics
0.1 A at 30 VDC
Rating (resistive load)
10 μA (minimum current) at 3.5 VDC
Ambient operating temperature
–20 to 70°C 60%RH max. (with no icing or condensation)
Ambient operating humidity
35% to 95%RH (at 5 to 35°C)
Insulation resistance
100 MΩ min. (at 250 VDC with insulation tester)
Contact resistance (initial value)
200 mΩ max.
Dielectric strength Between terminals
250 VAC for 1 min
Vibration resistance Malfunction
10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction
300 m/s2 min.
Durability Electrical
2,000 steps min.
Washing
Possible
Degree of protection
Internally sealed (IEC IP64)
Operating torque
0.98 × 10−2 N·m {1 gf·m} max. Top actuated type: approx. 0.4 g
Weight
Side actuated type: approx. 0.8 g 1
