Datasheet X100-7 THD (First Sensor)

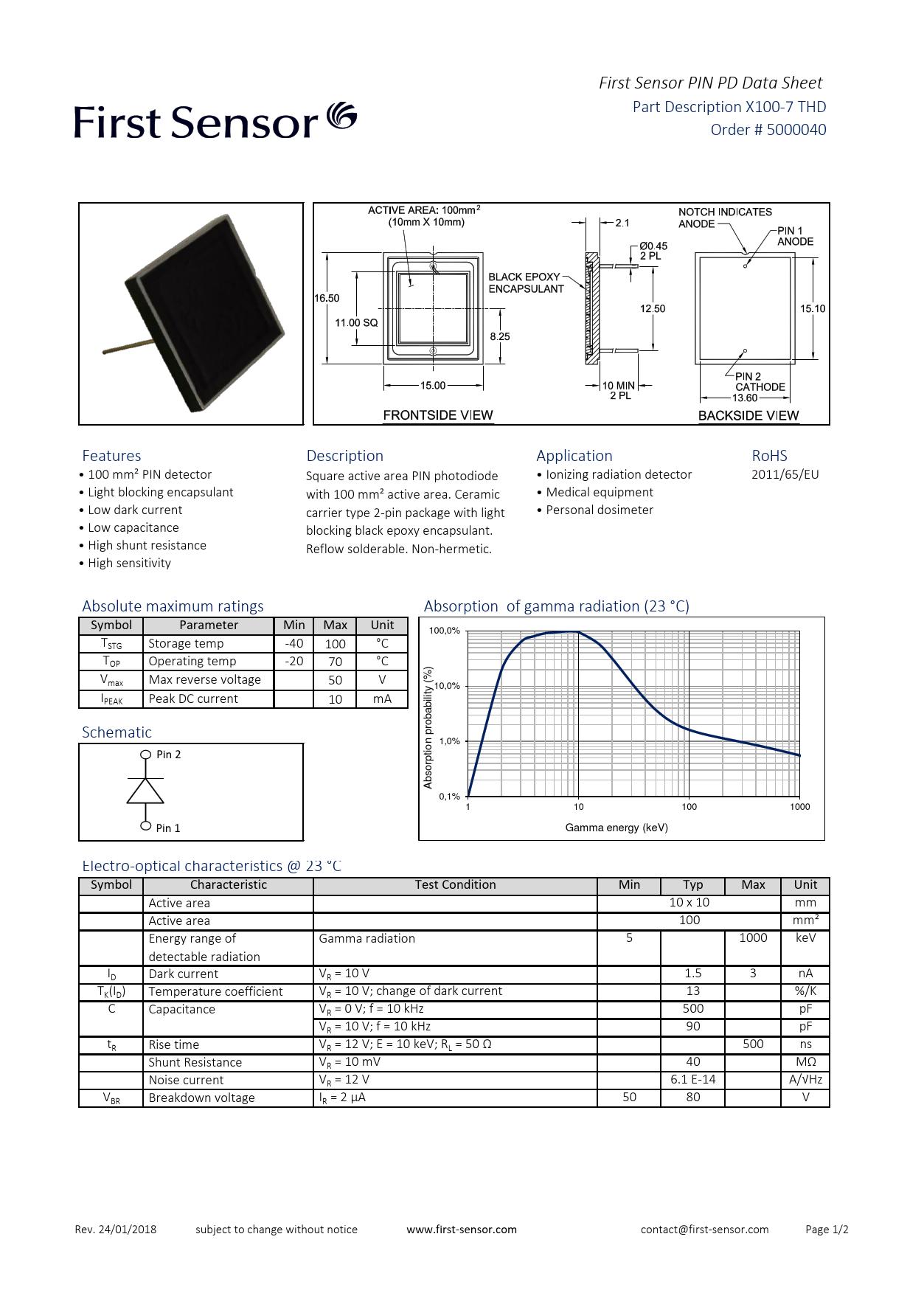

First Sensor PIN PD Data Sheet Part Description X100-7 THD Order # 5000040 Features Description Application RoHS • 100 mm² PIN detector Square active area PIN photodiode • Ionizing radiation detector 2011/65/EU • Light blocking encapsulant with 100 mm² active area. Ceramic • Medical equipment • Low dark current • Personal dosimeter carrier type 2-pin package with light • Low capacitance blocking black epoxy encapsulant. • High shunt resistance Reflow solderable. Non-hermetic. • High sensitivity Absolute maximum ratings Absorption of gamma radiation (23 °C) Symbol Parameter Min Max Unit 100,0% TSTG Storage temp -40 100 °C TOP Operating temp -20 70 °C ) V % max Max reverse voltage 50 V ( 10,0% I ity PEAK Peak DC current 10 mA il b a b o Schematic r p n 1,0% tio Pin 2 pr so b A 0,1% 1 10 100 1000 Pin 1 Gamma energy (keV) Electro-optical characteristics @ 23 °C Symbol Characteristic Test Condition Min Typ Max Unit Active area 10 x 10 mm Active area 100 mm² Energy range of Gamma radiation 5 1000 keV detectable radiation ID Dark current VR = 10 V 1.5 3 nA TK(ID) Temperature coefficient VR = 10 V; change of dark current 13 %/K C Capacitance VR = 0 V; f = 10 kHz 500 pF VR = 10 V; f = 10 kHz 90 pF tR Rise time VR = 12 V; E = 10 keV; RL = 50 Ω 500 ns Shunt Resistance VR = 10 mV 40 MΩ Noise current VR = 12 V 6.1 E-14 A/√Hz VBR Breakdown voltage IR = 2 µA 50 80 V Rev. 24/01/2018 subject to change without notice www.first-sensor.com contact@first-sensor.com Page 1/2
