Datasheet EDR1, EDR2, EDR3 (ECE) - 3
| Hersteller | ECE |
| Beschreibung | Reed Relay |
| Seiten / Seite | 8 / 3 — Rely on ECE’s Relays,. and You Always Relax!. PART NUMBER SYSTEM |
| Dateiformat / Größe | PDF / 300 Kb |
| Dokumentensprache | Englisch |
Rely on ECE’s Relays,. and You Always Relax!. PART NUMBER SYSTEM
Modelllinie für dieses Datenblatt
- EDR1D1A0500Z EDR1D1A0550Z EDR1D1A1200Z EDR1D1A1250Z EDR1D1A2400Z EDR1D1A2450Z EDR1N1A0500Z EDR1N1A0550Z EDR1N1A1200Z EDR1N1A1250Z EDR1N1A2400Z EDR1N1A2450Z
- EDR2D1A0500Z EDR2D1A0550Z EDR2D1A1200Z EDR2D1A1250Z EDR2D1A2400Z EDR2D1A2450Z EDR2D1B0500Z EDR2D1B0550Z EDR2D1B1200Z EDR2D1B1250Z EDR2D1B2400Z EDR2D1B2450Z EDR2D1C0500Z EDR2D1C0550Z EDR2D1C1200Z EDR2D1C1250Z EDR2D1C2400Z EDR2D1C2450Z EDR2D2A0500Z EDR2D2A0550Z EDR2D2A1200Z EDR2D2A1250Z EDR2D2A2400Z EDR2D2A2450Z EDR2N1A0500Z EDR2N1A0550Z EDR2N1A1200Z EDR2N1A1250Z EDR2N1A2400Z EDR2N1A2450Z EDR2N1B0500Z EDR2N1B0550Z EDR2N1B1200Z EDR2N1B1250Z EDR2N1B2400Z EDR2N1B2450Z EDR2N1C0500Z EDR2N1C0550Z EDR2N1C1200Z EDR2N1C1250Z EDR2N1C2400Z EDR2N1C2450Z EDR2N2A0500Z EDR2N2A0550Z EDR2N2A1200Z EDR2N2A1250Z EDR2N2A2400Z EDR2N2A2450Z
- EDR3D1A0500Z EDR3D1A0550Z EDR3D1A1200Z EDR3D1A1250Z EDR3D1A2400Z EDR3D1A2450Z EDR3D1B0500Z EDR3D1B0550Z EDR3D1B1200Z EDR3D1B1250Z EDR3D1B2400Z EDR3D1B2450Z EDR3D1C0500Z EDR3D1C0550Z EDR3D1C1200Z EDR3D1C1250Z EDR3D1C2400Z EDR3D1C2450Z EDR3D2A0500Z EDR3D2A0550Z EDR3D2A1200Z EDR3D2A1250Z EDR3D2A2400Z EDR3D2A2450Z EDR3N1A0500Z EDR3N1A0550Z EDR3N1A1200Z EDR3N1A1250Z EDR3N1A2400Z EDR3N1A2450Z EDR3N1B0500Z EDR3N1B0550Z EDR3N1B1200Z EDR3N1B1250Z EDR3N1B2400Z EDR3N1B2450Z EDR3N1C0500Z EDR3N1C0550Z EDR3N1C1200Z EDR3N1C1250Z EDR3N1C2400Z EDR3N1C2450Z EDR3N2A0500Z EDR3N2A0550Z EDR3N2A1200Z EDR3N2A1250Z EDR3N2A2400Z EDR3N2A2450Z
Textversion des Dokuments
Rely on ECE’s Relays, and You Always Relax!
■

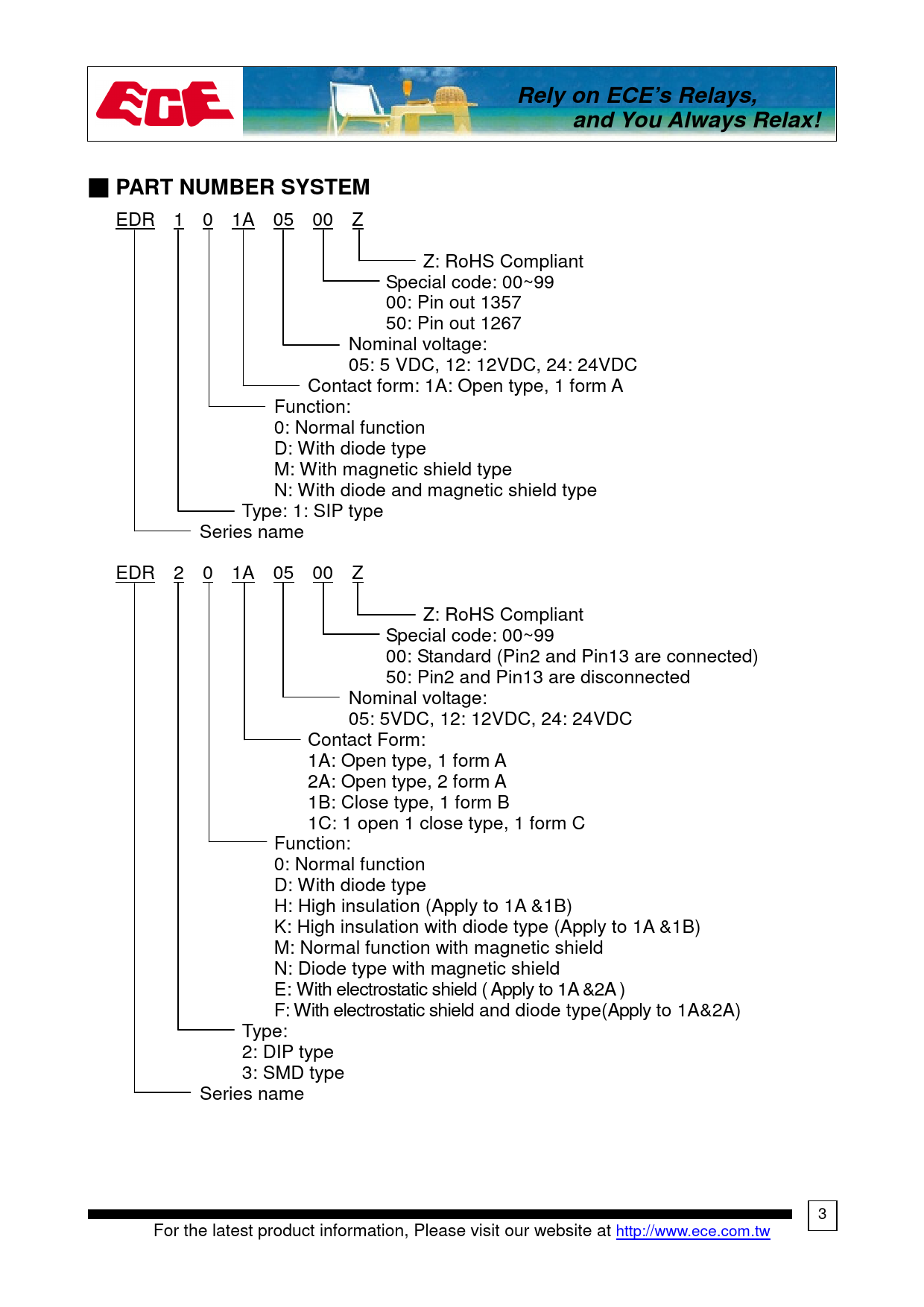

PART NUMBER SYSTEM
EDR 1 0 1A 05 00 Z Z: RoHS Compliant Special code: 00~99 00: Pin out 1357 50: Pin out 1267 Nominal voltage: 05: 5 VDC, 12: 12VDC, 24: 24VDC Contact form: 1A: Open type, 1 form A Function: 0: Normal function D: With diode type M: With magnetic shield type N: With diode and magnetic shield type Type: 1: SIP type Series name EDR 2 0 1A 05 00 Z Z: RoHS Compliant Special code: 00~99 00: Standard (Pin2 and Pin13 are connected) 50: Pin2 and Pin13 are disconnected Nominal voltage: 05: 5VDC, 12: 12VDC, 24: 24VDC Contact Form: 1A: Open type, 1 form A 2A: Open type, 2 form A 1B: Close type, 1 form B 1C: 1 open 1 close type, 1 form C Function: 0: Normal function D: With diode type H: High insulation (Apply to 1A &1B) K: High insulation with diode type (Apply to 1A &1B) M: Normal function with magnetic shield N: Diode type with magnetic shield E: With electrostatic shield ( Apply to 1A &2A ) F: With electrostatic shield and diode type(Apply to 1A&2A) Type: 2: DIP type 3: SMD type Series name 3 For the latest product information, Please visit our website at http://www.ece.com.tw
■
PART NUMBER SYSTEM
EDR 1 0 1A 05 00 Z Z: RoHS Compliant Special code: 00~99 00: Pin out 1357 50: Pin out 1267 Nominal voltage: 05: 5 VDC, 12: 12VDC, 24: 24VDC Contact form: 1A: Open type, 1 form A Function: 0: Normal function D: With diode type M: With magnetic shield type N: With diode and magnetic shield type Type: 1: SIP type Series name EDR 2 0 1A 05 00 Z Z: RoHS Compliant Special code: 00~99 00: Standard (Pin2 and Pin13 are connected) 50: Pin2 and Pin13 are disconnected Nominal voltage: 05: 5VDC, 12: 12VDC, 24: 24VDC Contact Form: 1A: Open type, 1 form A 2A: Open type, 2 form A 1B: Close type, 1 form B 1C: 1 open 1 close type, 1 form C Function: 0: Normal function D: With diode type H: High insulation (Apply to 1A &1B) K: High insulation with diode type (Apply to 1A &1B) M: Normal function with magnetic shield N: Diode type with magnetic shield E: With electrostatic shield ( Apply to 1A &2A ) F: With electrostatic shield and diode type(Apply to 1A&2A) Type: 2: DIP type 3: SMD type Series name 3 For the latest product information, Please visit our website at http://www.ece.com.tw
