HCPL-7800A/HCPL-7800
Data Sheet Isolation Amplifer

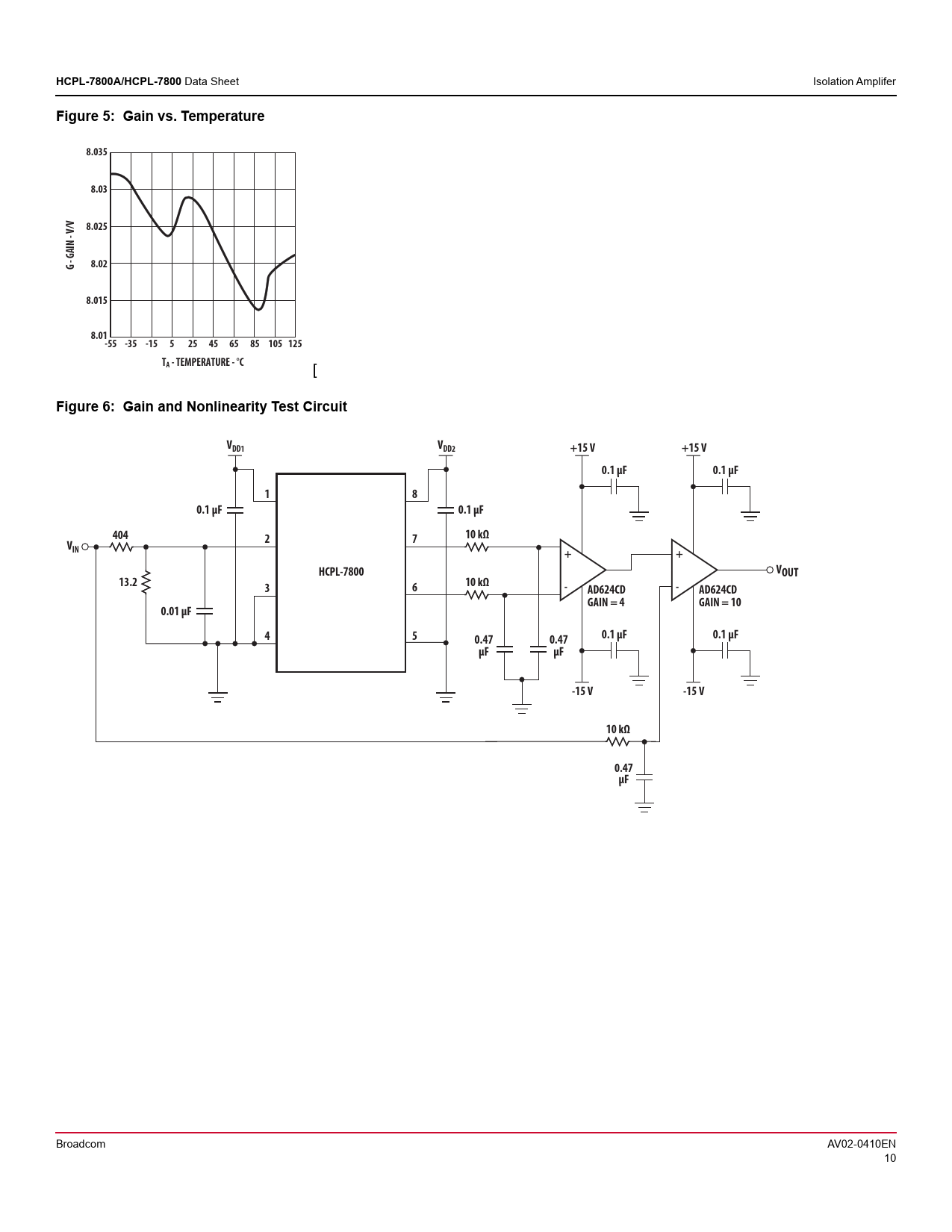

Figure 5: Gain vs. Temperature 8.035 8.03 8.025 G - GAIN - V/V 8.02 8.015 8.01-55 -35 -15 5 25 45 65 85 105 125 TA - TEMPERATURE - °C
[
Figure 6: Gain and Nonlinearity Test Circuit VDD1 VDD2 +15 V +15 V 0.1 μF 0.1 μF 1 8 0.1 μF 0.1 μF 404 2 7 10 kΩ VIN + + HCPL-7800 VOUT 13.2 3 6 10 kΩ - AD624CD - AD624CD GAIN = 4 GAIN = 10 0.01 μF 4 5 0.1 μF 0.47 0.47 0.1 μF μF μF -15 V -15 V 10 kΩ 0.47 μF
