Datasheet TO-1608BC-BF (Oasistek) - 2
| Hersteller | Oasistek |
| Beschreibung | Surface Mount Device LED |
| Seiten / Seite | 3 / 2 — Absolute Maximum Rating @ Ta=25°C. Electrical / Optical Characteristic @ … |
| Dateiformat / Größe | PDF / 123 Kb |
| Dokumentensprache | Englisch |

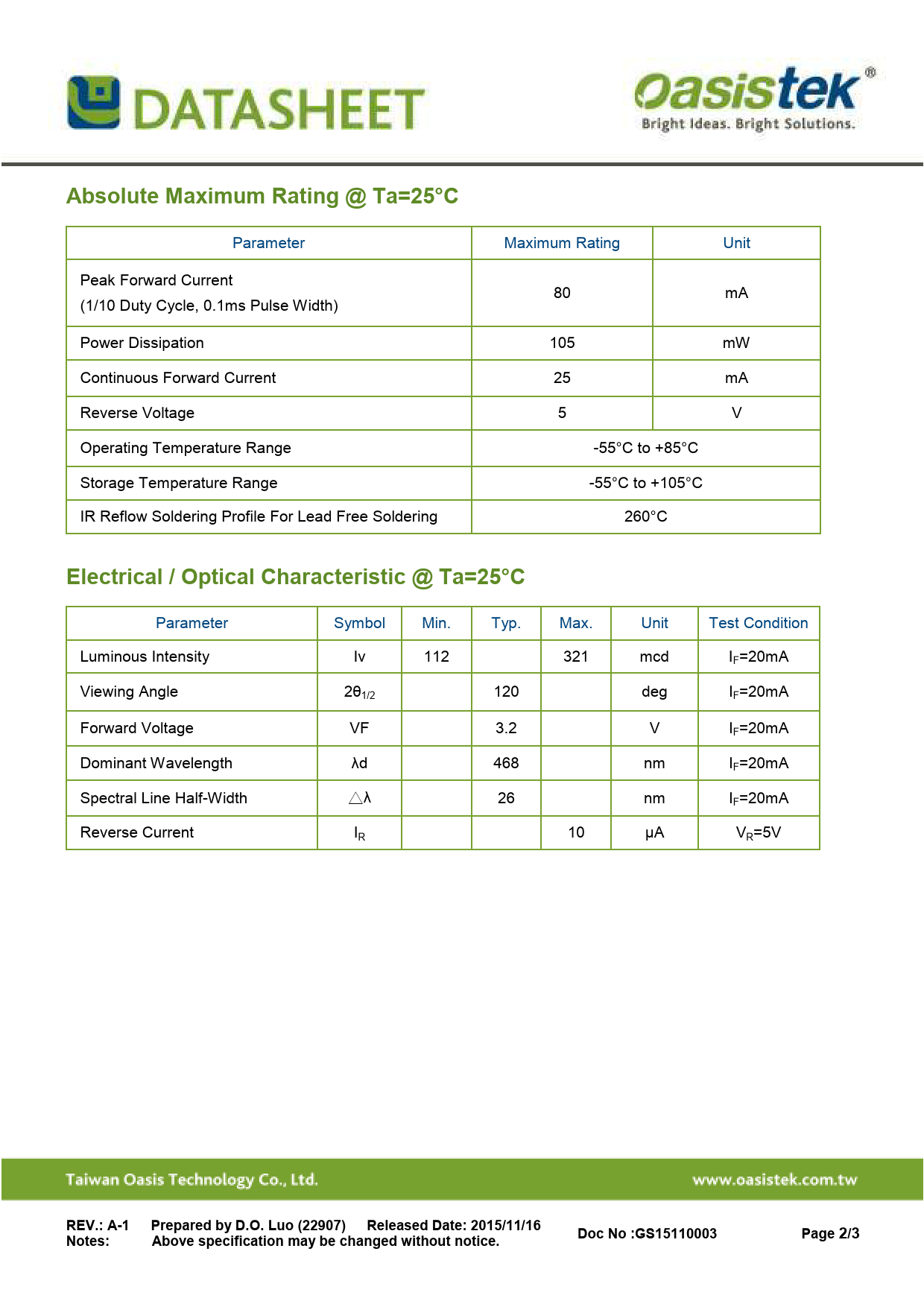

Absolute Maximum Rating @ Ta=25°C. Electrical / Optical Characteristic @ Ta=25°C
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Absolute Maximum Rating @ Ta=25°C
Parameter Maximum Rating Unit Peak Forward Current 80 mA (1/10 Duty Cycle, 0.1ms Pulse Width) Power Dissipation 105 mW Continuous Forward Current 25 mA Reverse Voltage 5 V Operating Temperature Range -55°C to +85°C Storage Temperature Range -55°C to +105°C IR Reflow Soldering Profile For Lead Free Soldering 260°C
Electrical / Optical Characteristic @ Ta=25°C
Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Iv 112 321 mcd IF=20mA Viewing Angle 2θ1/2 120 deg IF=20mA Forward Voltage VF 3.2 V IF=20mA Dominant Wavelength λd 468 nm IF=20mA Spectral Line Half-Width △λ 26 nm IF=20mA Reverse Current IR 10 µA VR=5V
REV.: A-1 Prepared by D.O. Luo (22907) Released Date: 2015/11/16 Doc No :GS15110003 Page 2/3 Notes: Above specification may be changed without notice.
Parameter Maximum Rating Unit Peak Forward Current 80 mA (1/10 Duty Cycle, 0.1ms Pulse Width) Power Dissipation 105 mW Continuous Forward Current 25 mA Reverse Voltage 5 V Operating Temperature Range -55°C to +85°C Storage Temperature Range -55°C to +105°C IR Reflow Soldering Profile For Lead Free Soldering 260°C
Electrical / Optical Characteristic @ Ta=25°C
Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Iv 112 321 mcd IF=20mA Viewing Angle 2θ1/2 120 deg IF=20mA Forward Voltage VF 3.2 V IF=20mA Dominant Wavelength λd 468 nm IF=20mA Spectral Line Half-Width △λ 26 nm IF=20mA Reverse Current IR 10 µA VR=5V
REV.: A-1 Prepared by D.O. Luo (22907) Released Date: 2015/11/16 Doc No :GS15110003 Page 2/3 Notes: Above specification may be changed without notice.
