Absolute maximum. LM158, LM258, LM358, LM158A, LM258A,. LM358A. Table 2: Operating conditions. Symbol. Parameter. Value. Unit. Notes:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 6 link to page 6

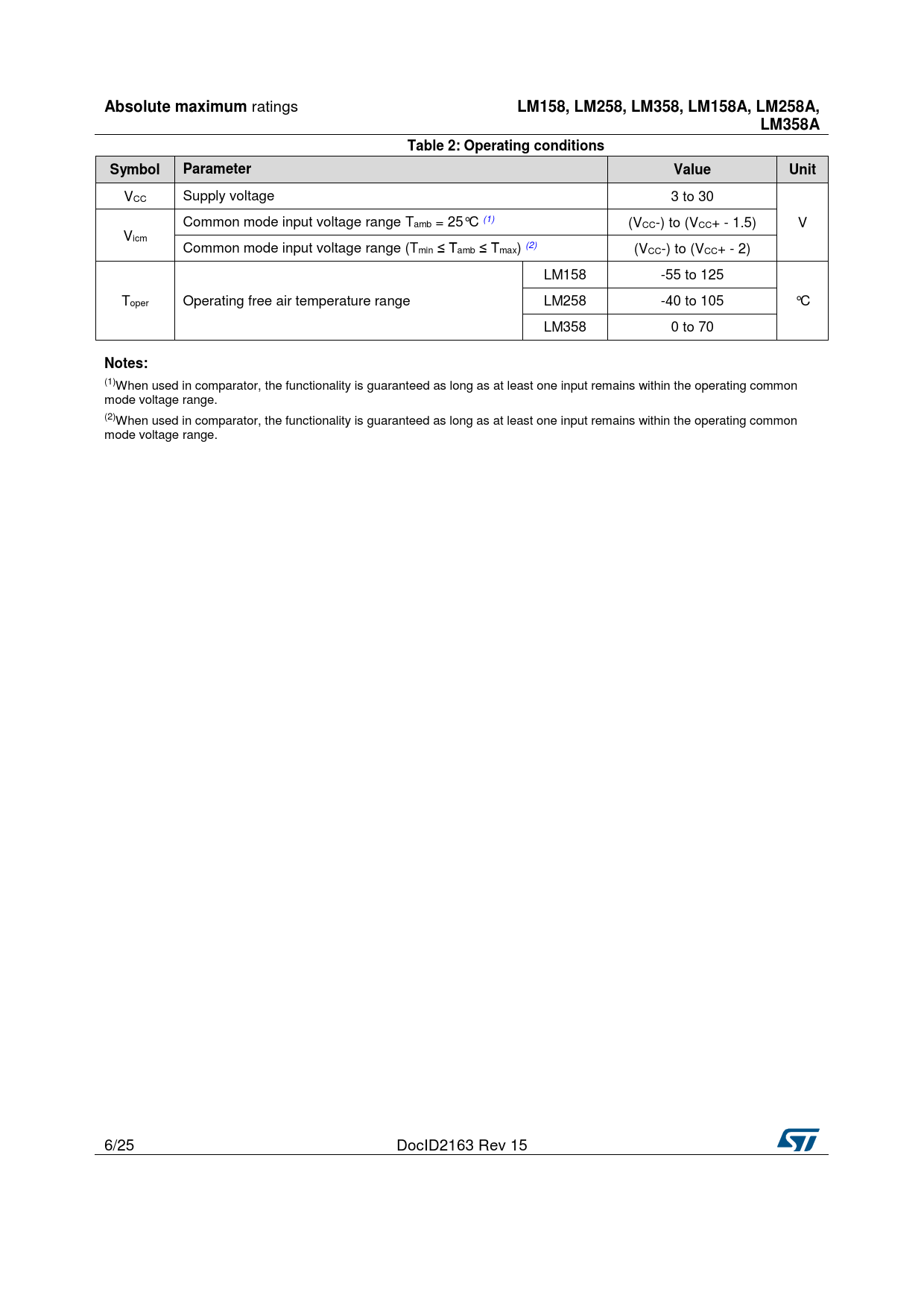

Absolute maximum
ratings
LM158, LM258, LM358, LM158A, LM258A, LM358A Table 2: Operating conditions Symbol Parameter Value Unit
VCC Supply voltage 3 to 30 Common mode input voltage range Tamb = 25°C (1) (VCC-) to (VCC+ - 1.5) V Vicm Common mode input voltage range (Tmin ≤ Tamb ≤ Tmax) (2) (VCC-) to (VCC+ - 2) LM158 -55 to 125 Toper Operating free air temperature range LM258 -40 to 105 °C LM358 0 to 70
Notes:
(1)When used in comparator, the functionality is guaranteed as long as at least one input remains within the operating common mode voltage range. (2)When used in comparator, the functionality is guaranteed as long as at least one input remains within the operating common mode voltage range. 6/25 DocID2163 Rev 15 Document Outline 1 Schematic diagram 2 Package pin connections 3 Absolute maximum ratings 4 Electrical characteristics 5 Electrical characteristic curves 6 Typical applications 7 Package information 7.1 SO8 package information 7.2 MiniSO8 package information 7.3 DFN8 2x2 package information 7.4 TSSOP8 package information 8 Ordering information 9 Revision history
