Datasheet IR2153 (Infineon) - 3
| Hersteller | Infineon |
| Beschreibung | Self-Oscillating Half-Bridge Driver |
| Seiten / Seite | 9 / 3 — IR2153(D)(S) & (PbF). NOTE:For new designs, we recommend. IR’s new … |
| Dateiformat / Größe | PDF / 223 Kb |
| Dokumentensprache | Englisch |
IR2153(D)(S) & (PbF). NOTE:For new designs, we recommend. IR’s new product IRS2153D. Recommended Component Values
Modelllinie für dieses Datenblatt
Textversion des Dokuments

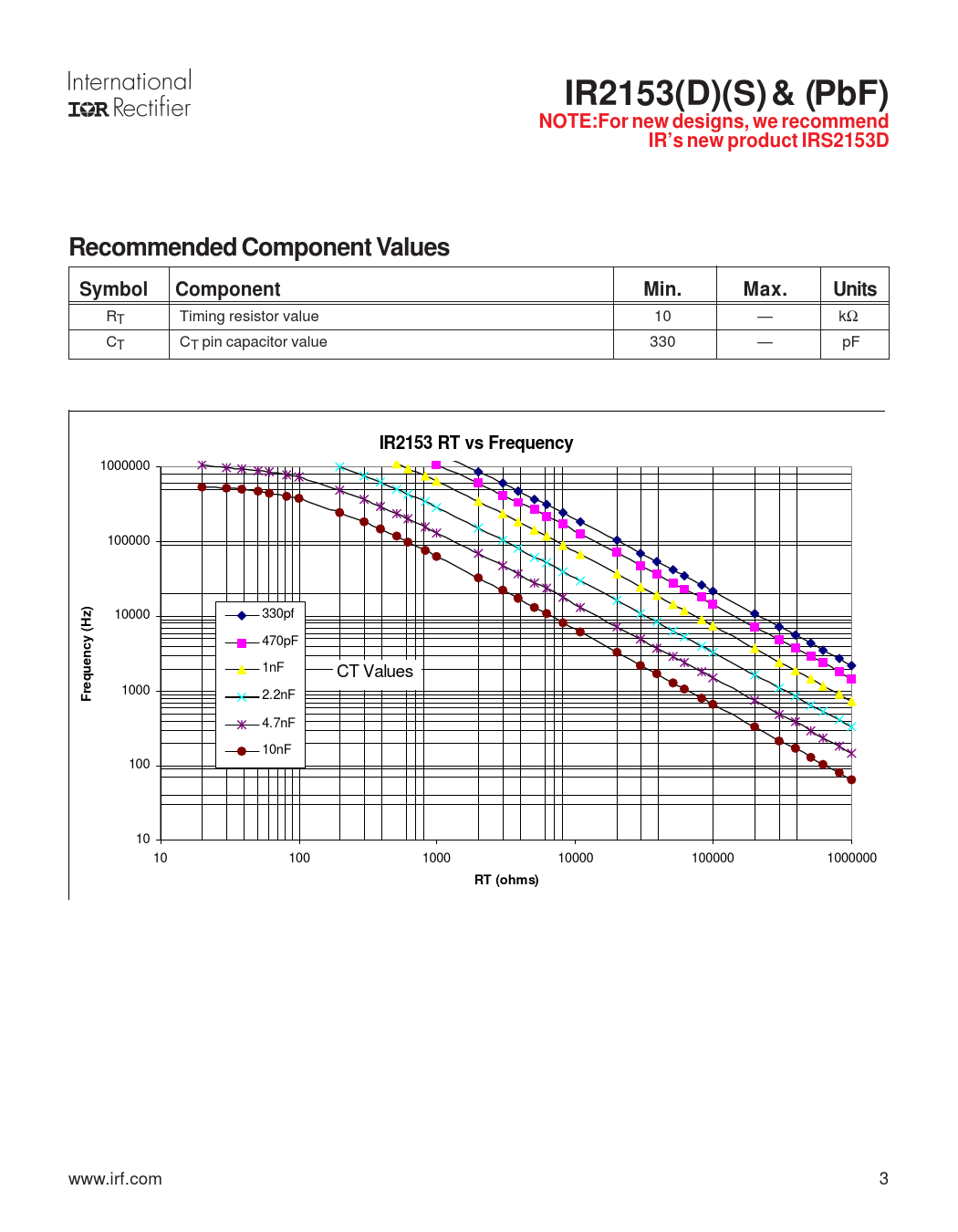

IR2153(D)(S) & (PbF) NOTE:For new designs, we recommend IR’s new product IRS2153D Recommended Component Values Symbol Component Min. Max. Units
RT Timing resistor value 10 — kΩ CT CT pin capacitor value 330 — pF
IR2153 RT vs Frequency
1000000 100000 10000 330pf 470pF 1nF CT Values 1000
Frequency (Hz)
2.2nF 4.7nF 10nF 100 10 10 100 1000 10000 100000 1000000
RT (ohms)
www.irf.com 3
