SOIC-14 PACKAGE DRAWING. 14 Pin Plastic SOIC Package. Millimeters. Inches. Dim. Min. Max. D-14. ALD1107/ALD1117
Modelllinie für dieses Datenblatt
Textversion des Dokuments

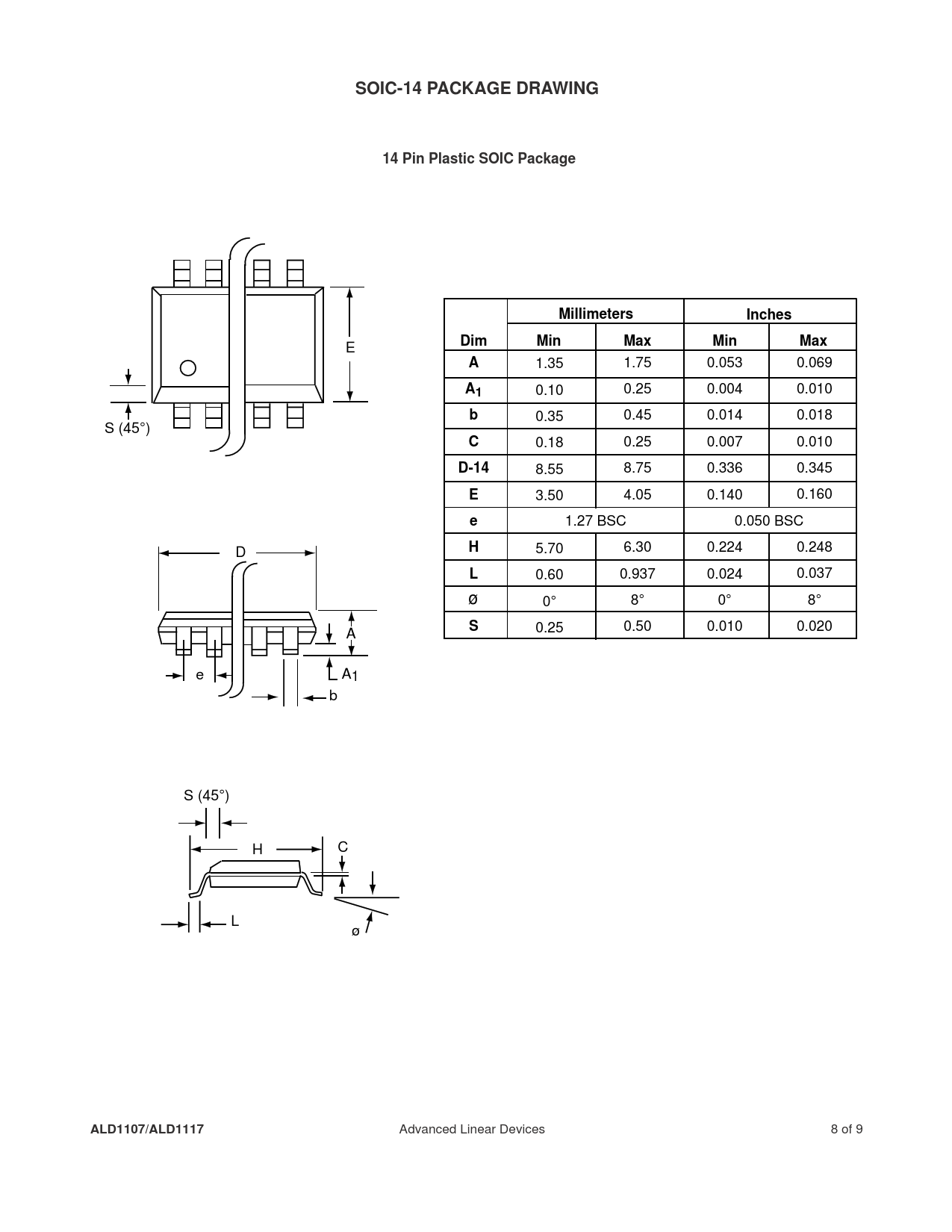

SOIC-14 PACKAGE DRAWING 14 Pin Plastic SOIC Package Millimeters Inches Dim Min Max Min Max
E
A
1.35 1.75 0.053 0.069
A1
0.10 0.25 0.004 0.010
b
0.35 0.45 0.014 0.018 S (45°)
C
0.18 0.25 0.007 0.010
D-14
8.55 8.75 0.336 0.345
E
3.50 4.05 0.140 0.160
e
1.27 BSC 0.050 BSC
H
5.70 6.30 0.224 0.248 D
L
0.60 0.937 0.024 0.037 ø 0° 8° 0° 8°
S
0.25 0.50 0.010 0.020 A e A1 b S (45°) H C L ø
ALD1107/ALD1117
Advanced Linear Devices 8 of 9
