Datasheet CMPSH-3, CMPSH-3A, CMPSH-3C, CMPSH-3S (MCC) - 2
| Hersteller | MCC |
| Beschreibung | 350mW 30Volt Switching Diode |
| Seiten / Seite | 3 / 2 — CMPSH-3,CMPSH-3A,CMPSH-3C,CMPSH-3S. Curve Characteristics |
| Dateiformat / Größe | PDF / 505 Kb |
| Dokumentensprache | Englisch |
CMPSH-3,CMPSH-3A,CMPSH-3C,CMPSH-3S. Curve Characteristics
Modelllinie für dieses Datenblatt
Textversion des Dokuments
CMPSH-3,CMPSH-3A,CMPSH-3C,CMPSH-3S Curve Characteristics

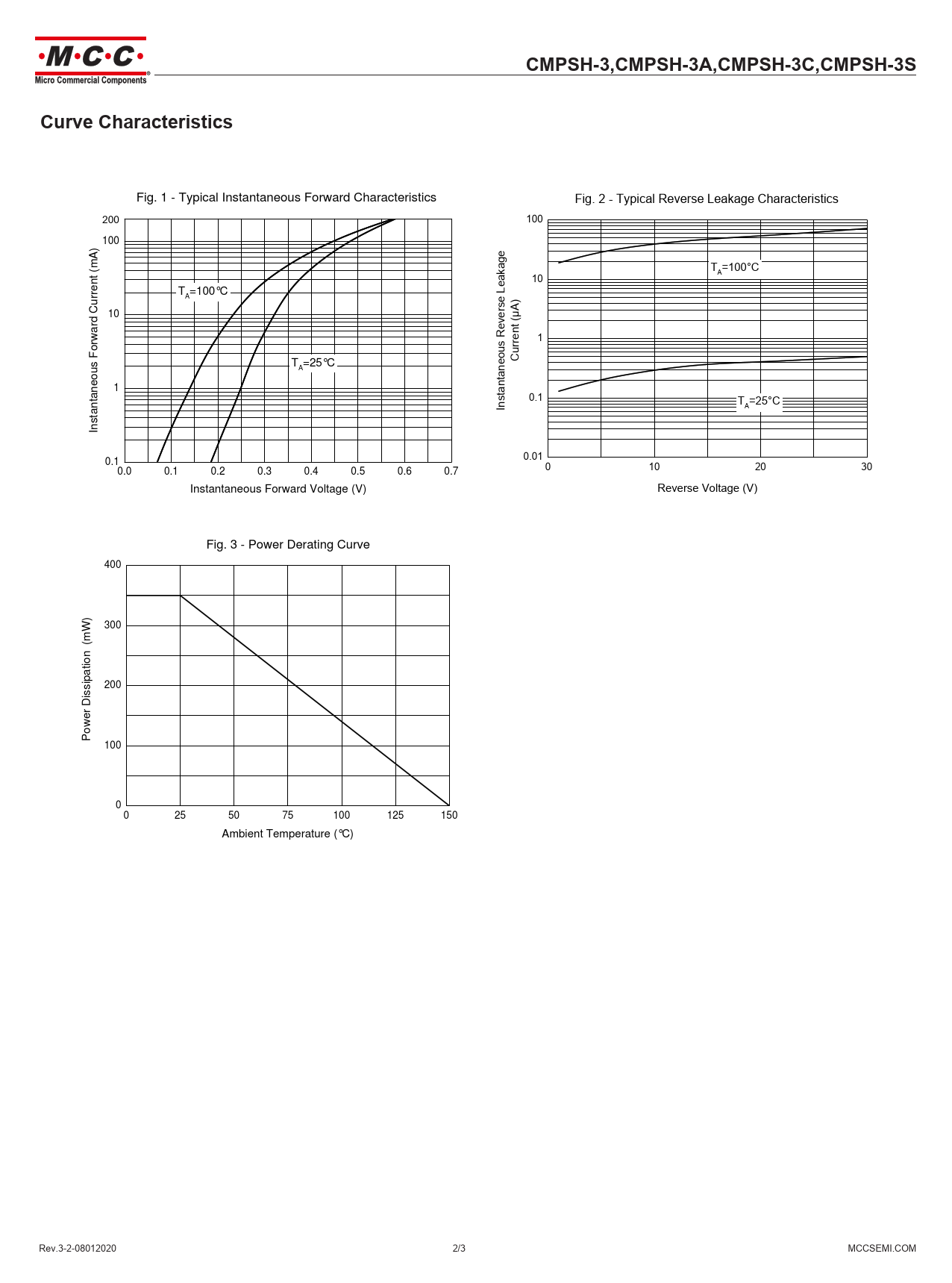

Fig. 1 - Typical Instantaneous Forward Characteristics Fig. 2 - Typical Reverse Leakage Characteristics 200 100 100 T =100°C A 10 T =100°C A 10 μA) 1 Current ( T =25°C A 1 0.1 Instantaneous Reverse Leakage T =25°C A Instantaneous Forward Current (mA) 0.01 0.1 0 10 20 30 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Instantaneous Forward Voltage (V) Reverse Voltage (V) Fig. 3 - Power Derating Curve 400 300 200 Power Dissipation (mW) 100 0 0 25 50 75 100 125 150 Ambient Temperature (°C) Rev.3-2-08012020 2/3 MCCSEMI.COM Document Outline 空白页面
