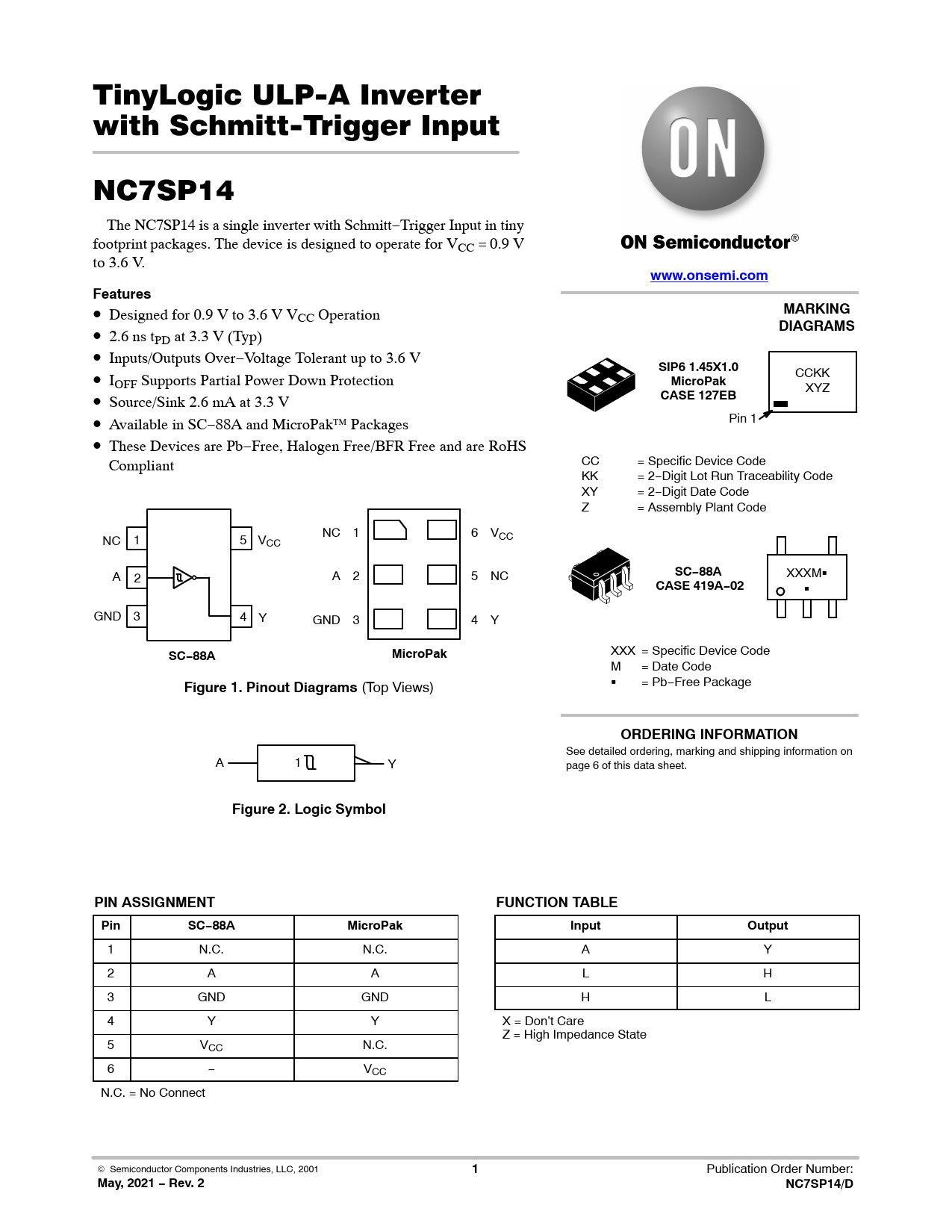

link to page 7 TinyLogic ULP-A Inverter with Schmitt-Trigger Input NC7SP14 The NC7SP14 is a single inverter with Schmitt−Trigger Input in tiny footprint packages. The device is designed to operate for VCC = 0.9 V to 3.6 V.
www.onsemi.com Features
• Designed for 0.9 V to 3.6 V V
MARKING
CC Operation •
DIAGRAMS
2.6 ns tPD at 3.3 V (Typ) • Inputs/Outputs Over−Voltage Tolerant up to 3.6 V
SIP6 1.45X1.0
• I CCKK OFF Supports Partial Power Down Protection
MicroPak
XYZ • Source/Sink 2.6 mA at 3.3 V
CASE 127EB
• Available in SC−88A and MicroPak™ Packages Pin 1 • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant CC = Specific Device Code KK = 2−Digit Lot Run Traceability Code XY = 2−Digit Date Code Z = Assembly Plant Code NC 1 6 V NC 1 5 V CC CC A 2 A 2 5 NC
SC−88A
XXXMG
CASE 419A−02
G GND 3 4 Y GND 3 4 Y
SC−88A MicroPak
XXX = Specific Device Code M = Date Code
Figure 1. Pinout Diagrams
(Top Views) G = Pb−Free Package
ORDERING INFORMATION
See detailed ordering, marking and shipping information on A 1 Y page 6 of this data sheet.
Figure 2. Logic Symbol PIN ASSIGNMENT FUNCTION TABLE Pin SC−88A MicroPak Input Output
1 N.C. N.C. A Y 2 A A L H 3 GND GND H L 4 Y Y X = Don’t Care Z = High Impedance State 5 VCC N.C. 6 − VCC N.C. = No Connect © Semiconductor Components Industries, LLC, 2001
1
Publication Order Number:
May, 2021 − Rev. 2 NC7SP14/D
