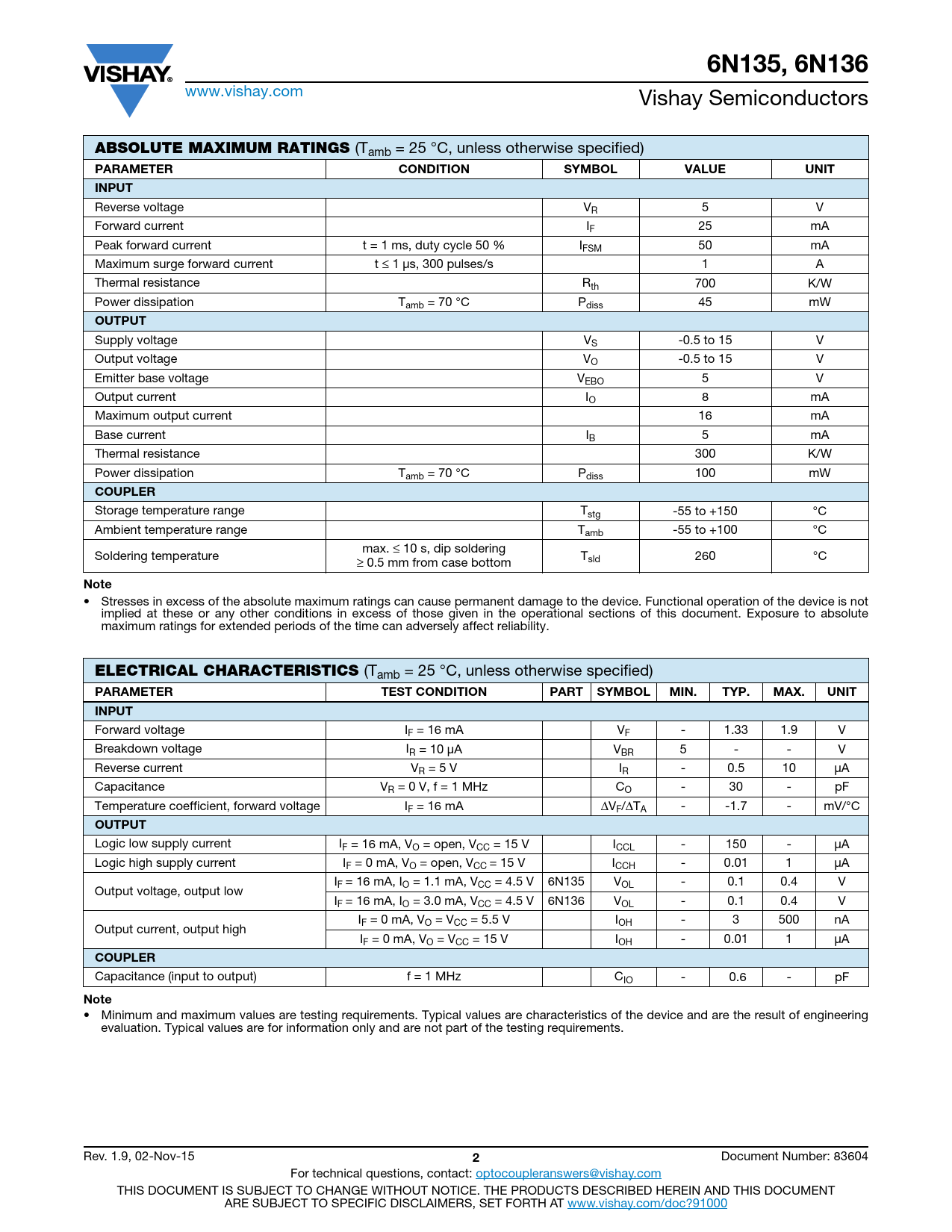

Datasheet 6N135, 6N136 (Vishay) - 2

6N135, 6N136
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER CONDITION SYMBOL VALUE UNIT INPUT
Reverse voltage VR 5 V Forward current IF 25 mA Peak forward current t = 1 ms, duty cycle 50 % IFSM 50 mA Maximum surge forward current t ≤ 1 μs, 300 pulses/s 1 A Thermal resistance Rth 700 K/W Power dissipation Tamb = 70 °C Pdiss 45 mW
OUTPUT
Supply voltage VS -0.5 to 15 V Output voltage VO -0.5 to 15 V Emitter base voltage VEBO 5 V Output current IO 8 mA Maximum output current 16 mA Base current IB 5 mA Thermal resistance 300 K/W Power dissipation Tamb = 70 °C Pdiss 100 mW
COUPLER
Storage temperature range Tstg -55 to +150 °C Ambient temperature range Tamb -55 to +100 °C max. ≤ 10 s, dip soldering Soldering temperature ≥ T 0.5 mm from case bottom sld 260 °C
Note
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability.
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT INPUT
Forward voltage IF = 16 mA VF - 1.33 1.9 V Breakdown voltage IR = 10 μA VBR 5 - - V Reverse current VR = 5 V IR - 0.5 10 μA Capacitance VR = 0 V, f = 1 MHz CO - 30 - pF Temperature coefficient, forward voltage IF = 16 mA ΔVF/ΔTA - -1.7 - mV/°C
OUTPUT
Logic low supply current IF = 16 mA, VO = open, VCC = 15 V ICCL - 150 - μA Logic high supply current IF = 0 mA, VO = open, VCC = 15 V ICCH - 0.01 1 μA IF = 16 mA, IO = 1.1 mA, VCC = 4.5 V 6N135 VOL - 0.1 0.4 V Output voltage, output low IF = 16 mA, IO = 3.0 mA, VCC = 4.5 V 6N136 VOL - 0.1 0.4 V IF = 0 mA, VO = VCC = 5.5 V IOH - 3 500 nA Output current, output high IF = 0 mA, VO = VCC = 15 V IOH - 0.01 1 μA
COUPLER
Capacitance (input to output) f = 1 MHz CIO - 0.6 - pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering evaluation. Typical values are for information only and are not part of the testing requirements. Rev. 1.9, 02-Nov-15
