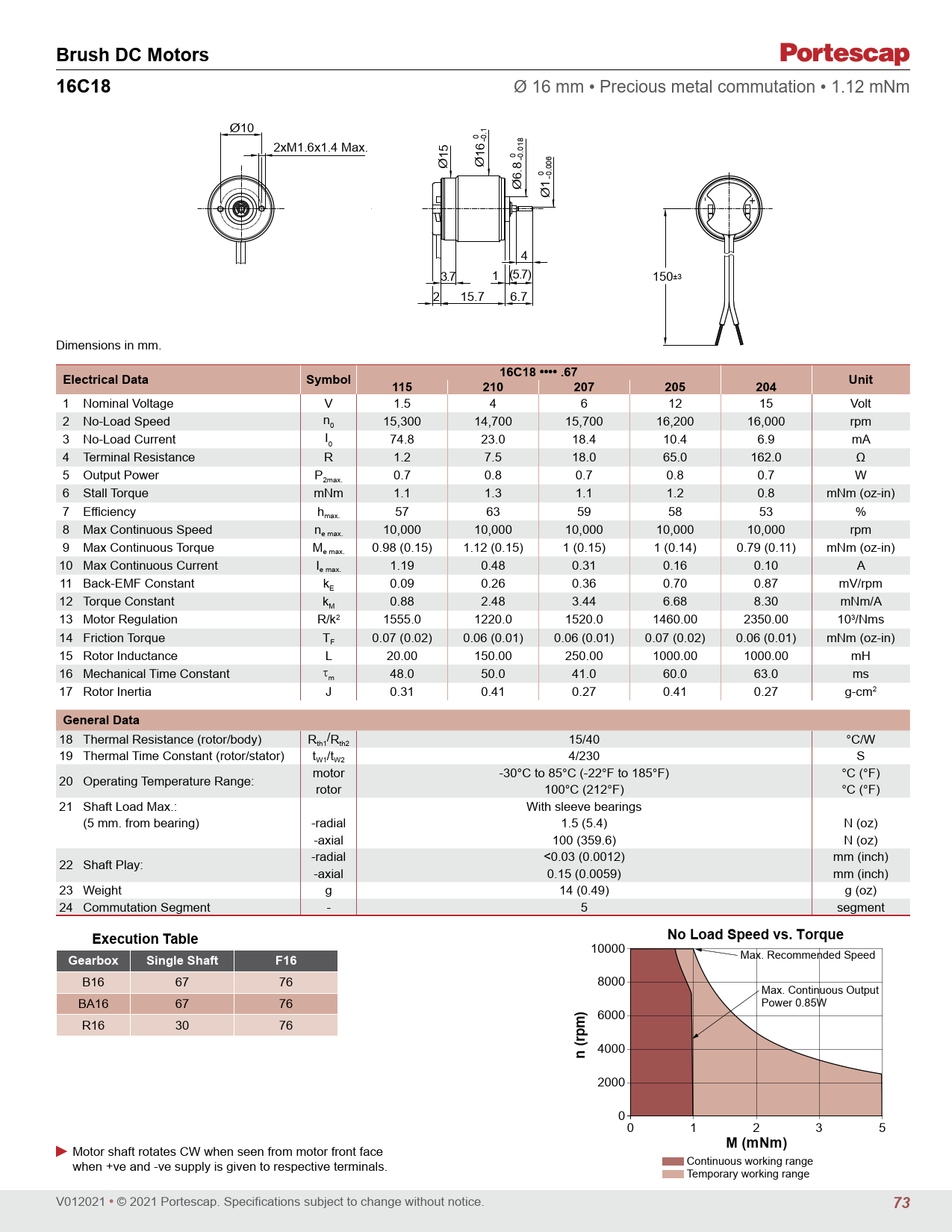

Datasheet 16C18 (Portescap)

Brush DC Motors 16C18
Ø 16 mm • Precious metal commutation • 1.12 mNm Ø10 Ø10 Ø10 2xM1.6x1.4 Max. 2xM1.6x1.4 Max. 0 -0.1 0 -0.1 0 -0.1 0 -0.1 0 -0.1 0 -0.1 2xM1.6x1.4 Max. 15 16 15 16 0 -0.018 15 16 0 15 16 -0.018 15 16 0 -0.018 0 -0.018 0 15 16 -0.018 0 -0.018 Ø Ø Ø -0.006 Ø -0.009 Ø -0.006 Ø-0.009 Ø Ø -0.006 -0.009 Ø Ø Ø Ø 6.8 6.8 6.8 6.8 0 -0.006 6.8 0 -0.006 6.8 -0.006 Ø 1.5 Ø 1.5 Ø 1.5 Ø 1 Ø 1 Ø 0 1 Ø Ø Ø Ø Ø - + Ø - + - + 5.9 5.9 5.9 4 4 4 3.7 1 3.7 (6.5) 1 3.7 (6.5) 13.7 (6.5) 1 3(.7 5.7) 1 3(.7 5. ) 150±3 1 (5.7) 150±3 150±3 2 15.7 2 15.7 7.5 2 15.7 7.5 2 7.5 15.7 2 15.7 6.7 26.7 15.7 6.7 Dimensions in mm.
Electrical Data Symbol 16C18 •••• .67 Unit 115 210 207 205 204
1 Nominal Voltage V 1.5 4 6 12 15 Volt 2 No-Load Speed n0 15,300 14,700 15,700 16,200 16,000 rpm 3 No-Load Current I0 74.8 23.0 18.4 10.4 6.9 mA 4 Terminal Resistance R 1.2 7.5 18.0 65.0 162.0 Ω 5 Output Power P2max. 0.7 0.8 0.7 0.8 0.7 W 6 Stall Torque mNm 1.1 1.3 1.1 1.2 0.8 mNm (oz-in) 7 Efficiency hmax. 57 63 59 58 53 % 8 Max Continuous Speed ne max. 10,000 10,000 10,000 10,000 10,000 rpm 9 Max Continuous Torque Me max. 0.98 (0.15) 1.12 (0.15) 1 (0.15) 1 (0.14) 0.79 (0.11) mNm (oz-in) 10 Max Continuous Current Ie max. 1.19 0.48 0.31 0.16 0.10 A 11 Back-EMF Constant kE 0.09 0.26 0.36 0.70 0.87 mV/rpm 12 Torque Constant kM 0.88 2.48 3.44 6.68 8.30 mNm/A 13 Motor Regulation R/k2 1555.0 1220.0 1520.0 1460.00 2350.00 103/Nms 14 Friction Torque TF 0.07 (0.02) 0.06 (0.01) 0.06 (0.01) 0.07 (0.02) 0.06 (0.01) mNm (oz-in) 15 Rotor Inductance L 20.00 150.00 250.00 1000.00 1000.00 mH 16 Mechanical Time Constant τm 48.0 50.0 41.0 60.0 63.0 ms 17 Rotor Inertia J 0.31 0.41 0.27 0.41 0.27 g-cm2
General Data
18 Thermal Resistance (rotor/body) R / th1 Rth2 15/40 °C/W 19 Thermal Time Constant (rotor/stator) tW1/tW2 4/230 S 20 Operating Temperature Range: motor -30°C to 85°C (-22°F to 185°F) °C (°F) rotor 100°C (212°F) °C (°F) 21 Shaft Load Max.: With sleeve bearings (5 mm. from bearing) -radial 1.5 (5.4) N (oz) -axial 100 (359.6) N (oz) 22 Shaft Play: -radial <0.03 (0.0012) mm (inch) -axial 0.15 (0.0059) mm (inch) 23 Weight g 14 (0.49) g (oz) 24 Commutation Segment - 5 segment
Execution Table No Load Speed vs. Torque
10000
Gearbox Single Shaft F16
Max. Recommended Speed B16 67 76 8000 Max. Continuous Output BA16 67 76
)
Power 0.85W 6000 R16 30 76
n (rpm
4000 2000 0 0 1 2 3 5 Motor shaft rotates CW when seen from motor front face
M (mNm)
when +ve and -ve supply is given to respective terminals. Continuous working range Temporary working range V012021
•
© 2021 Portescap. Specifications subject to change without notice.
73
