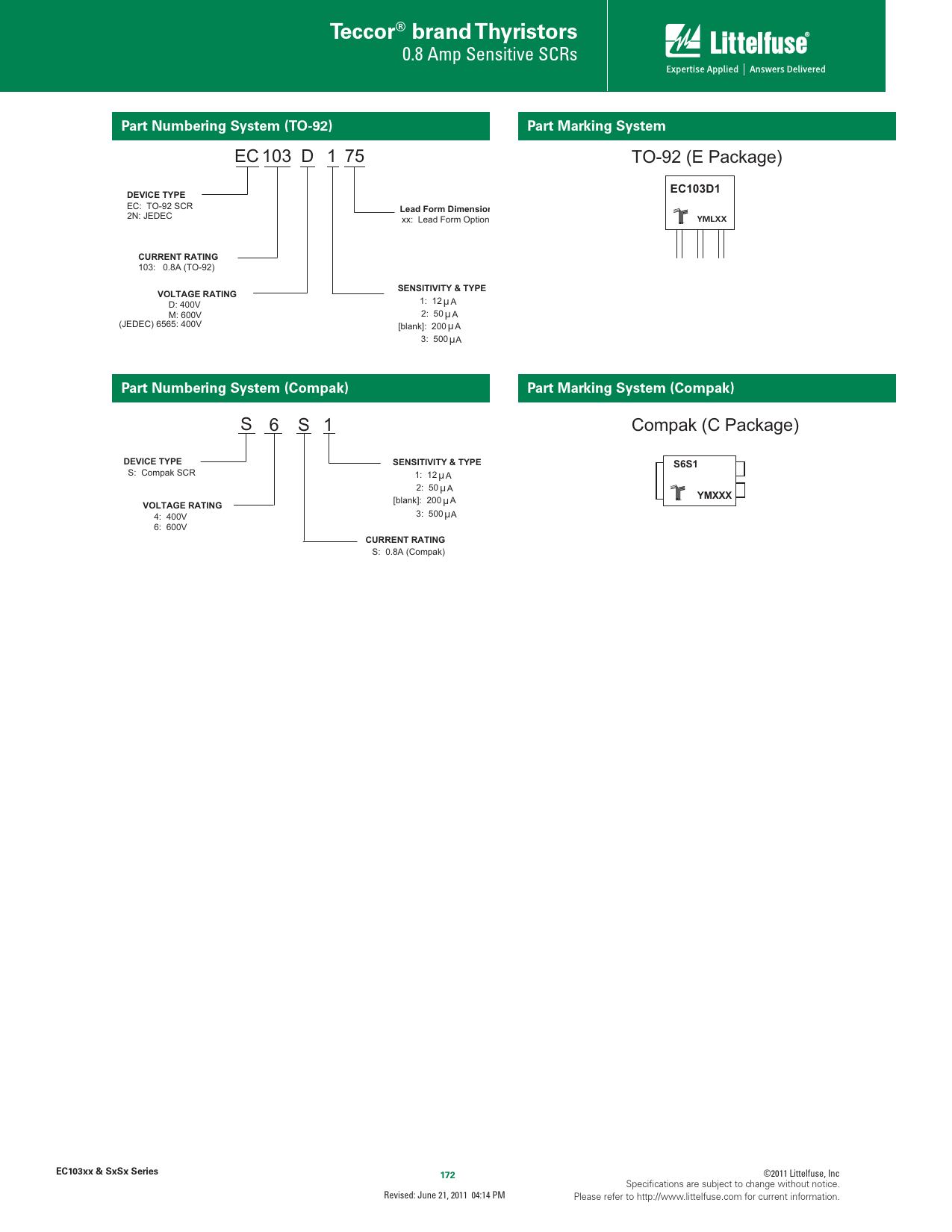

Teccor® brand Thyristors
0.8 Amp Sensitive SCRs
Part Numbering System (TO-92) Part Marking System
EC 103 D 1 75 TO-92 (E Package)
EC103D1 DEVICE TYPE
EC: TO-92 SCR
Lead Form Dimensions
2N: JEDEC xx: Lead Form Option ®
YMLXX CURRENT RATING
103: 0.8A (TO-92)
VOLTAGE RATING SENSITIVITY & TYPE
D: 400V 1: 12 µA M: 600V 2: 50 µA (JEDEC) 6565: 400V [blank]: 200 µA 3: 500µA
Part Numbering System (Compak) Part Marking System (Compak)
S 6 S 1 Compak (C Package)
DEVICE TYPE SENSITIVITY & TYPE S6S1
S: Compak SCR 1: 12 µA 2: 50 µA ®
YMXXX VOLTAGE RATING
[blank]: 200 µA 4: 400V 3: 500µA 6: 600V
CURRENT RATING
S: 0.8A (Compak)
EC103xx & SxSx Series 172
