Datasheet 1N5400, 1N5401, 1N5402, 1N5404, 1N5406, 1N5407, 1N5408 (ON Semiconductor) - 2
| Hersteller | ON Semiconductor |
| Beschreibung | Axial-Lead Glass Passivated Standard Recovery Rectifiers |
| Seiten / Seite | 7 / 2 — 1N5400 thru 1N5408. MAXIMUM RATINGS. Rating. Symbol. 1N5400 1N5401 1N5402 … |
| Dateiformat / Größe | PDF / 156 Kb |
| Dokumentensprache | Englisch |

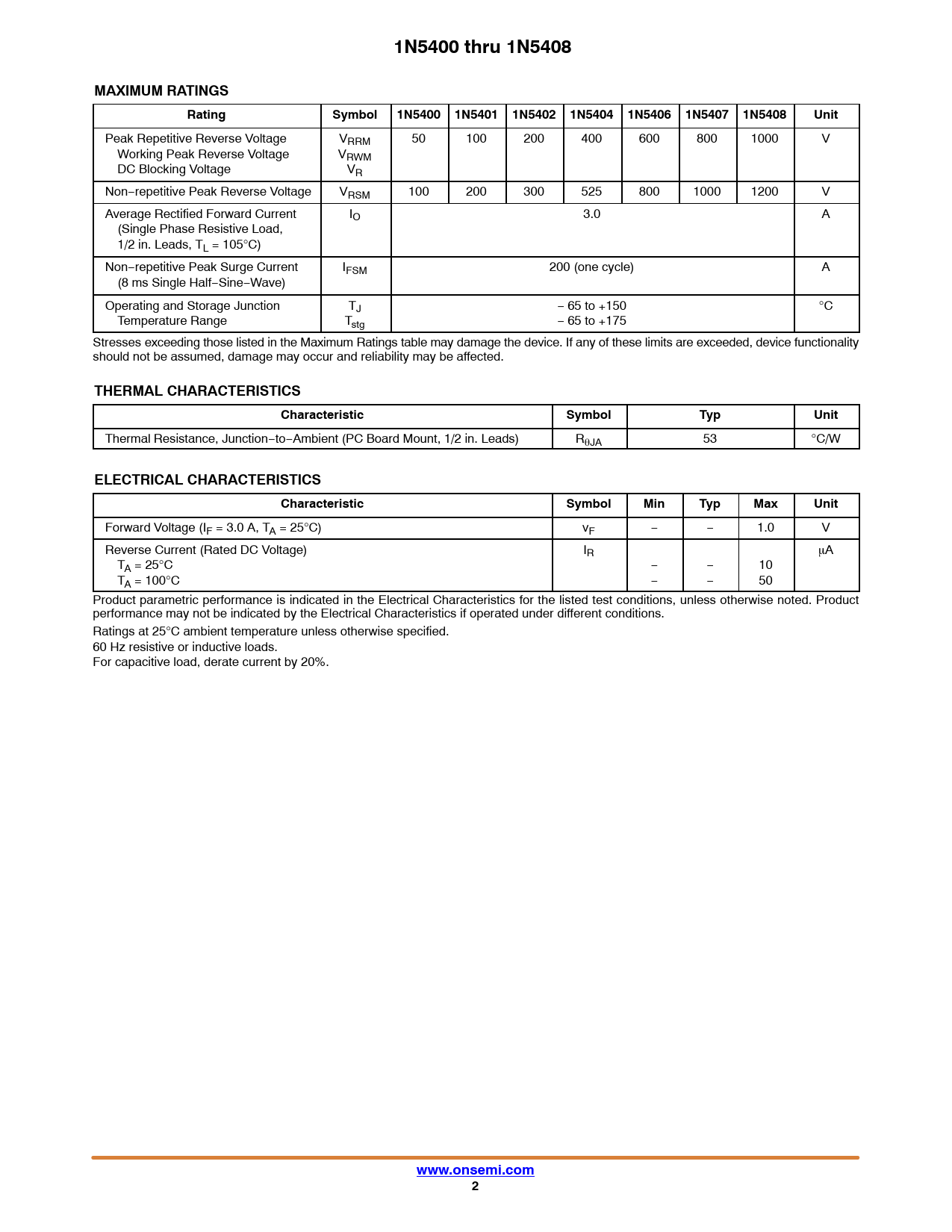

1N5400 thru 1N5408. MAXIMUM RATINGS. Rating. Symbol. 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
1N5400 thru 1N5408 MAXIMUM RATINGS Rating Symbol 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408 Unit
Peak Repetitive Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Working Peak Reverse Voltage VRWM DC Blocking Voltage VR Non−repetitive Peak Reverse Voltage VRSM 100 200 300 525 800 1000 1200 V Average Rectified Forward Current IO 3.0 A (Single Phase Resistive Load, 1/2 in. Leads, TL = 105°C) Non−repetitive Peak Surge Current IFSM 200 (one cycle) A (8 ms Single Half−Sine−Wave) Operating and Storage Junction TJ − 65 to +150 °C Temperature Range Tstg − 65 to +175 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS Characteristic Symbol Typ Unit
Thermal Resistance, Junction−to−Ambient (PC Board Mount, 1/2 in. Leads) RqJA 53 °C/W
ELECTRICAL CHARACTERISTICS Characteristic Symbol Min Typ Max Unit
Forward Voltage (IF = 3.0 A, TA = 25°C) vF − − 1.0 V Reverse Current (Rated DC Voltage) IR mA TA = 25°C − − 10 TA = 100°C − − 50 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. Ratings at 25°C ambient temperature unless otherwise specified. 60 Hz resistive or inductive loads. For capacitive load, derate current by 20%.
www.onsemi.com 2
Peak Repetitive Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Working Peak Reverse Voltage VRWM DC Blocking Voltage VR Non−repetitive Peak Reverse Voltage VRSM 100 200 300 525 800 1000 1200 V Average Rectified Forward Current IO 3.0 A (Single Phase Resistive Load, 1/2 in. Leads, TL = 105°C) Non−repetitive Peak Surge Current IFSM 200 (one cycle) A (8 ms Single Half−Sine−Wave) Operating and Storage Junction TJ − 65 to +150 °C Temperature Range Tstg − 65 to +175 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS Characteristic Symbol Typ Unit
Thermal Resistance, Junction−to−Ambient (PC Board Mount, 1/2 in. Leads) RqJA 53 °C/W
ELECTRICAL CHARACTERISTICS Characteristic Symbol Min Typ Max Unit
Forward Voltage (IF = 3.0 A, TA = 25°C) vF − − 1.0 V Reverse Current (Rated DC Voltage) IR mA TA = 25°C − − 10 TA = 100°C − − 50 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. Ratings at 25°C ambient temperature unless otherwise specified. 60 Hz resistive or inductive loads. For capacitive load, derate current by 20%.
www.onsemi.com 2
