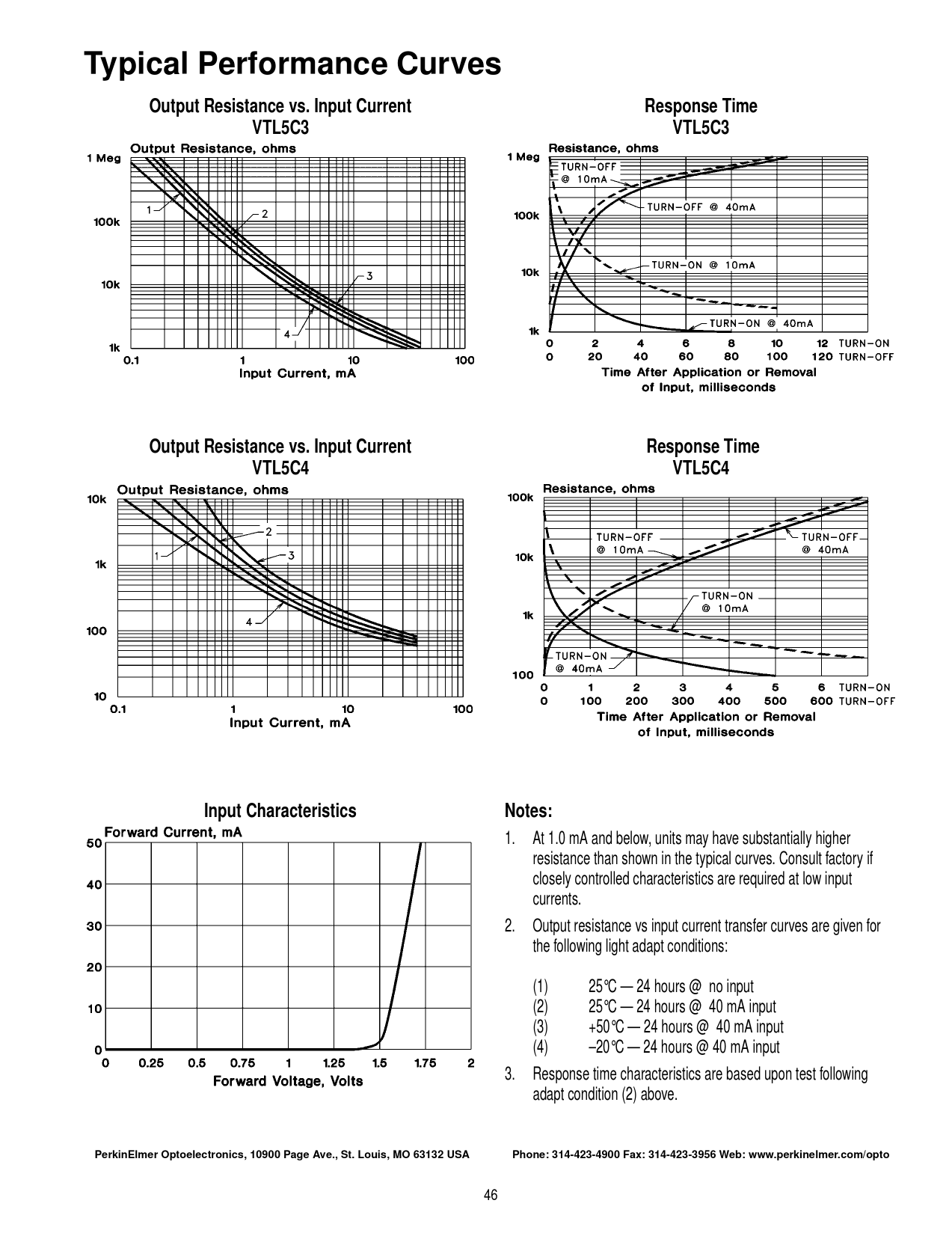

Typical Performance Curves. Output Resistance vs. Input Current. Response Time. VTL5C3. VTL5C4. Input Characteristics. Notes:
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Typical Performance Curves Output Resistance vs. Input Current Response Time VTL5C3 VTL5C3 Output Resistance vs. Input Current Response Time VTL5C4 VTL5C4 Input Characteristics Notes:
1. At 1.0 mA and below, units may have substantial y higher resistance than shown in the typical curves. Consult factory if closely control ed characteristics are required at low input currents. 2. Output resistance vs input current transfer curves are given for the fol owing light adapt conditions: (1) 25°C — 24 hours @ no input (2) 25°C — 24 hours @ 40 mA input (3) +50°C — 24 hours @ 40 mA input (4) –20°C — 24 hours @ 40 mA input 3. Response time characteristics are based upon test fol owing adapt condition (2) above.
PerkinElmer Optoelectronics, 10900 Page Ave., St. Louis, MO 63132 USA Phone: 314-423-4900 Fax: 314-423-3956 Web: www.perkinelmer.com/opto
46
1. At 1.0 mA and below, units may have substantial y higher resistance than shown in the typical curves. Consult factory if closely control ed characteristics are required at low input currents. 2. Output resistance vs input current transfer curves are given for the fol owing light adapt conditions: (1) 25°C — 24 hours @ no input (2) 25°C — 24 hours @ 40 mA input (3) +50°C — 24 hours @ 40 mA input (4) –20°C — 24 hours @ 40 mA input 3. Response time characteristics are based upon test fol owing adapt condition (2) above.
