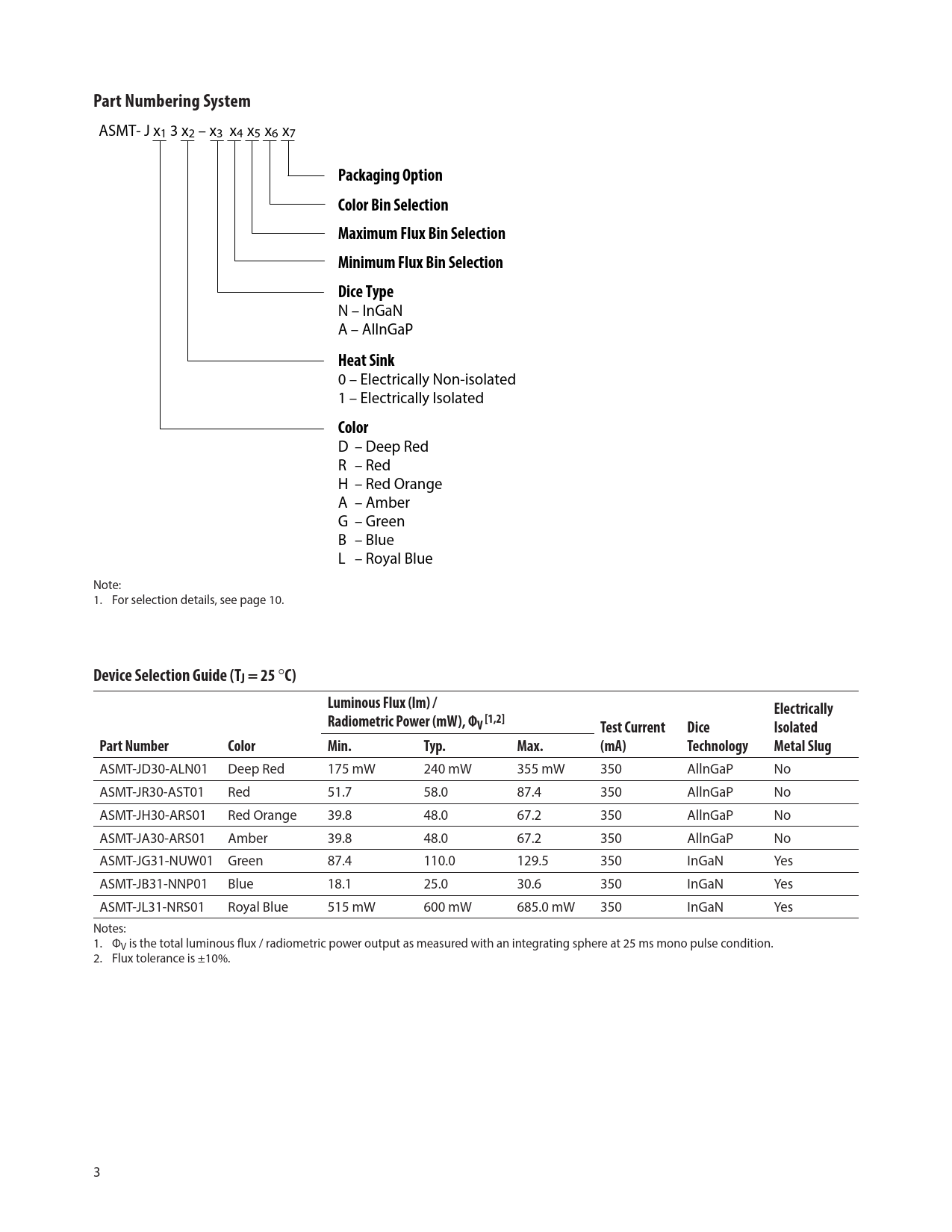

Datasheet ASMT-Jx3x (Avago Technologies) - 3

Part Numbering System
ASMT- J x1 3 x2 – x3 x4 x5 x6 x7
Packaging Option Color Bin Selection Maximum Flux Bin Selection Minimum Flux Bin Selection Dice Type
N – InGaN A – AlInGaP
Heat Sink
0 – Electrically Non-isolated 1 – Electrically Isolated
Color
D – Deep Red R – Red H – Red Orange A – Amber G – Green B – Blue L – Royal Blue Note: 1. For selection details, see page 10.
Device Selection Guide (TJ = 25
°
C) Luminous Flux (lm) / Electrically Radiometric Power (mW), ΦV [1,2] Test Current Dice Isolated Part Number Color Min. Typ. Max. (mA) Technology Metal Slug
ASMT-JD30-ALN01 Deep Red 175 mW 240 mW 355 mW 350 AllnGaP No ASMT-JR30-AST01 Red 51.7 58.0 87.4 350 AllnGaP No ASMT-JH30-ARS01 Red Orange 39.8 48.0 67.2 350 AllnGaP No ASMT-JA30-ARS01 Amber 39.8 48.0 67.2 350 AllnGaP No ASMT-JG31-NUW01 Green 87.4 110.0 129.5 350 InGaN Yes ASMT-JB31-NNP01 Blue 18.1 25.0 30.6 350 InGaN Yes ASMT-JL31-NRS01 Royal Blue 515 mW 600 mW 685.0 mW 350 InGaN Yes Notes: 1. ΦV is the total luminous flux / radiometric power output as measured with an integrating sphere at 25 ms mono pulse condition. 2. Flux tolerance is ±10%. 3
