Datasheet MM74C14 (Fairchild) - 2
| Hersteller | Fairchild |
| Beschreibung | Hex Schmitt Trigger |
| Seiten / Seite | 6 / 2 — Absolute Maximum Ratings. 74C14. Note 1:. DC Electrical Characteristics. … |
| Dateiformat / Größe | PDF / 67 Kb |
| Dokumentensprache | Englisch |
Absolute Maximum Ratings. 74C14. Note 1:. DC Electrical Characteristics. Symbol. Parameter. Conditions. Min. Typ. Max. Units. CMOS TO CMOS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

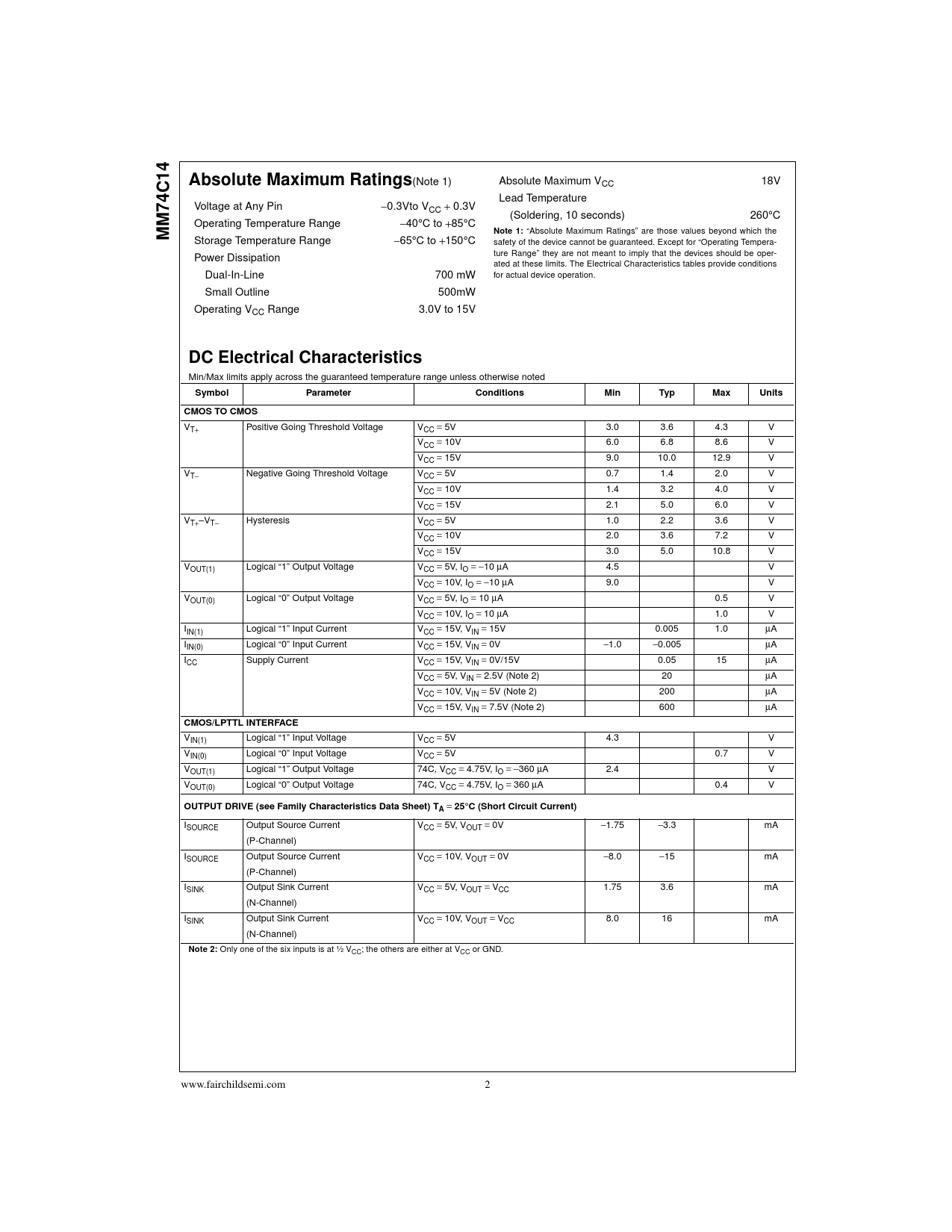

Absolute Maximum Ratings
(Note 1) Absolute Maximum VCC 18V Lead Temperature
74C14
Voltage at Any Pin −0.3Vto VCC + 0.3V (Soldering, 10 seconds) 260°C Operating Temperature Range −40°C to +85°C
MM Note 1:
“Absolute Maximum Ratings” are those values beyond which the Storage Temperature Range −65°C to +150°C safety of the device cannot be guaranteed. Except for “Operating Tempera- ture Range” they are not meant to imply that the devices should be oper- Power Dissipation ated at these limits. The Electrical Characteristics tables provide conditions Dual-In-Line 700 mW for actual device operation. Small Outline 500mW Operating VCC Range 3.0V to 15V
DC Electrical Characteristics
Min/Max limits apply across the guaranteed temperature range unless otherwise noted
Symbol Parameter Conditions Min Typ Max Units CMOS TO CMOS
VT+ Positive Going Threshold Voltage VCC = 5V 3.0 3.6 4.3 V VCC = 10V 6.0 6.8 8.6 V VCC = 15V 9.0 10.0 12.9 V VT− Negative Going Threshold Voltage VCC = 5V 0.7 1.4 2.0 V VCC = 10V 1.4 3.2 4.0 V VCC = 15V 2.1 5.0 6.0 V VT+–VT− Hysteresis VCC = 5V 1.0 2.2 3.6 V VCC = 10V 2.0 3.6 7.2 V VCC = 15V 3.0 5.0 10.8 V VOUT(1) Logical “1” Output Voltage VCC = 5V, IO = −10 µA 4.5 V VCC = 10V, IO = −10 µA 9.0 V VOUT(0) Logical “0” Output Voltage VCC = 5V, IO = 10 µA 0.5 V VCC = 10V, IO = 10 µA 1.0 V IIN(1) Logical “1” Input Current VCC = 15V, VIN = 15V 0.005 1.0 µA IIN(0) Logical “0” Input Current VCC = 15V, VIN = 0V −1.0 −0.005 µA ICC Supply Current VCC = 15V, VIN = 0V/15V 0.05 15 µA VCC = 5V, VIN = 2.5V (Note 2) 20 µA VCC = 10V, VIN = 5V (Note 2) 200 µA VCC = 15V, VIN = 7.5V (Note 2) 600 µA
CMOS/LPTTL INTERFACE
VIN(1) Logical “1” Input Voltage VCC = 5V 4.3 V VIN(0) Logical “0” Input Voltage VCC = 5V 0.7 V VOUT(1) Logical “1” Output Voltage 74C, VCC = 4.75V, IO = −360 µA 2.4 V VOUT(0) Logical “0” Output Voltage 74C, VCC = 4.75V, IO = 360 µA 0.4 V
OUTPUT DRIVE (see Family Characteristics Data Sheet) TA
=
25
°
C (Short Circuit Current)
ISOURCE Output Source Current VCC = 5V, VOUT = 0V −1.75 −3.3 mA (P-Channel) ISOURCE Output Source Current VCC = 10V, VOUT = 0V −8.0 −15 mA (P-Channel) ISINK Output Sink Current VCC = 5V, VOUT = VCC 1.75 3.6 mA (N-Channel) ISINK Output Sink Current VCC = 10V, VOUT = VCC 8.0 16 mA (N-Channel)
Note 2:
Only one of the six inputs is at ½ VCC; the others are either at VCC or GND. www.fairchildsemi.com 2
