Datasheet CTX100 (Eaton) - 4
| Hersteller | Eaton |
| Beschreibung | LCPI Toroid power inductors |
| Seiten / Seite | 6 / 4 — Dimensions- mm. Header Mounted Option. Header Mounted. See. Part Number. … |
| Dateiformat / Größe | PDF / 550 Kb |
| Dokumentensprache | Englisch |
Dimensions- mm. Header Mounted Option. Header Mounted. See. Part Number. Figure #. (max). (typ). FIGURE 3. FIGURE 4. FIGURE 5. CONNECTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

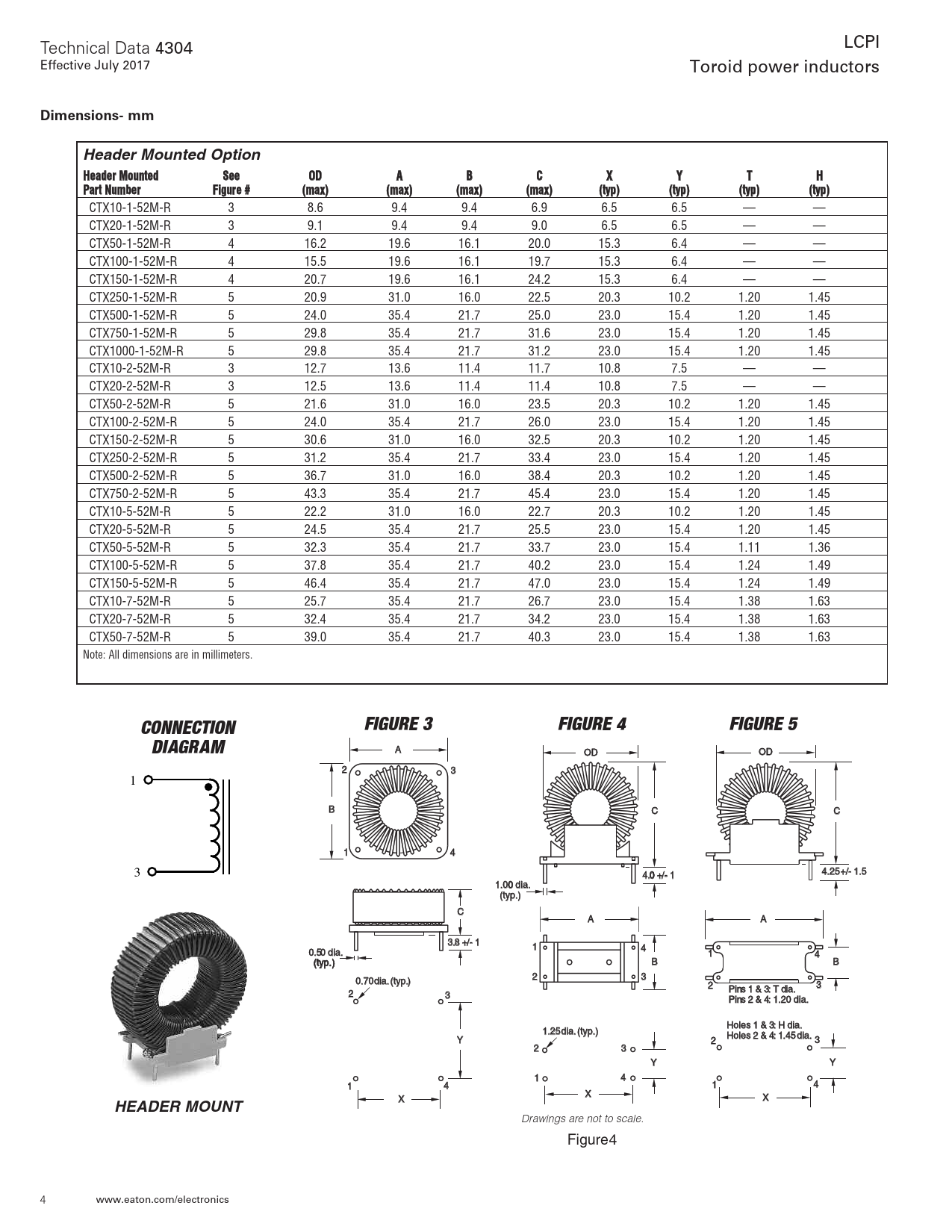

LCPI Technical Data 4304 Effective July 2017 Toroid power inductors
Dimensions- mm Header Mounted Option Header Mounted See OD A B C X Y T H Part Number Figure # (max) (max) (max) (max) (typ) (typ) (typ) (typ)
CTX10-1-52M-R 3 8.6 9.4 9.4 6.9 6.5 6.5 — — CTX20-1-52M-R 3 9.1 9.4 9.4 9.0 6.5 6.5 — — CTX50-1-52M-R 4 16.2 19.6 16.1 20.0 15.3 6.4 — — CTX100-1-52M-R 4 15.5 19.6 16.1 19.7 15.3 6.4 — — CTX150-1-52M-R 4 20.7 19.6 16.1 24.2 15.3 6.4 — — CTX250-1-52M-R 5 20.9 31.0 16.0 22.5 20.3 10.2 1.20 1.45 CTX500-1-52M-R 5 24.0 35.4 21.7 25.0 23.0 15.4 1.20 1.45 CTX750-1-52M-R 5 29.8 35.4 21.7 31.6 23.0 15.4 1.20 1.45 CTX1000-1-52M-R 5 29.8 35.4 21.7 31.2 23.0 15.4 1.20 1.45 CTX10-2-52M-R 3 12.7 13.6 11.4 11.7 10.8 7.5 — — CTX20-2-52M-R 3 12.5 13.6 11.4 11.4 10.8 7.5 — — CTX50-2-52M-R 5 21.6 31.0 16.0 23.5 20.3 10.2 1.20 1.45 CTX100-2-52M-R 5 24.0 35.4 21.7 26.0 23.0 15.4 1.20 1.45 CTX150-2-52M-R 5 30.6 31.0 16.0 32.5 20.3 10.2 1.20 1.45 CTX250-2-52M-R 5 31.2 35.4 21.7 33.4 23.0 15.4 1.20 1.45 CTX500-2-52M-R 5 36.7 31.0 16.0 38.4 20.3 10.2 1.20 1.45 CTX750-2-52M-R 5 43.3 35.4 21.7 45.4 23.0 15.4 1.20 1.45 CTX10-5-52M-R 5 22.2 31.0 16.0 22.7 20.3 10.2 1.20 1.45 CTX20-5-52M-R 5 24.5 35.4 21.7 25.5 23.0 15.4 1.20 1.45 CTX50-5-52M-R 5 32.3 35.4 21.7 33.7 23.0 15.4 1.11 1.36 CTX100-5-52M-R 5 37.8 35.4 21.7 40.2 23.0 15.4 1.24 1.49 CTX150-5-52M-R 5 46.4 35.4 21.7 47.0 23.0 15.4 1.24 1.49 CTX10-7-52M-R 5 25.7 35.4 21.7 26.7 23.0 15.4 1.38 1.63 CTX20-7-52M-R 5 32.4 35.4 21.7 34.2 23.0 15.4 1.38 1.63 CTX50-7-52M-R 5 39.0 35.4 21.7 40.3 23.0 15.4 1.38 1.63 Note: All dimensions are in millimeters.
FIGURE 3 FIGURE 4 FIGURE 5 CONNECTION DIAGRAM
A OD OD 2 3 1 B C C 1 4 3 4.0 +//-- 1 4. 4.2 25 5+/ +/-- 1.5 1 1.0 .00 diia. a. (typ.) C A A 3.8 +//-- 1 1 4 0 0.5 .50 diia. a. 1 4 (typ.) B B 2 3 0 0.70 .70d dia. ia. ((typ. typ.) 2 Pins 1 & 3: T diia. a. 3 2 3 Pins 2 & 4: 1 1.2 .20 diia. a. Holes 1 & 3: H d dia. ia. 1 1.25 .25d diia. a. (typ.) Holes 2 & 4: 1..45 45 d dia. ia. Y 2 3 2 3 Y Y 1 4 1 4 1 4 X X X
HEADER MOUNT
Drawings are not to scale. Figure4 4 www.eaton.com/electronics Document Outline Blank Page
