MAX9075/MAX9077. Low-Cost, Ultra-Small, 3µA. Single-Supply Comparators. Typical Operating Characteristics (continued)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

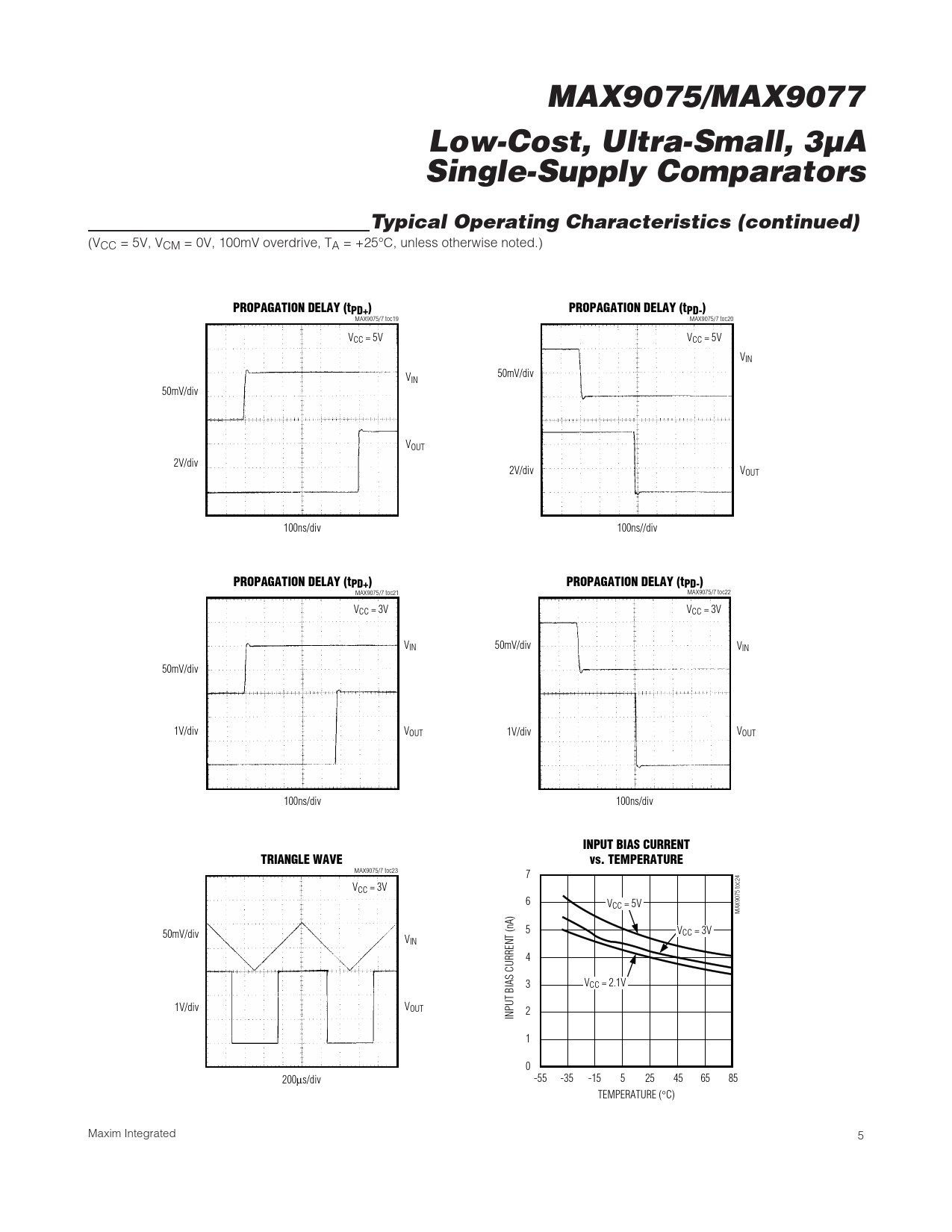

MAX9075/MAX9077 Low-Cost, Ultra-Small, 3µA Single-Supply Comparators Typical Operating Characteristics (continued)
(VCC = 5V, VCM = 0V, 100mV overdrive, TA = +25°C, unless otherwise noted.)
PROPAGATION DELAY (tPD+) PROPAGATION DELAY (tPD-)
MAX9075/7 toc19 MAX9075/7 toc20 VCC = 5V VCC = 5V VIN V 50mV/div IN 50mV/div VOUT 2V/div 2V/div VOUT 100ns/div 100ns//div
PROPAGATION DELAY (tPD+) PROPAGATION DELAY (tPD-)
MAX9075/7 toc21 MAX9075/7 toc22 VCC = 3V VCC = 3V VIN 50mV/div VIN 50mV/div 1V/div VOUT 1V/div VOUT 100ns/div 100ns/div
INPUT BIAS CURRENT TRIANGLE WAVE vs. TEMPERATURE
MAX9075/7 toc23 7 VCC = 3V 6 VCC = 5V MAX9075 toc24 50mV/div 5 VCC = 3V VIN 4 3 VCC = 2.1V 1V/div VOUT 2 INPUT BIAS CURRENT (nA) 1 0 200μs/div -55 -35 -15 5 25 45 65 85 TEMPERATURE (°C) Maxim Integrated 5
