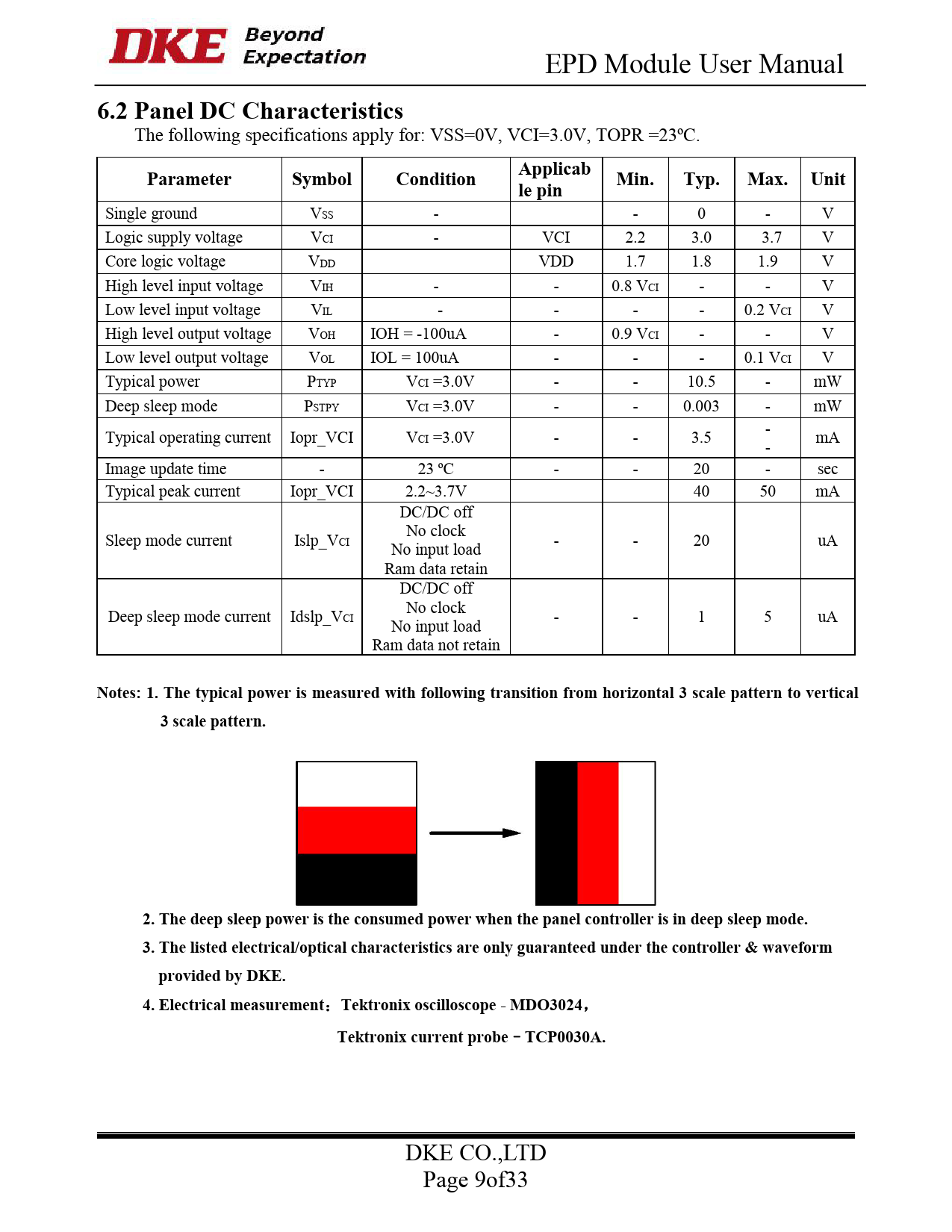

EPD Module User Manual
6.2 Panel DC Characteristics
The following specifications apply for: VSS=0V, VCI=3.0V, TOPR =23ºC.
Parameter Symbol Condition Applicab le pin Min. Typ. Max. Unit
Single ground VSS - - 0 - V Logic supply voltage VCI - VCI 2.2 3.0 3.7 V Core logic voltage VDD VDD 1.7 1.8 1.9 V High level input voltage VIH - - 0.8 VCI - - V Low level input voltage VIL - - - - 0.2 VCI V High level output voltage VOH IOH = -100uA - 0.9 VCI - - V Low level output voltage VOL IOL = 100uA - - - 0.1 VCI V Typical power PTYP VCI =3.0V - - 10.5 - mW Deep sleep mode PSTPY VCI =3.0V - - 0.003 - mW Typical operating current Iopr_VCI VCI =3.0V - - 3.5 - - mA Image update time - 23 ºC - - 20 - sec Typical peak current Iopr_VCI 2.2~3.7V 40 50 mA DC/DC off Sleep mode current Islp_V No clock CI No input load - - 20 uA Ram data retain DC/DC off Deep sleep mode current Idslp_V No clock CI No input load - - 1 5 uA Ram data not retain
Notes: 1. The typical power is measured with following transition from horizontal 3 scale pattern to vertical 3 scale pattern. 2. The deep sleep power is the consumed power when the panel controller is in deep sleep mode. 3. The listed electrical/optical characteristics are only guaranteed under the controller & waveform provided by DKE. 4. Electrical measurement
：
Tektronix oscilloscope - MDO3024
，
Tektronix current probe
–
TCP0030A.
