Single/Dual, Ultra-Fast, Low-Power. Precision TTL Comparators. MAX912/MAX913. ELECTRICAL CHARACTERISTICS (continued). PARAMETER
Modelllinie für dieses Datenblatt
Textversion des Dokuments

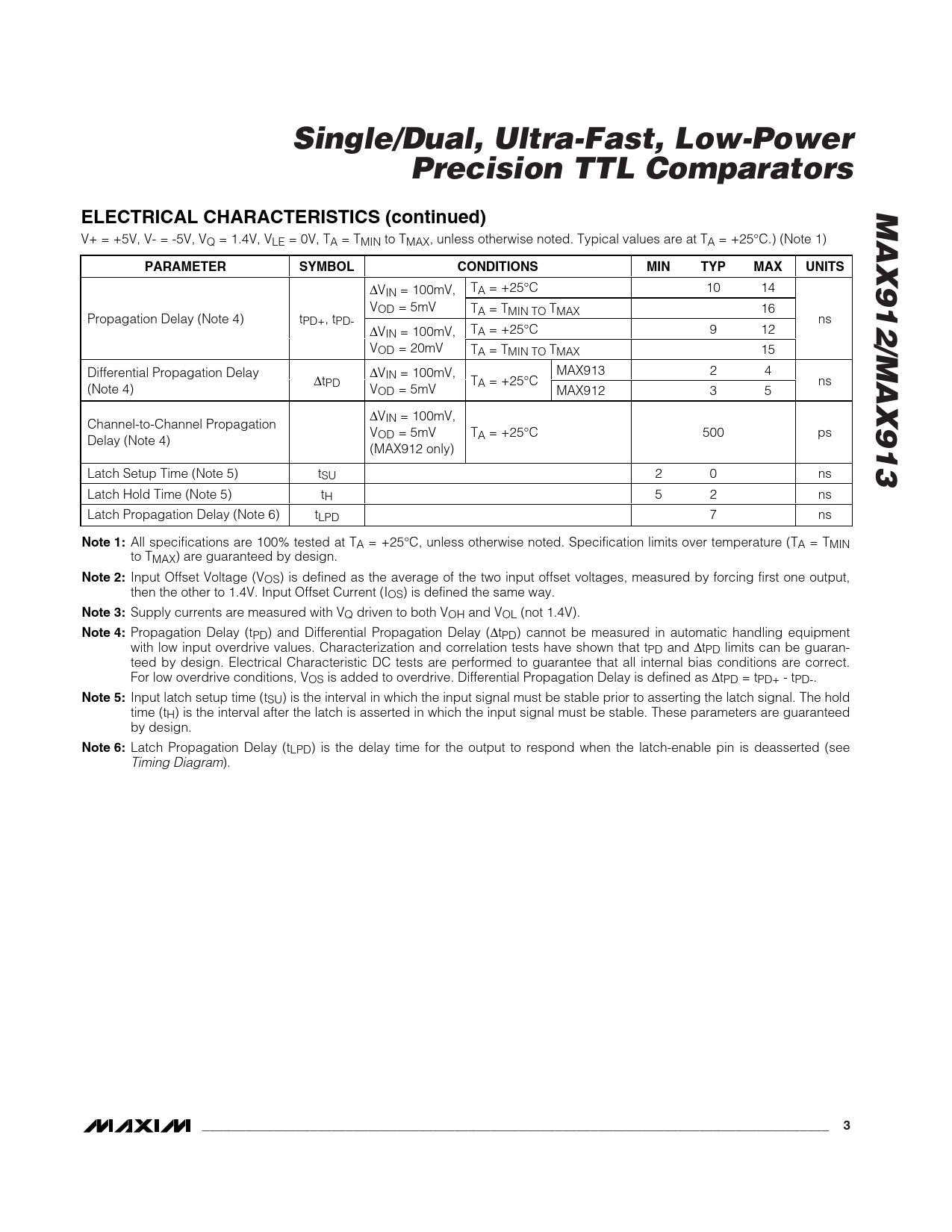

Single/Dual, Ultra-Fast, Low-Power Precision TTL Comparators MAX912/MAX913 ELECTRICAL CHARACTERISTICS (continued)
V+ = +5V, V- = -5V, VQ = 1.4V, VLE = 0V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
TA = +25°C 10 14 ∆VIN = 100mV, VOD = 5mV TA = TMIN TO TMAX 16 Propagation Delay (Note 4) tPD+, tPD- ns T ∆V A = +25°C 9 12 IN = 100mV, VOD = 20mV TA = TMIN TO TMAX 15 Differential Propagation Delay MAX913 2 4 ∆ ∆V t IN = 100mV, PD TA = +25°C ns (Note 4) VOD = 5mV MAX912 3 5 ∆VIN = 100mV, Channel-to-Channel Propagation VOD = 5mV T Delay (Note 4) A = +25°C 500 ps (MAX912 only) Latch Setup Time (Note 5) tSU 2 0 ns Latch Hold Time (Note 5) tH 5 2 ns Latch Propagation Delay (Note 6) tLPD 7 ns
