v1.0. Package / Pinout Information. QFN Package Pin Out. INPUT. GATE. MIDPOINT. OUTPUT. Table 4. Pin #. Pin Name. Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
7 MM9200 - SPST Power Switch - Preliminary Datasheet | Nov. 30, 2022
v1.0 Package / Pinout Information
The MM9200 is available in QFN and low-profile 5 mm x 5 mm WL-CSP packaging options. The packages abide to IEC creepage guidelines.

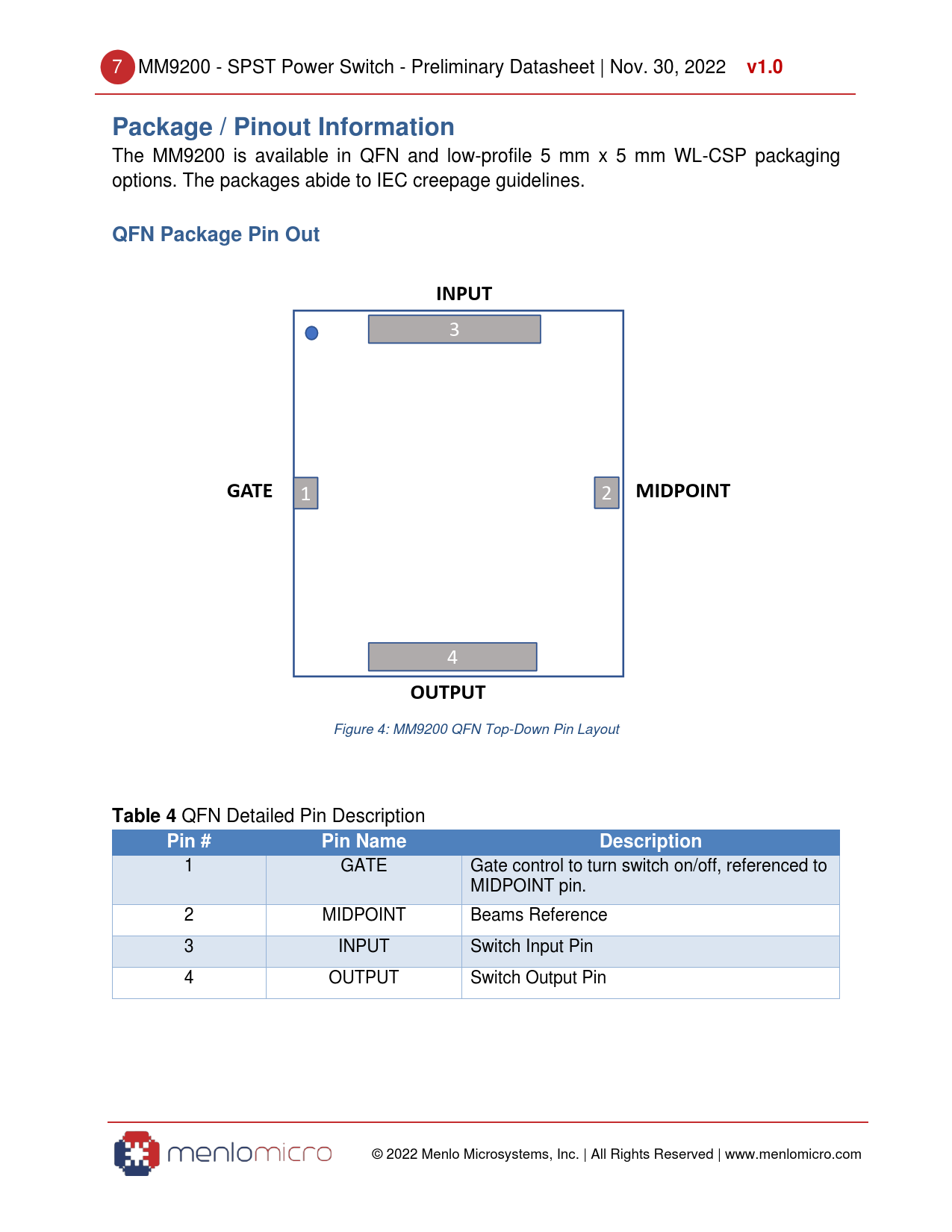

QFN Package Pin Out INPUT
3
GATE
1 2
MIDPOINT
4
OUTPUT
Figure 4: MM9200 QFN Top-Down Pin Layout
Table 4
QFN Detailed Pin Description
Pin # Pin Name Description
1 GATE Gate control to turn switch on/off, referenced to MIDPOINT pin. 2 MIDPOINT Beams Reference 3 INPUT Switch Input Pin 4 OUTPUT Switch Output Pin © 2022 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
