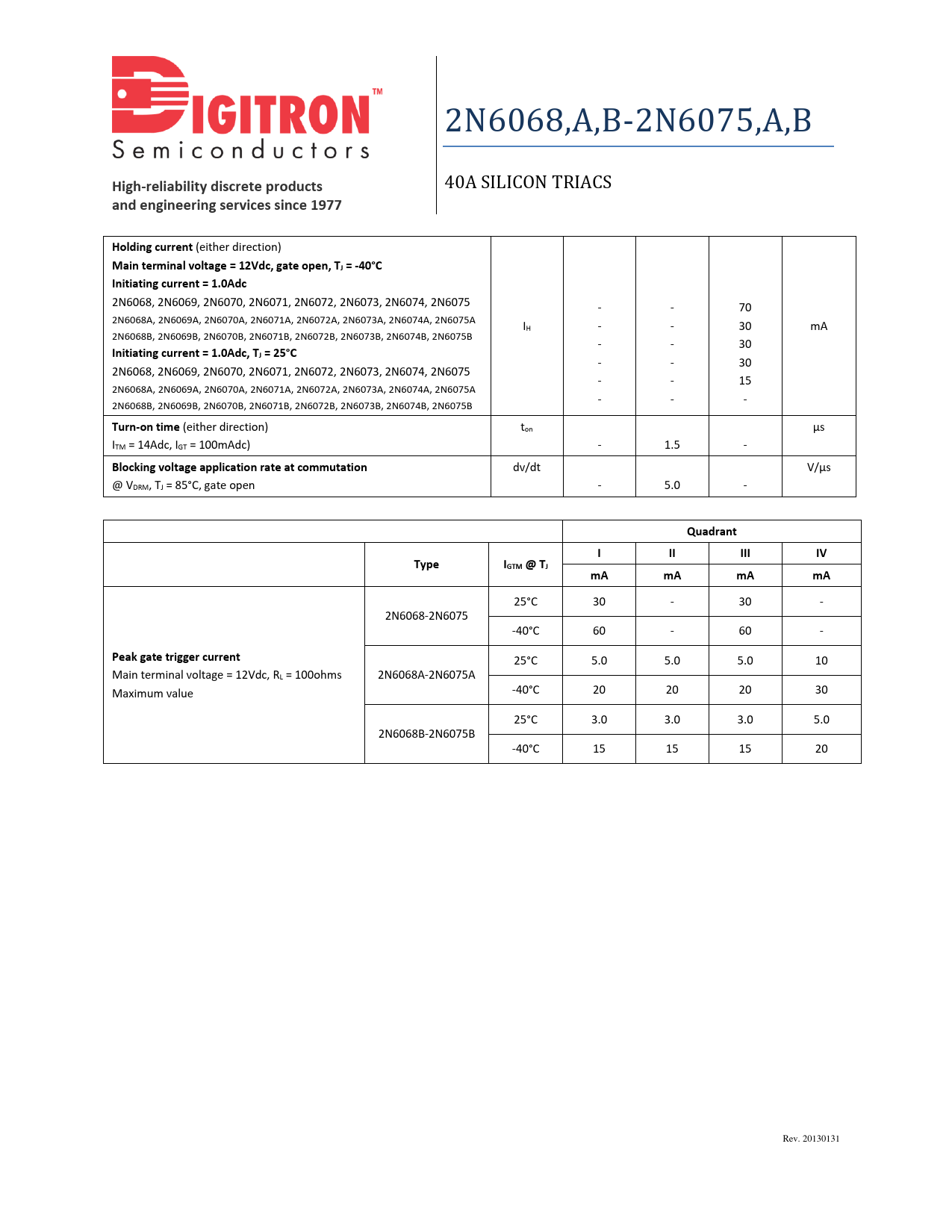

Datasheet 2N6068 - 2N6075B (Digitron Semiconductors) - 2

2N6068,A,B-2N6075,A,B
High-reliability discrete products
40A SILICON TRIACS
and engineering services since 1977 Holding current
(either direction)
Main terminal voltage = 12Vdc, gate open, TJ = -40°C Initiating current = 1.0Adc
2N6068, 2N6069, 2N6070, 2N6071, 2N6072, 2N6073, 2N6074, 2N6075 - - 70 2N6068A, 2N6069A, 2N6070A, 2N6071A, 2N6072A, 2N6073A, 2N6074A, 2N6075A IH - - 30 mA 2N6068B, 2N6069B, 2N6070B, 2N6071B, 2N6072B, 2N6073B, 2N6074B, 2N6075B - - 30
Initiating current = 1.0Adc, TJ = 25°C
- - 30 2N6068, 2N6069, 2N6070, 2N6071, 2N6072, 2N6073, 2N6074, 2N6075 - - 15 2N6068A, 2N6069A, 2N6070A, 2N6071A, 2N6072A, 2N6073A, 2N6074A, 2N6075A - - - 2N6068B, 2N6069B, 2N6070B, 2N6071B, 2N6072B, 2N6073B, 2N6074B, 2N6075B
Turn-on time
(either direction) ton µs ITM = 14Adc, IGT = 100mAdc) - 1.5 -
Blocking voltage application rate at commutation
dv/dt V/µs @ VDRM, TJ = 85°C, gate open - 5.0 -
Quadrant I II III IV Type IGTM @ TJ mA mA mA mA
25°C 30 - 30 - 2N6068-2N6075 -40°C 60 - 60 -
Peak gate trigger current
25°C 5.0 5.0 5.0 10 Main terminal voltage = 12Vdc, RL = 100ohms 2N6068A-2N6075A Maximum value -40°C 20 20 20 30 25°C 3.0 3.0 3.0 5.0 2N6068B-2N6075B -40°C 15 15 15 20 Rev. 20130131
