Datasheet SFH610A, SFH6106 (Vishay)
| Hersteller | Vishay |
| Beschreibung | Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS |
| Seiten / Seite | 9 / 1 — SFH610A, SFH6106. Optocoupler, Phototransistor Output, High Reliability, … |
| Dateiformat / Größe | PDF / 178 Kb |
| Dokumentensprache | Englisch |
SFH610A, SFH6106. Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS. FEATURES. DESCRIPTION. AGENCY APPROVALS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

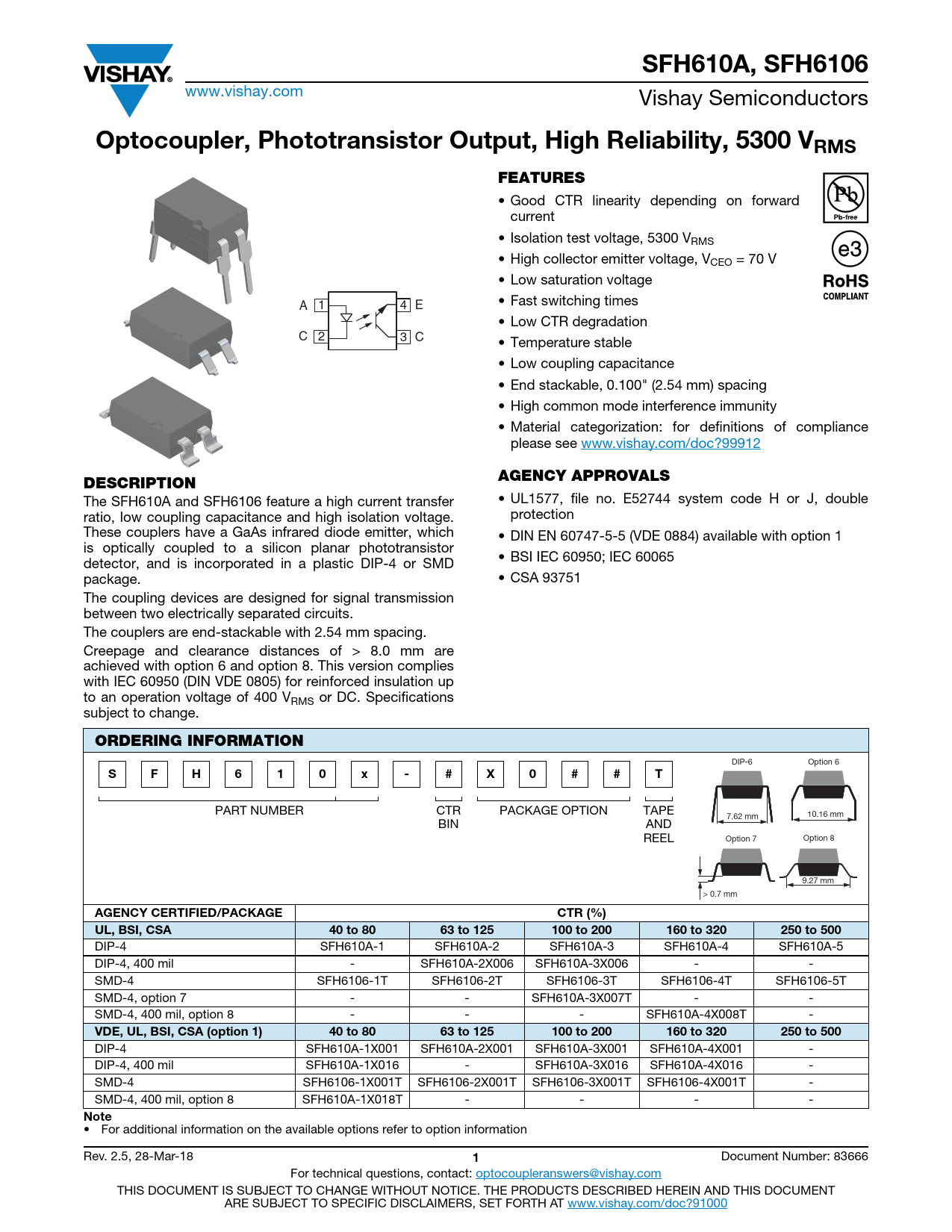

SFH610A, SFH6106
www.vishay.com Vishay Semiconductors
Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS FEATURES
• Good CTR linearity depending on forward current • Isolation test voltage, 5300 VRMS • High collector emitter voltage, VCEO = 70 V • Low saturation voltage • Fast switching times A 1 4 E • Low CTR degradation C 2 3 C • Temperature stable • Low coupling capacitance • End stackable, 0.100" (2.54 mm) spacing • High common mode interference immunity • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
DESCRIPTION AGENCY APPROVALS
The SFH610A and SFH6106 feature a high current transfer • UL1577, file no. E52744 system code H or J, double ratio, low coupling capacitance and high isolation voltage. protection These couplers have a GaAs infrared diode emitter, which • DIN EN 60747-5-5 (VDE 0884) available with option 1 is optically coupled to a silicon planar phototransistor • BSI IEC 60950; IEC 60065 detector, and is incorporated in a plastic DIP-4 or SMD package. • CSA 93751 The coupling devices are designed for signal transmission between two electrically separated circuits. The couplers are end-stackable with 2.54 mm spacing. Creepage and clearance distances of > 8.0 mm are achieved with option 6 and option 8. This version complies with IEC 60950 (DIN VDE 0805) for reinforced insulation up to an operation voltage of 400 V RMS or DC. Specifications subject to change.
ORDERING INFORMATION
DIP-6 Option 6
S F H 6 1 0 x - # X 0 # # T
PART NUMBER CTR PACKAGE OPTION TAPE 10.16 mm 7.62 mm BIN AND REEL Option 7 Option 8 9.27 mm > 0.7 mm
AGENCY CERTIFIED/PACKAGE CTR (%) UL, BSI, CSA 40 to 80 63 to 125 100 to 200 160 to 320 250 to 500
DIP-4 SFH610A-1 SFH610A-2 SFH610A-3 SFH610A-4 SFH610A-5 DIP-4, 400 mil - SFH610A-2X006 SFH610A-3X006 - - SMD-4 SFH6106-1T SFH6106-2T SFH6106-3T SFH6106-4T SFH6106-5T SMD-4, option 7 - - SFH610A-3X007T - - SMD-4, 400 mil, option 8 - - - SFH610A-4X008T -
VDE, UL, BSI, CSA (option 1) 40 to 80 63 to 125 100 to 200 160 to 320 250 to 500
DIP-4 SFH610A-1X001 SFH610A-2X001 SFH610A-3X001 SFH610A-4X001 - DIP-4, 400 mil SFH610A-1X016 - SFH610A-3X016 SFH610A-4X016 - SMD-4 SFH6106-1X001T SFH6106-2X001T SFH6106-3X001T SFH6106-4X001T - SMD-4, 400 mil, option 8 SFH610A-1X018T - - - -
Note
• For additional information on the available options refer to option information Rev. 2.5, 28-Mar-18
1
Document Number: 83666 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
