Datasheet VNF1048F (STMicroelectronics) - 5
| Hersteller | STMicroelectronics |
| Beschreibung | High-side switch Controller with intelligent fuse protection for 12 V, 24 V and 48 V automotive applications |
| Seiten / Seite | 52 / 5 — VNF1048F. Thermal data. Symbol. Parameter. Value. Unit. 2.2. Table 3. … |
| Dateiformat / Größe | PDF / 2.6 Mb |
| Dokumentensprache | Englisch |

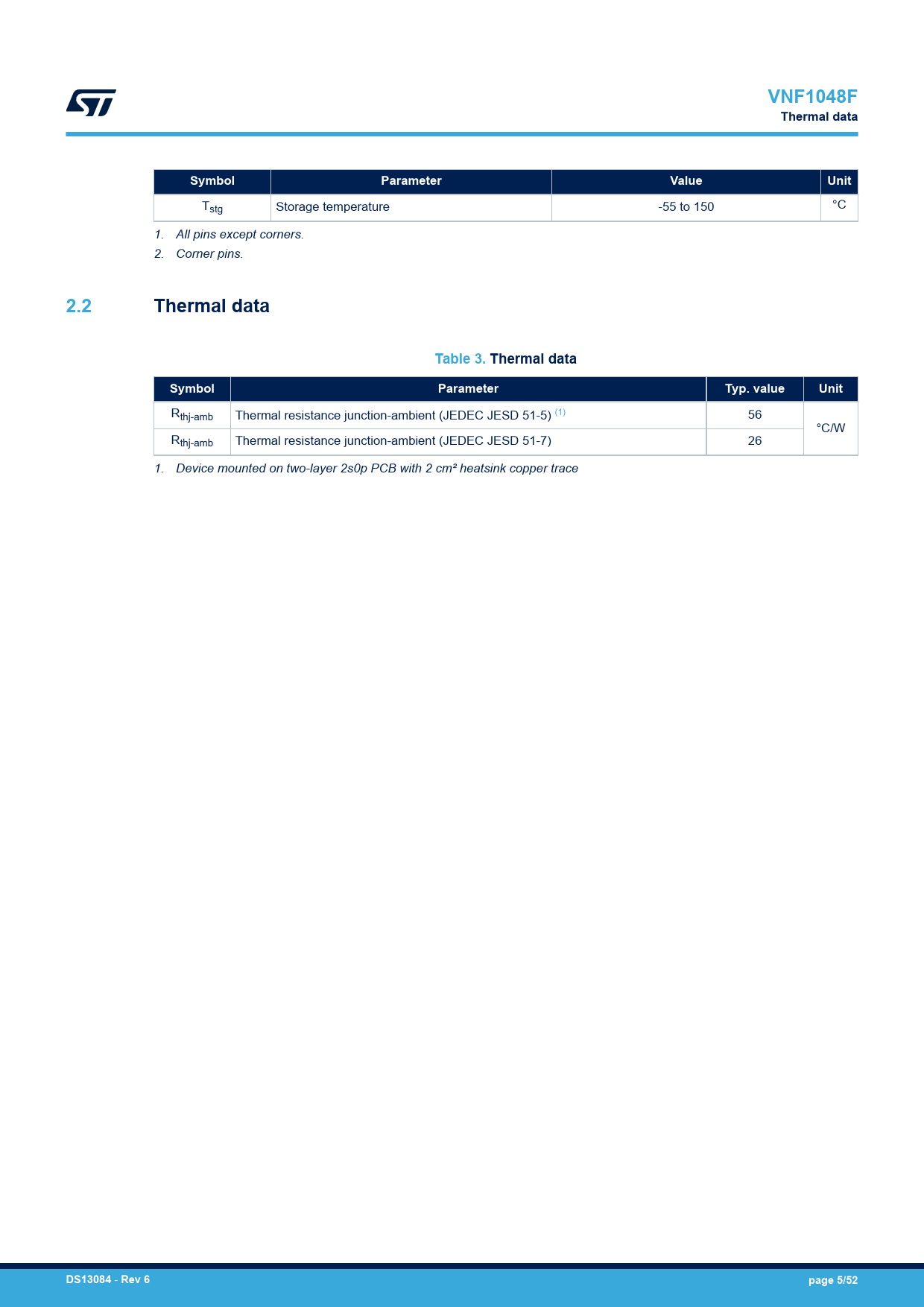

VNF1048F. Thermal data. Symbol. Parameter. Value. Unit. 2.2. Table 3. Thermal data. Typ. value. DS13084. Rev 6. page 5/52
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5
VNF1048F Thermal data Symbol Parameter Value Unit
Tstg Storage temperature -55 to 150 °C 1. All pins except corners. 2. Corner pins.
2.2 Thermal data Table 3. Thermal data Symbol Parameter Typ. value Unit
Rthj-amb Thermal resistance junction-ambient (JEDEC JESD 51-5) (1) 56 °C/W Rthj-amb Thermal resistance junction-ambient (JEDEC JESD 51-7) 26 1. Device mounted on two-layer 2s0p PCB with 2 cm² heatsink copper trace
