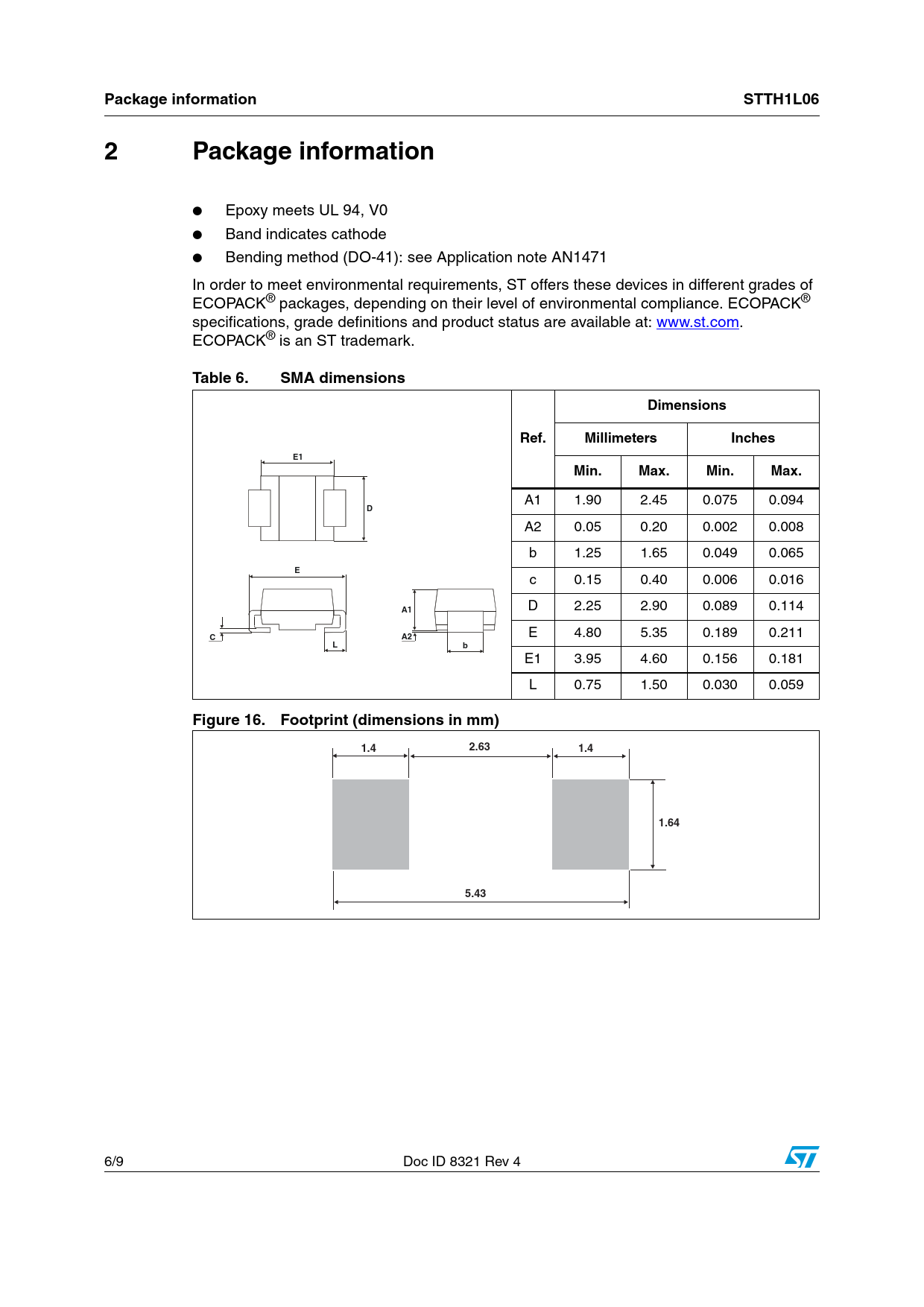

Package information. STTH1L06. 2 Package. information. Table 6. SMA dimensions. Dimensions. Ref. Millimeters. Inches. Min. Max. Figure 16
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Package information STTH1L06 2 Package information
● Epoxy meets UL 94, V0 ● Band indicates cathode ● Bending method (DO-41): see Application note AN1471 In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.
Table 6. SMA dimensions Dimensions Ref. Millimeters Inches E1 Min. Max. Min. Max.
A1 1.90 2.45 0.075 0.094
D
A2 0.05 0.20 0.002 0.008 b 1.25 1.65 0.049 0.065
E
c 0.15 0.40 0.006 0.016
A1
D 2.25 2.90 0.089 0.114 E 4.80 5.35 0.189 0.211
C A2 L b
E1 3.95 4.60 0.156 0.181 L 0.75 1.50 0.030 0.059
Figure 16. Footprint (dimensions in mm) 1.4 2.63 1.4 1.64 5.43
