Datasheet MAX4173 (Maxim) - 9
| Hersteller | Maxim |
| Beschreibung | Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier |
| Seiten / Seite | 10 / 9 — Low-Cost, SOT23, Voltage-Output,. High-Side Current-Sense Amplifier. Pin … |
| Dateiformat / Größe | PDF / 497 Kb |
| Dokumentensprache | Englisch |
Low-Cost, SOT23, Voltage-Output,. High-Side Current-Sense Amplifier. Pin Configurations. SOT23. Package Information
Modelllinie für dieses Datenblatt
Textversion des Dokuments
MAX4173

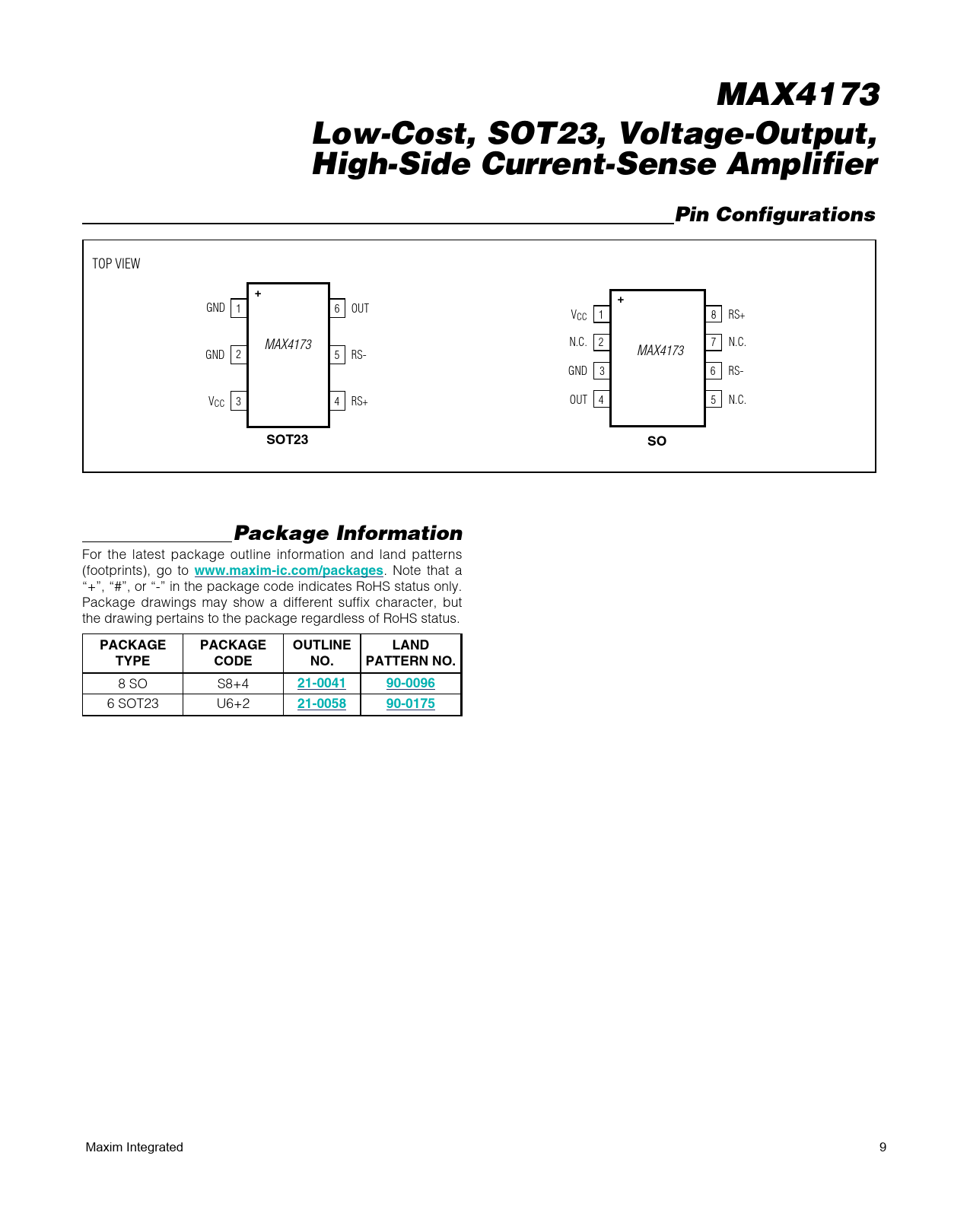

Low-Cost, SOT23, Voltage-Output, High-Side Current-Sense Amplifier Pin Configurations
TOP VIEW
+ +
GND 1 6 OUT VCC 1 8 RS+ N.C. 2 7 N.C. MAX4173 MAX4173 GND 2 5 RS- GND 3 6 RS- VCC 3 4 RS+ OUT 4 5 N.C.
SOT23 SO Package Information
For the latest package outline information and land patterns (footprints), go to
www.maxim-ic.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
PACKAGE PACKAGE OUTLINE LAND TYPE CODE NO. PATTERN NO.
8 SO S8+4
21-0041 90-0096
6 SOT23 U6+2
21-0058 90-0175
Maxim Integrated 9
